1963 Dart engine to Bell bracket and question about Z-bar

[omotz]

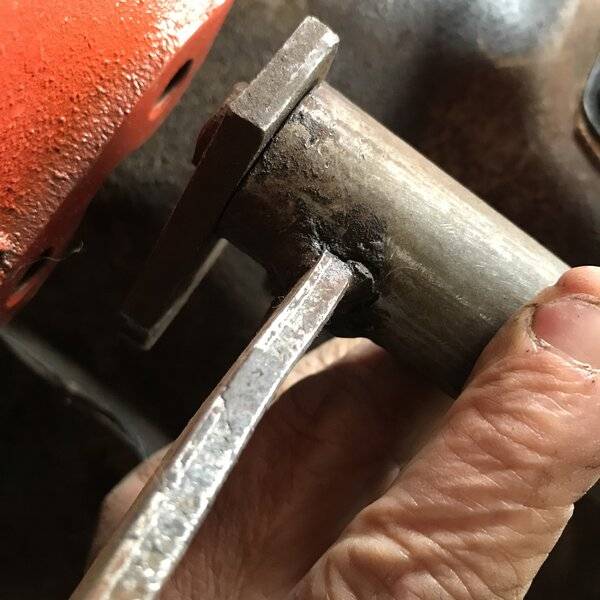

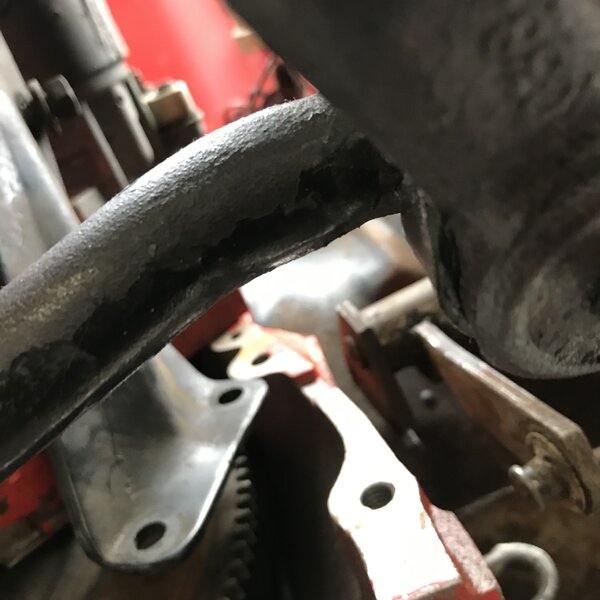

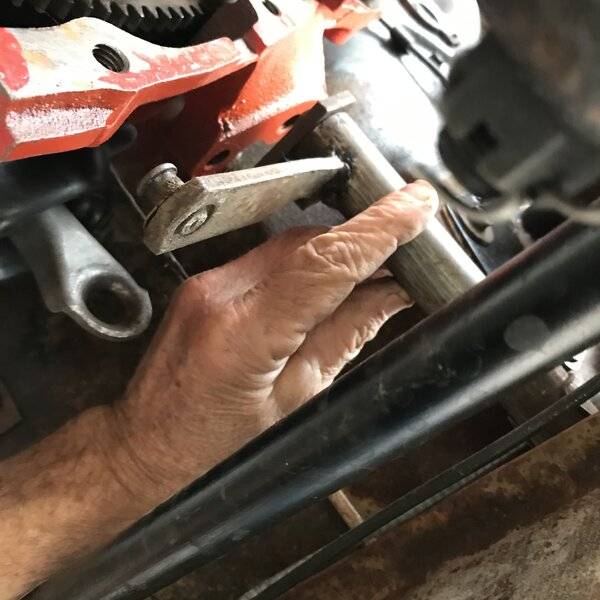

Not sure what the bracket is called but the one that I had on the 170 with the three speed manual does not line up on the four speed bill housing that I am now using. Also, I’m wondering if I can use any part of my Z-bar assembly or if I have to replace it all? As always, thanks in advance.



[Killer6]

Not sure what the bracket is called but the one that I had on the 170 with the three speed manual does not line up on the four speed bill housing that I am now using. Also, I’m wondering if I can use any part of my Z-bar assembly or if I have to replace it all? As always, thanks in advance.

View attachment 1716320471

View attachment 1716320472

View attachment 1716320473

View attachment 1716320474

Yeah, You need to get the brace that came w/that bell, what year/body did that come out of?? The ball-pivot on the bell needs to be changed,..or modified, the bellcrank(Mopar's term)/Z-bar should be left where it is.
