1967 Barracuda Fuel Filler Neck Trunk floor gasket

[toomanyfish]

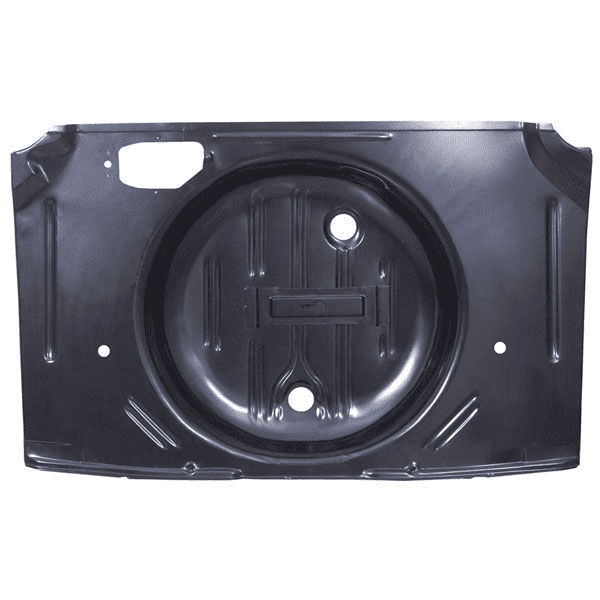

I am putting a 1967 Barracuda fastback back together. I put in a new trunk floor from AMD and take note of the hole for the fuel neck, some sort of polygon.

I bought a fill filler neck gasket to seal around the hole, and it is no where close to fitting. Maybe it is for a rear filler neck on a valiant, but it does not fit a fastback 67 Barracuda.

Does anyone know of a supplier for a gasket that will fit the hole I have?



[A56]

From AMD

>>>>>>>>>>>Please note: Must use large 70-74 model fuel filler tube to trunk floor seal (part# F-307R) when installing this item.



[matthon]

My understanding is the AMD floor is actually a 68-69, which uses 2 gas tank straps, not the 1 that the 67 uses.



[toomanyfish]

Thanks for the heads up on the AMD part. I installed the AMD floor, and used the existing one strap with a new gas tank and it worked/fit fine. Have not tried to fit the filler neck in yet, but need the gasket before fitting that in.



[4spdragtop]

@moparmat2000 figured a "workaround" for this.



[moparmat2000]

Thanks for the kudos Steve.
Look into my build thread

67,68,69 cuda dilemma

It's at top of page 23 in the thread with the trunk floor install. I did not want to use the 1970 up filler neck gasket. It's a minor modification the the new pan. Plus filling and redrilling a few holes. You will need the old section of floor in that area as a template. Lots of good information in this build you can use.

Hope this helps
Matt
