1967 only SB right side engine mount bracket vs 68-72

[Cuda Al]

The 1967 right side engine mount bracket 2843224 is different than the 68-72 2863443
Both brackets will work and 273/318 from 67-72 but the 2863443 must be used on the 340.
The only difference is the addition of a hole, otherwise the bracket is the same.

Top 1967

The reason for this was that the 340 flange was different, I was told it might have been because of the thinner block on the 340 (likewise with the change on the left).

1967 273

1969 340

Alan



[RAT ROD AL]

Hey Al, just for the record and me ! Is this for the right side of a 340 ?



[Cuda Al]

Hey Al, just for the record and me ! Is this for the right side of a 340 ?

This is for the right side, lots of talk about the special 340 left mount.
This one should be easy to get as it is the same on all 273/318/340 from 68-72 (a-body)

The one with 4 holes is the one you need for the 340, no options there, that is why the 4th hole was added.


Alan



[Dana67Dart]

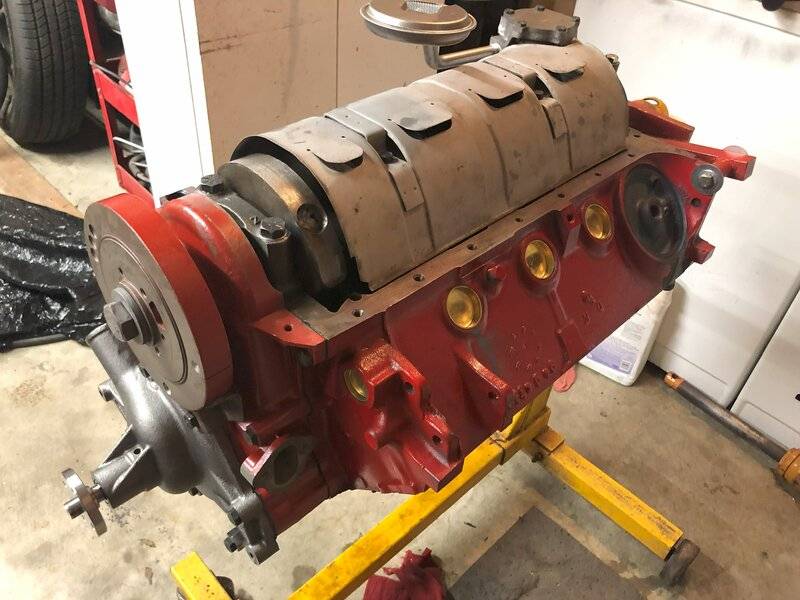

looks like they moved a freeze/core plug blue arrows



[Cuda Al]

looks like they moved a freeze/core plug blue arrows
View attachment 1716295539

The larger bore probably left no room for it. The freeze plug had to go between the cylinders leaving no room for the flange to be extended.


Alan
