Hi guys, I have a 68 Barracuda hood with no signal lights and I would like to add them. I'm looking for measurements on where to drill holes to mount them. Anyone know? Thank you in advance, Mike.
1968 Barracuda hood signal mounting location
- Thread starter wolfhammer
- Start date
-
They go on the front corners of the hood...
Sorry, I can't get a picture for you, my hood is buried too deep for me to get to right now...
wolfhammer
Well-Known Member
Thanks krazykuda, just need the measurement from the front edge and side edge of the hood to the center of the hole where the light plugs in
Not sure how different 68 is from 69, I think the indicators are different but location should be close.
wolfhammer
Well-Known Member
Thanks, is the 1st photo 4" from the front of the hood?
Just under 2.25
wolfhammer
Well-Known Member
I'm adding turn signal indicators to a 68 Barracuda hood that never had them and wondering if anyone can give me the location measurements. Measuring from the hood side edge to the bezel and from the front edge of the hood to the bezel. I did get the measurements for a 69 but the lights are different than the 68 photo shows what I have........thanks
wolfhammer
Well-Known Member
Cool, thank you
wolfhammer
Well-Known Member
NICE, I think I'm seeing 2 1/2" from the front and about 1 1/8" from the side if I'm correct?
Thank you so much Darren

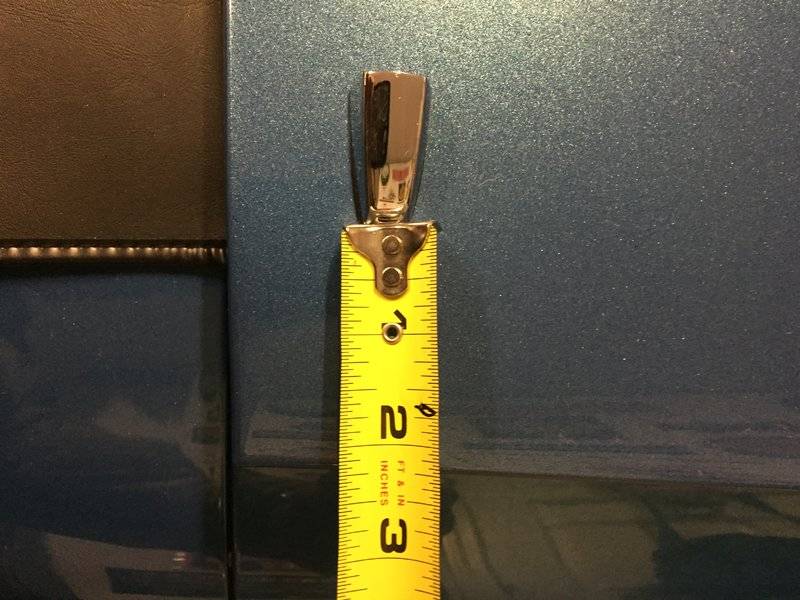

Yes on first picture measurement 2 1/2"
From (front) side of light to edge of hood (first picture ) 1 3/16"

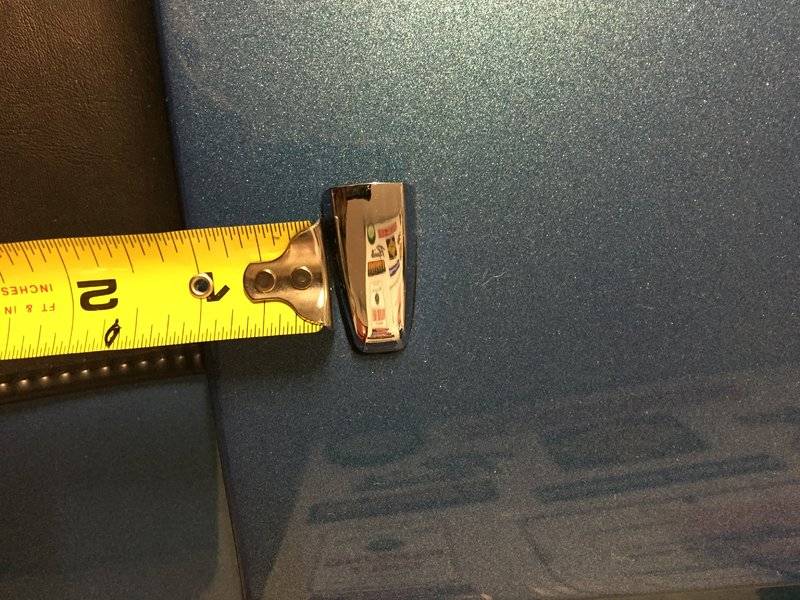

From (back) side of light to edge of hood ( second pic) 1 1/6"
The reason for different measurements if because the light is tapered towards the front of light.
From (front) side of light to edge of hood (first picture ) 1 3/16"
From (back) side of light to edge of hood ( second pic) 1 1/6"
The reason for different measurements if because the light is tapered towards the front of light.
wolfhammer
Well-Known Member
Got it Darren, thank you
-
