340 4 barrel automatic kickdown lever/rod

Fuel and Air Systems

  1. C2ndLTpigeon

    C2ndLTpigeon Mopar or no Car! FABO Gold Member

    Messages:
    347
    Likes Received:
    80
    Joined:
    May 18, 2019
    Location:
    Indio California
    Local Time:
    6:30 PM
    Yup that looks like it!

  2. rlcbit

    rlcbit FABO Gold Member FABO Gold Member

    Messages:
    1,685
    Likes Received:
    243
    Joined:
    Dec 21, 2012
    Location:
    Paducah. KY.
    Local Time:
    8:30 PM

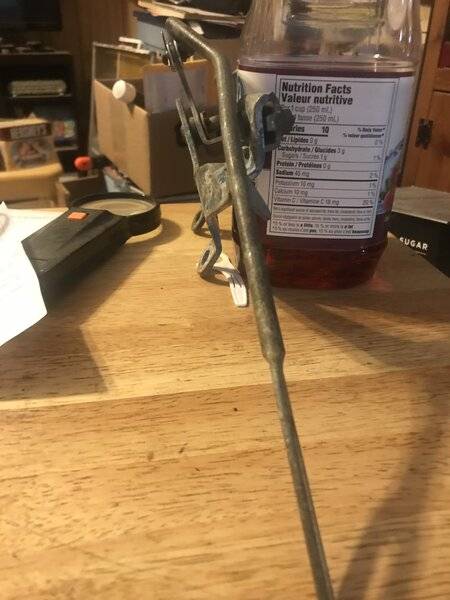

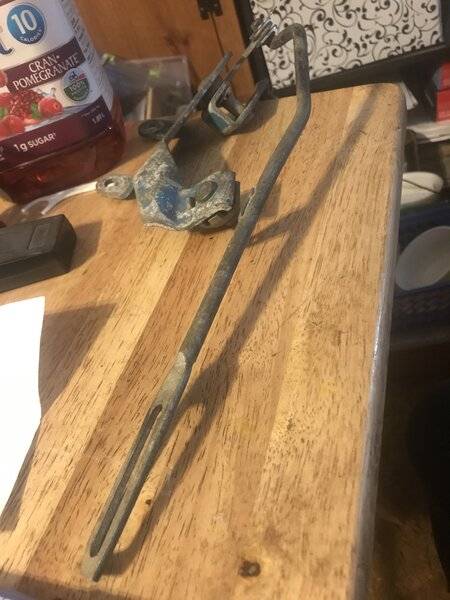

    This one was on big block dart. $100 + shipping

  3. Johnny Dart

    Johnny Dart Well-Known Member

    Messages:
    8,031
    Likes Received:
    2635
    Joined:
    Nov 30, 2006
    Location:
    So Cal
    Local Time:
    6:30 PM
    Yes and No.

    If the kd rod along the firewall has an adjuster, ( which I believe I can see on the posters car)you do not need the rod at the carb to be adjustable. I guess I'm speaking
    Pig Latin. :realcrazy:

    faucet pics 832.jpg


    Last edited: Sep 15, 2020
    • Like Like x 1
    • oldkimmer

      oldkimmer FABO Gold Member FABO Gold Member

      Messages:
      17,714
      Likes Received:
      5528
      Joined:
      Nov 11, 2006
      Location:
      Kindersley, Saskatchewan,
      Local Time:
      8:30 PM
      Ya I hear ya. I just never tried it that way. Kim



      • Like Like x 1
      • C2ndLTpigeon

        C2ndLTpigeon Mopar or no Car! FABO Gold Member

        Messages:
        347
        Likes Received:
        80
        Joined:
        May 18, 2019
        Location:
        Indio California
        Local Time:
        6:30 PM
        I get what your saying, but look at the rod in your picture, that is the one I was originally looking for. That offset bend to the right is what I need. My rod will not work on either side of the cable bracket and line up with the post on the Carb even if the back linkage is raised or lowered.

      • Bigbeaver

        Bigbeaver Member

        Messages:
        11
        Likes Received:
        1
        Joined:
        Apr 19, 2009
        Location:
        Lethbridge
        Local Time:
        7:30 PM

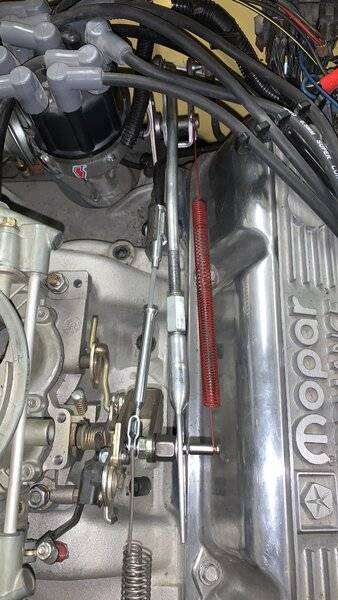

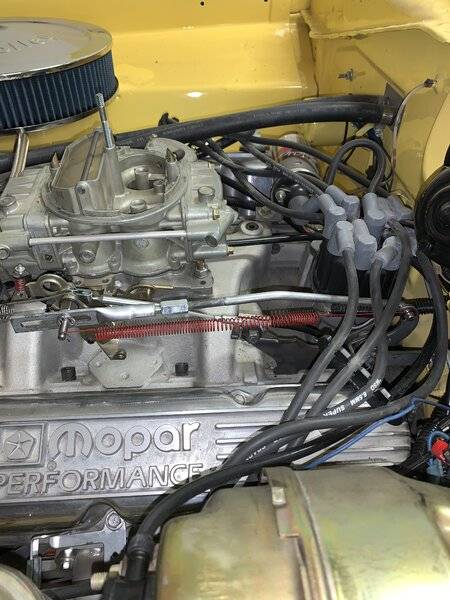

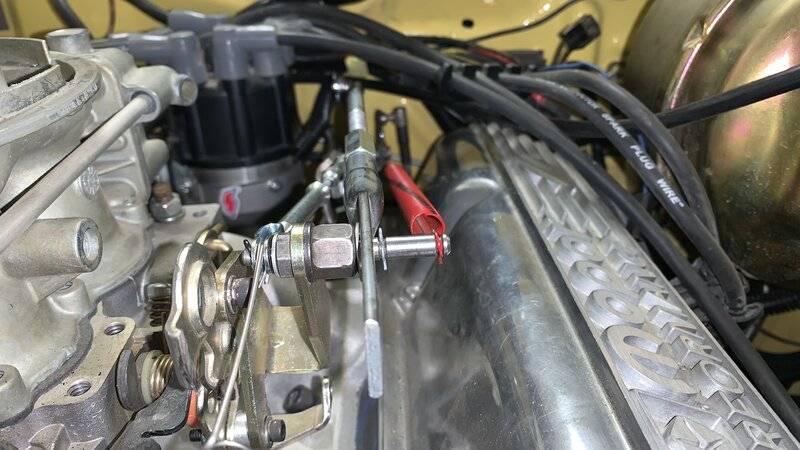

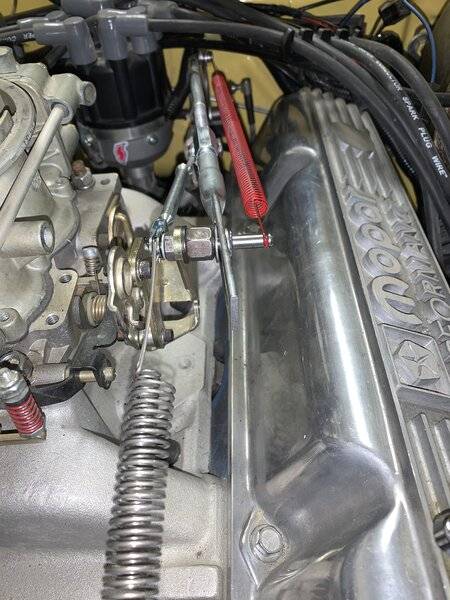

        B2D05DDA-F6E1-47C5-BCCA-721C506CAA52.jpeg 002F7CCD-D4C3-4FE9-8DE0-0AE8D97A4FA8.jpeg 8C79FBBD-242C-407C-8161-2E4333E0A8A8.jpeg Hoping you kickdown guys can provide your input. I believe I have all the correct 340 4bbl linkage, excluding the my 2bbl throttle rod, which I have extended. My question is the angle of the rod and if this will work well. Anyone seen a setup like this or do I need the correct 4bbl throttle rod. Thanks

      • George Jets

        George Jets 1967 Dart 2 Door FABO Gold Member

        Messages:
        3,854
        Likes Received:
        5425
        Joined:
        Jan 18, 2019
        Location:
        Farmington MN
        Local Time:
        8:30 PM

      • oldkimmer

        oldkimmer FABO Gold Member FABO Gold Member

        Messages:
        17,714
        Likes Received:
        5528
        Joined:
        Nov 11, 2006
        Location:
        Kindersley, Saskatchewan,
        Local Time:
        8:30 PM
        U get the tight 4bbl rod. Kim

      • Bigbeaver

        Bigbeaver Member

        Messages:
        11
        Likes Received:
        1
        Joined:
        Apr 19, 2009
        Location:
        Lethbridge
        Local Time:
        7:30 PM
        Thanks for the info, unfortunately, finding just that rod without having to purchase the whole set up seems to be near impossible. Anyone knows of one, please let me know. Have heard of plenty of guys on here modifying their 2bbl hardware by extending that rod. Was curious what issues they had

      • George Jets

        George Jets 1967 Dart 2 Door FABO Gold Member

        Messages:
        3,854
        Likes Received:
        5425
        Joined:
        Jan 18, 2019
        Location:
        Farmington MN
        Local Time:
        8:30 PM
        Just make one.

        Put the rear tail "L" on the one you got. Steel 5/16" rod from the hardward store bend and weld parts together.
        Don't have the skills or tools, visit your local iron fabriacator, friend with a welder, or auto body shop, and fabricate what you need.

        • Thanks! Thanks! x 1
        • Agree Agree x 1
        • H22A4

          H22A4 Does anyone read this?

          Messages:
          2,191
          Likes Received:
          1088
          Joined:
          Aug 4, 2006
          Location:
          YVR
          Local Time:
          6:30 PM

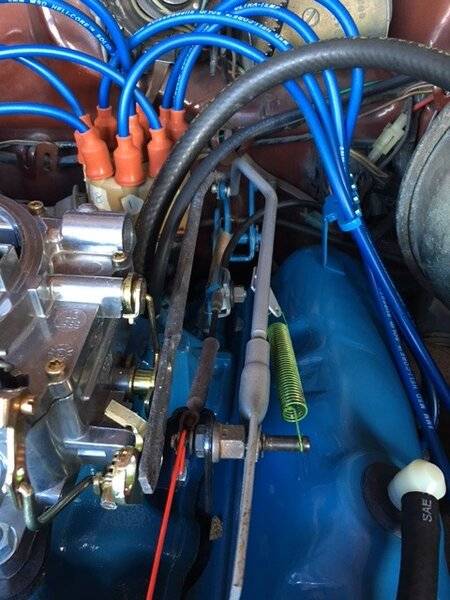

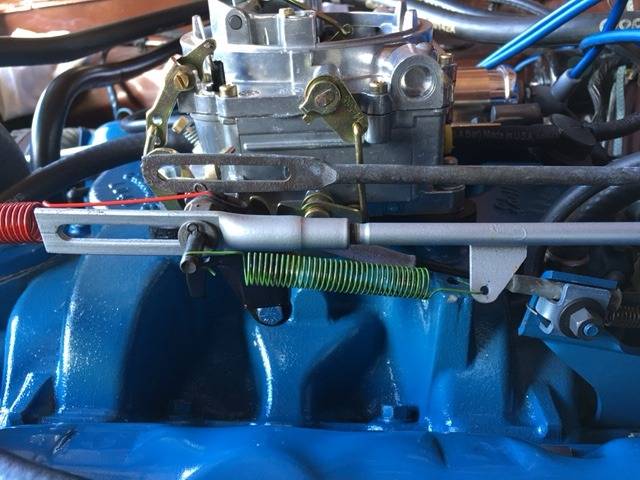

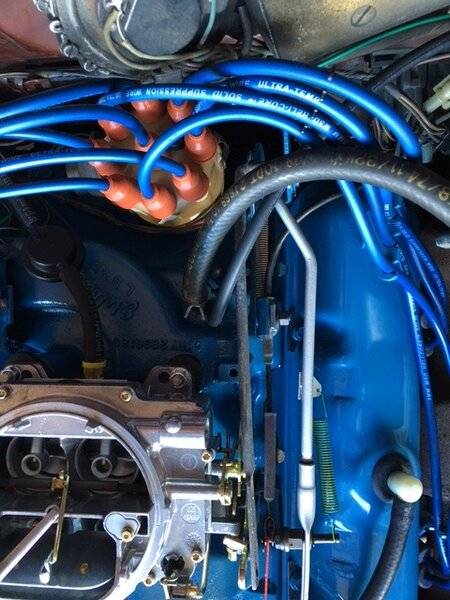

          As others have said, bend the rod out close to the throttle bracket and extend the rod further closer to the carb stud. Then you’re geometry will good.

          70CAF5E4-323A-4193-8D38-A2D56477802C.jpeg 50B7DA29-1D5A-4E70-BD46-6C0FC3F4CC36.jpeg

        • Bigbeaver

          Bigbeaver Member

          Messages:
          11
          Likes Received:
          1
          Joined:
          Apr 19, 2009
          Location:
          Lethbridge
          Local Time:
          7:30 PM
          Thanks for the bending advice, everything lines up nicely now.



        • lemondana

          lemondana BlackDart

          Messages:
          555
          Likes Received:
          342
          Joined:
          Dec 7, 2007
          Location:
          Southeast NE
          Local Time:
          8:30 PM
          All you need is a vice, hacksaw or sawzall, and a welder. I have both the AVS and TQ setups that I use for patterns. Bend the rod you have, to get the offset, cut the threads off, cut the threads plus 3/4" to 1" off of another 318 rod, weld together-make it look as pretty as you want. Cut a small tab for the spring and tack that on also..

          • Agree Agree x 1
          • oldkimmer

            oldkimmer FABO Gold Member FABO Gold Member

            Messages:
            17,714
            Likes Received:
            5528
            Joined:
            Nov 11, 2006
            Location:
            Kindersley, Saskatchewan,
            Local Time:
            8:30 PM
            Can u post both rods side by side for us. So we can see the difference. Thanks. Kim

          • crackedback

            crackedback FABO Gold Member FABO Gold Member

            Messages:
            18,837
            Likes Received:
            3241
            Joined:
            Aug 7, 2005
            Location:
            92201
            Local Time:
            6:30 PM
            Can you weld... simple fix!!!

          • lemondana

            lemondana BlackDart

            Messages:
            555
            Likes Received:
            342
            Joined:
            Dec 7, 2007
            Location:
            Southeast NE
            Local Time:
            8:30 PM
            I'll try to get some pictures. It will take a couple days to get everything rounded up.

          • str12-340

            str12-340 FABO Gold Member FABO Gold Member

            Messages:
            1,473
            Likes Received:
            860
            Joined:
            Dec 26, 2012
            Location:
            Vashon, WA
            Local Time:
            6:30 PM
            JUST BEND THE DAMNED ROD!!!! You are going to trash it if you buy something anyway, so put the thing in a vice, bend slowly, take your time, and make it the shape that you need. When I have used 318 rods in the past the first thing I did was reverse the existing bend so that the rod arches up not down with the end inserted from the outside (fender side), then bend the adjustable end of the rod an inch or so behind the threads to make it perpendicular to the shaft you are mounting to. There should be enough adjustment in the extension and the original adjustment threads to have it adjust the kickdown properly. The pivots are not at all a rigid fit so there's slop in all of them.

            Last edited: Nov 13, 2020
            • Thanks! Thanks! x 1
