67 Dart Wiper Motor Wiring diagram

[67DodgeDart360]

Hi, does anyone have a wiring diagram for a 67 Dodge Dart Wiper motor wiring? I want to know what wires are hot and what ones are a ground. I might need to buy a new wiring kit. What’s your thoughts on wire that’s falling apart. Thanks



[67Dart273]

You can download factory service manuals FREE at MyMopar. You might check both the 67, and the 68/ 69 manuals. Don't just go to the wiring diagrams, go to the wipers section text in the section 8 of the manual



[Mattax]

You can download factory service manuals FREE at MyMopar. You might check both the 67, and the 68/ 69 manuals. Don't just go to the wiring diagrams, go to the wipers section text in the section 8 of the manual

And 66.
Start by going here first and identifying which wiper and wiring is on your car.
Wiper Motor Wires
Then you have a chance of finding more in the shop manual.



[RedFish]

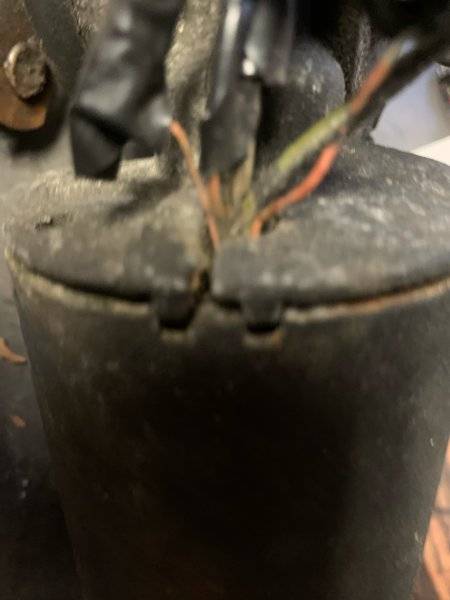

3 speed motors have some single strand resistor wires with asbestos/fiberglass casings. That stuff dry rots and falls off. That's what I think I'm seeing. Same as my leece-neville variable 3 speed on 67 fish.
The 2 speed motors had only 2 wires out of the motor. One resistor was at the switch until later models where it moved to mounted on the motor.
