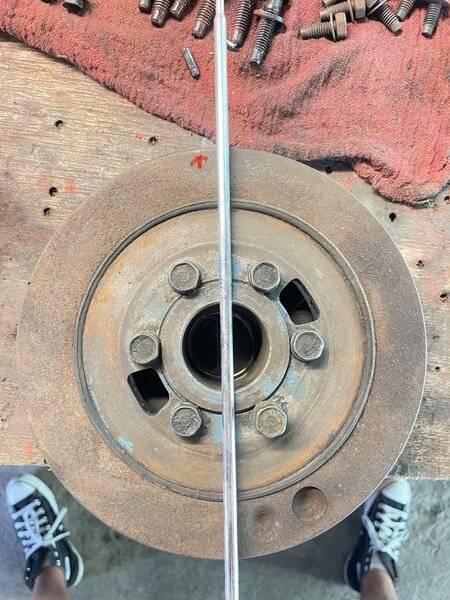

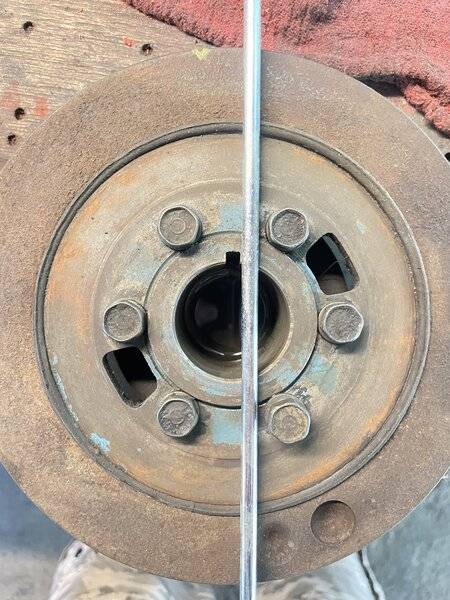

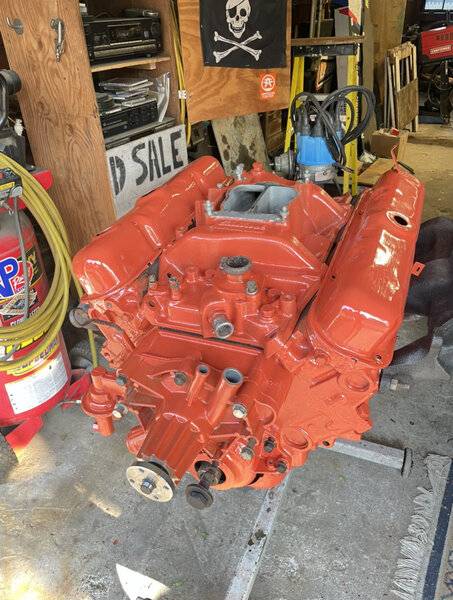

Can someone confirm this timing mark?
- Thread starter Boduke
- Start date
-
Put it on and find tdc and verify. Then mark a line thru outer ring and inner ring to mark it.
Last edited:
Professor Fate
Push the button, Max...
You probably already know this, but that's a '70 and later balancer- don't try to use it with the '69 and earlier timing covers. The timing mark will appear to be almost 90* off.
PM sent on the shoes.
Next in line!PM sent on the shoes.
67Dart273
Well-Known Member
You cannot verify a balancer mark by looking at it. Use a piston stop, which you can buy, or make. I still have mine which I made in the SEVENTIES
+++++++++++++++++++++++++
Disconnect battery for safety. Insert the device in no1 making sure the piston is down. The length of the plunger is unimportant, but you want the piston to stop "down a ways." If you buy one rather than building one, make sure you get a lock nut on there to stop the stem from wobbling around
CAREFULLY wrench the engine around until the piston stops on the device. make a temp mark under TDC on your pointer tab, onto the balancer
Rotate the engine opposite direction do same thing. This will result in two temporary marks, and halfway between is TDC
If the original mark is correct, that is where it will be. This is one I built for SB Mopars in the '70s. Had it all these years
I've only seen 4 or 5 of these type here, commercially made, and in fact have one came in a Summit degree wheel kit. The plunger "wobbles" unless you screw it all the way in and tighten it down. So if you want it shorter you need to come up with a lock/ jam nut to make it rigid
+++++++++++++++++++++++++
Disconnect battery for safety. Insert the device in no1 making sure the piston is down. The length of the plunger is unimportant, but you want the piston to stop "down a ways." If you buy one rather than building one, make sure you get a lock nut on there to stop the stem from wobbling around
CAREFULLY wrench the engine around until the piston stops on the device. make a temp mark under TDC on your pointer tab, onto the balancer
Rotate the engine opposite direction do same thing. This will result in two temporary marks, and halfway between is TDC
If the original mark is correct, that is where it will be. This is one I built for SB Mopars in the '70s. Had it all these years
I've only seen 4 or 5 of these type here, commercially made, and in fact have one came in a Summit degree wheel kit. The plunger "wobbles" unless you screw it all the way in and tighten it down. So if you want it shorter you need to come up with a lock/ jam nut to make it rigid
Yup all genius! I can do it the hard way. Shoes not for sale at this time. Xo. Just to start argument tho. If i hold it up to an aftermarket dorman stock replacement balancer. Will my timing mark be in the ball park? Or is it supposed to be at 12 0’clock in line with the keyway? #shoeenvy
Ok . Yup. I checked it. #1 TDC compression stroke. Give or take a smidge for dwell. Its spot on!
. Sorry for tying get iff easy. I appreciate the gut check. Give a man a fish feed him for a day. Teach a man to fish feed him for a lifetime.
. Sorry for tying get iff easy. I appreciate the gut check. Give a man a fish feed him for a day. Teach a man to fish feed him for a lifetime.
Professor Fate
Push the button, Max...
As said, the timing marks can be in different locations depending on the year of your balancer/engine. What do you have?
gzig5
Well-Known Member
To fix that wobble on the adjustment, try wrapping the threaded shaft in teflon tape to take up the gap/tolerance in the thread. That should keep it on axis when it's turned in, and may be tight enough that it will hold adjustment when removed from the head but I'd still put a jam nut on the top if the thread is long enough.
I compared them to the bolts and those are pretty small feet.
-
