[FOR SALE] KB190 360 standard pistons

Mopar Mechanical Parts For Sale

  1. Gearhed73

    Gearhed73 Well-Known Member

    Messages:
    241
    Likes Received:
    239
    Joined:
    Feb 20, 2019
    Location:
    So.Cal
    Local Time:
    5:02 AM
    Contact Seller

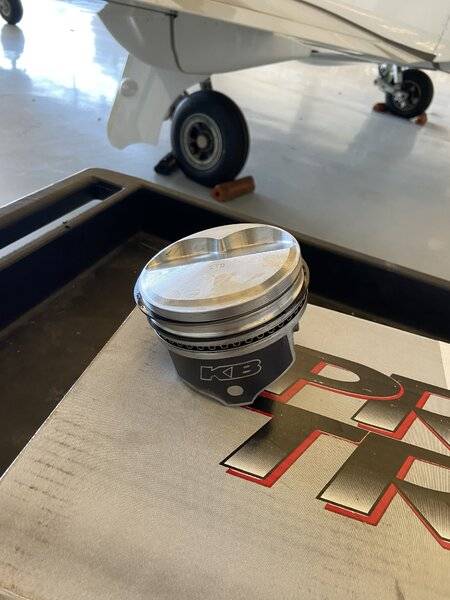

    kB190 pistons, standard bore. Hasting rings, gapped for nitrous included. Never ran, used for buildup only. Ended up using a different piston.
    $250 shipped to the lower 48





    • Like Like x 1
    • oldkimmer

      oldkimmer FABO Gold Member FABO Gold Member

      Messages:
      15,698
      Likes Received:
      4421
      Joined:
      Nov 11, 2006
      Location:
      Kindersley, Saskatchewan,
      Local Time:
      7:02 AM
      What compression will these be with a stock cc J head with .053 gasket? Will these be above deck with a non milled block? Thanks. Kim

    • Gearhed73

      Gearhed73 Well-Known Member

      Messages:
      241
      Likes Received:
      239
      Joined:
      Feb 20, 2019
      Location:
      So.Cal
      Local Time:
      5:02 AM

    • Gearhed73

      Gearhed73 Well-Known Member

      Messages:
      241
      Likes Received:
      239
      Joined:
      Feb 20, 2019
      Location:
      So.Cal
      Local Time:
      5:02 AM
      I’ll run those numbers for you. Let me just wrap up some things at work first.

    • autoxcuda

      autoxcuda Well-Known Member

      Messages:
      6,371
      Likes Received:
      681
      Joined:
      Apr 6, 2007
      Local Time:
      5:02 AM
    • 1966DDart

      1966DDart Well-Known Member

      Messages:
      104
      Likes Received:
      47
      Joined:
      Sep 21, 2007
      Location:
      Wilmington, OH
      Local Time:
      7:02 AM
      As you know, these aren't mine but, maybe this will help the seller...

      Being that they have a slight dome/pop-up (0.080"), they will extend above deck. Looking at KB web page, the compression should be in the 10.5-11 area, depending on the actual cc of your J heads.

      KB Automotive Hyper - Chrysler 360 / 5.9 - KB190

      Compression Ratio: 62-11.8, 64-11.5, 68-10.9, 72-10.5

      Using a standard LA deck height (9.600"), I come up with the following...

      1/2 of the stroke = 1.79"
      Rod length = 6.123"
      Compression ht = 1.675"
      TOTAL = 9.588"
      ...plus pop-up = 0.080"
      Calc above deck = 0.068" (9.588 + 0.080 - 9.600)

      When I run compression calculations using -1.2cc from KB description, 69cc heads, and assuming a Felpro 1000 gasket (~8.8cc), I come up with 10.75 to 1 compression. Anyway, hope that helps.

      • Thanks! Thanks! x 1
      • oldkimmer

        oldkimmer FABO Gold Member FABO Gold Member

        Messages:
        15,698
        Likes Received:
        4421
        Joined:
        Nov 11, 2006
        Location:
        Kindersley, Saskatchewan,
        Local Time:
        7:02 AM
        Thanks

      • Gearhed73

        Gearhed73 Well-Known Member

        Messages:
        241
        Likes Received:
        239
        Joined:
        Feb 20, 2019
        Location:
        So.Cal
        Local Time:
        5:02 AM
        To the top

      • rumblefish360

        rumblefish360 So close, yet so far away FABO Gold Member

        Messages:
        38,315
        Likes Received:
        9959
        Joined:
        Jun 21, 2005
        Location:
        New York, on a Island
        Local Time:
        8:02 AM
        FWIW, you will probably have to mill the deck some in order to get the main part of the piston to a zero deck height.

        • Like Like x 1
        • Thanks! Thanks! x 1
        • Gearhed73

          Gearhed73 Well-Known Member

          Messages:
          241
          Likes Received:
          239
          Joined:
          Feb 20, 2019
          Location:
          So.Cal
          Local Time:
          5:02 AM
          $200, buyer pays shipping

        • Gearhed73

          Gearhed73 Well-Known Member

          Messages:
          241
          Likes Received:
          239
          Joined:
          Feb 20, 2019
          Location:
          So.Cal
          Local Time:
          5:02 AM
          BUMP
