Hey guys I need some help. I'm working on a 1974 Valiant 318 a/c. I need help with vacuum and electrical harness routings. I just can't come up with a good search (air cleaner is always in the way) there are some un-plugged connectors in the corner by the brake booster. Clueless about the vacuum/rubber routing. Any stock engine compartment pictures (with air cleaner off) would be greatly appreciated. Thanks for any help.
Need help..stock '74 engine compartment pics.
- Thread starter saabfan9
- Start date
-
Can you post pictures of what you have and maybe we can play "guess where this connector goes"???
In that corner, you should have a ballast resistor, voltage regulator, washer pump (if electric squirter), and some other stuff....
In that corner, you should have a ballast resistor, voltage regulator, washer pump (if electric squirter), and some other stuff....
yes right in that corner. all those things listed are in place. there is a red 4 pin connector and a brown 1 pin taped up in the same factory looking harness. although the po has cut the hell out of the harness and a lot of it appears to be factory harness (easy to pick out the non-oe wiring)
Show us what you have and we can tell you what we can...
Post some pictures...
Post some pictures...
68 CUDA FORMULA S
Well-Known Member

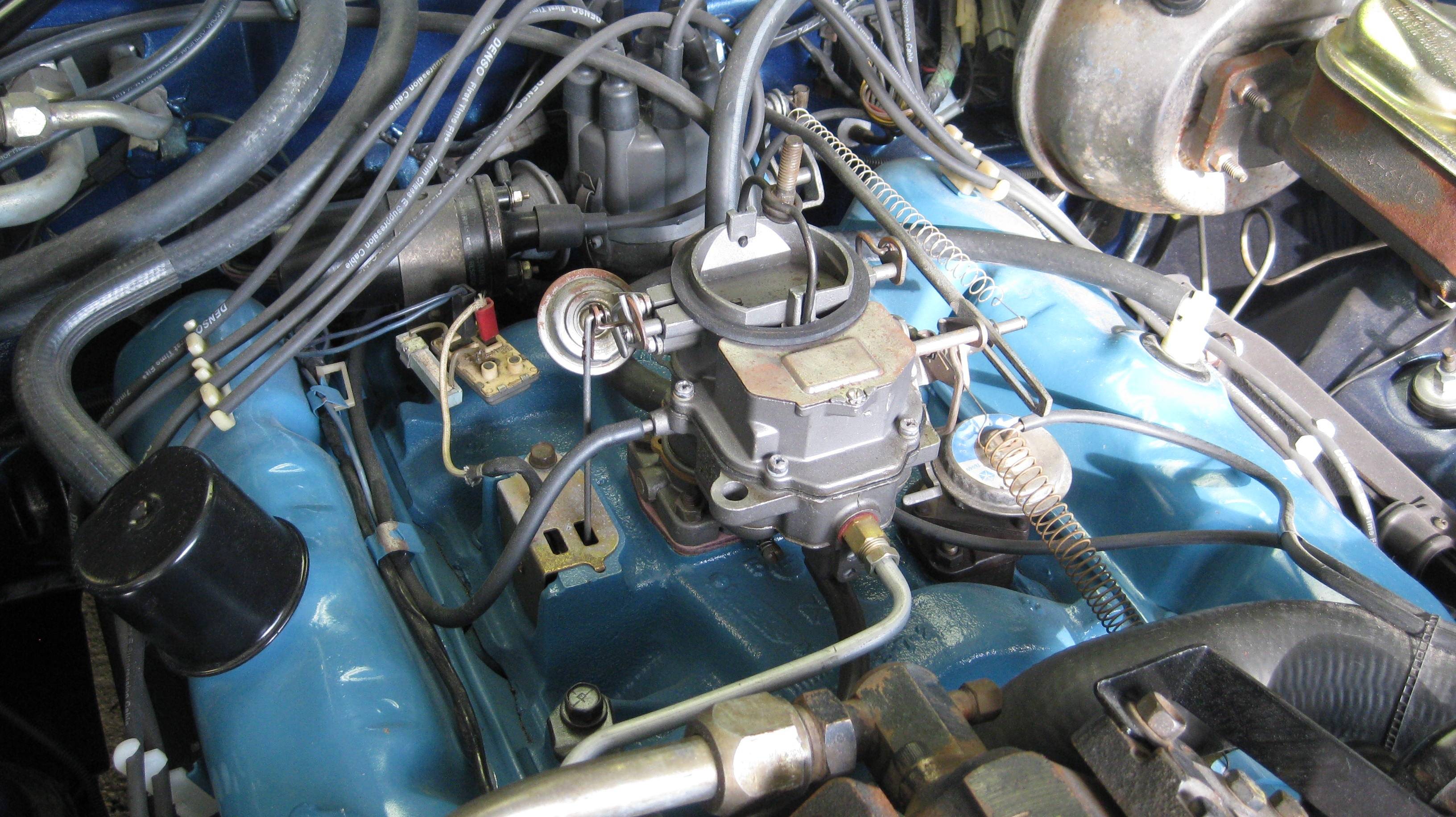

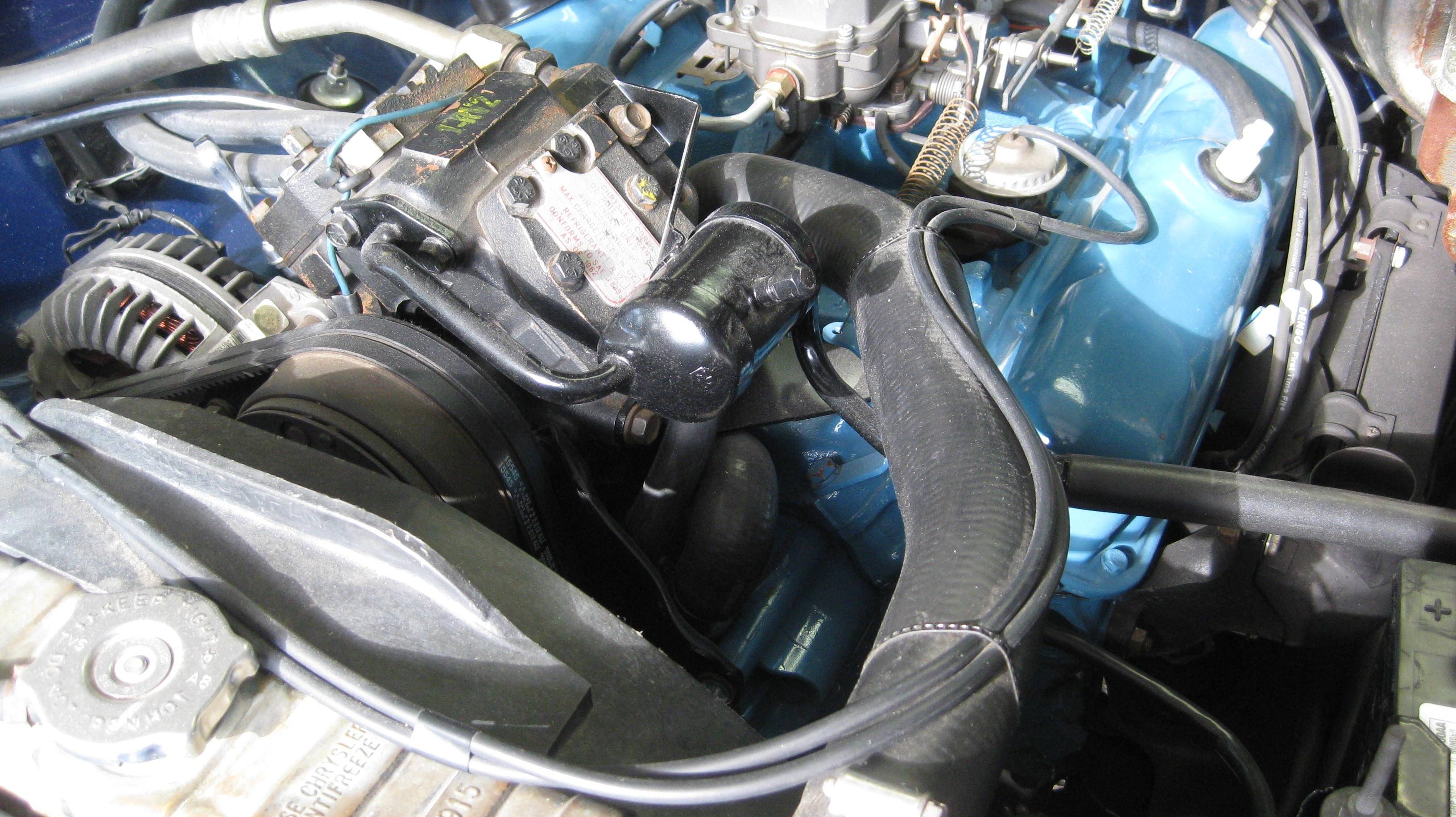

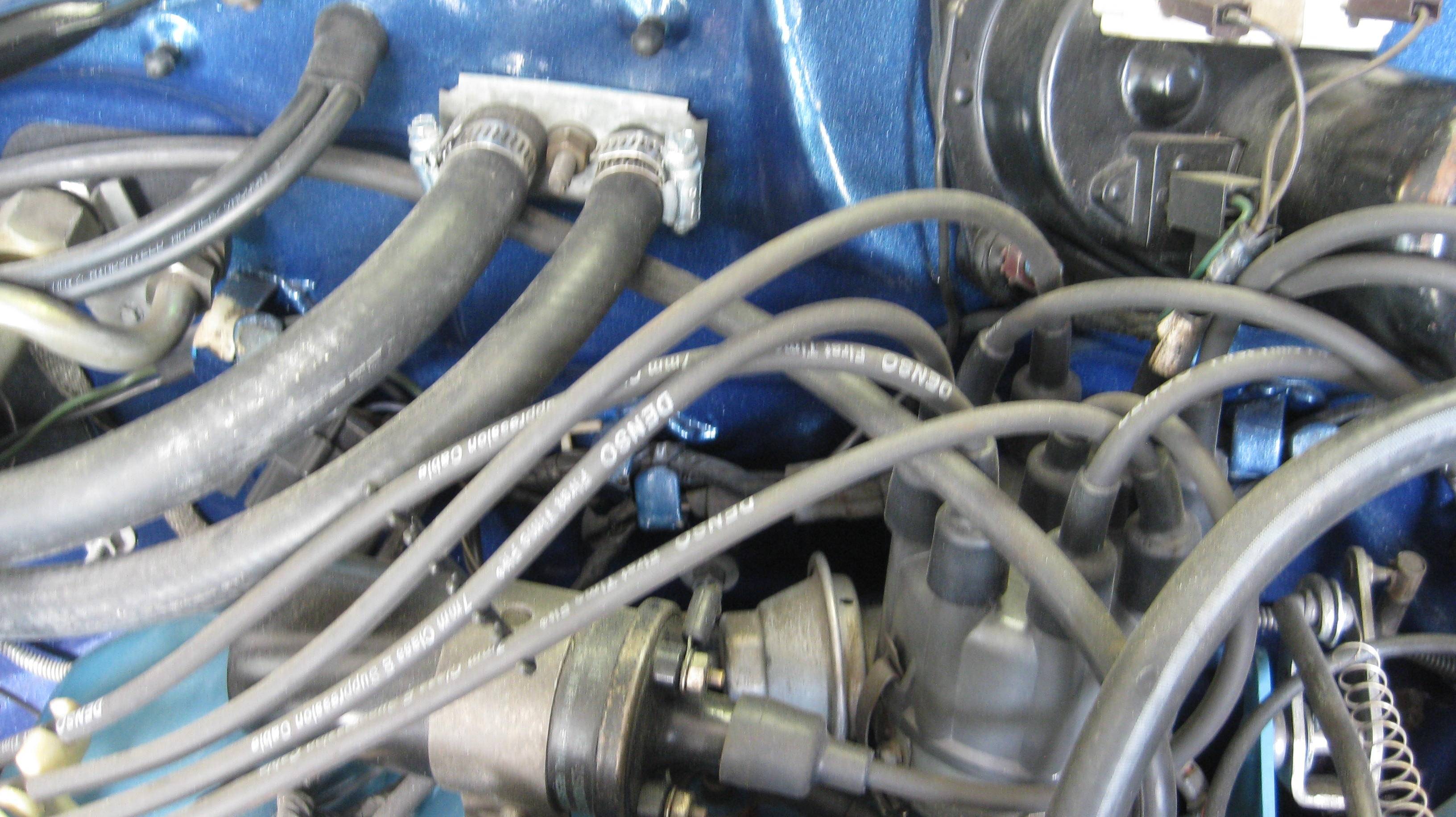

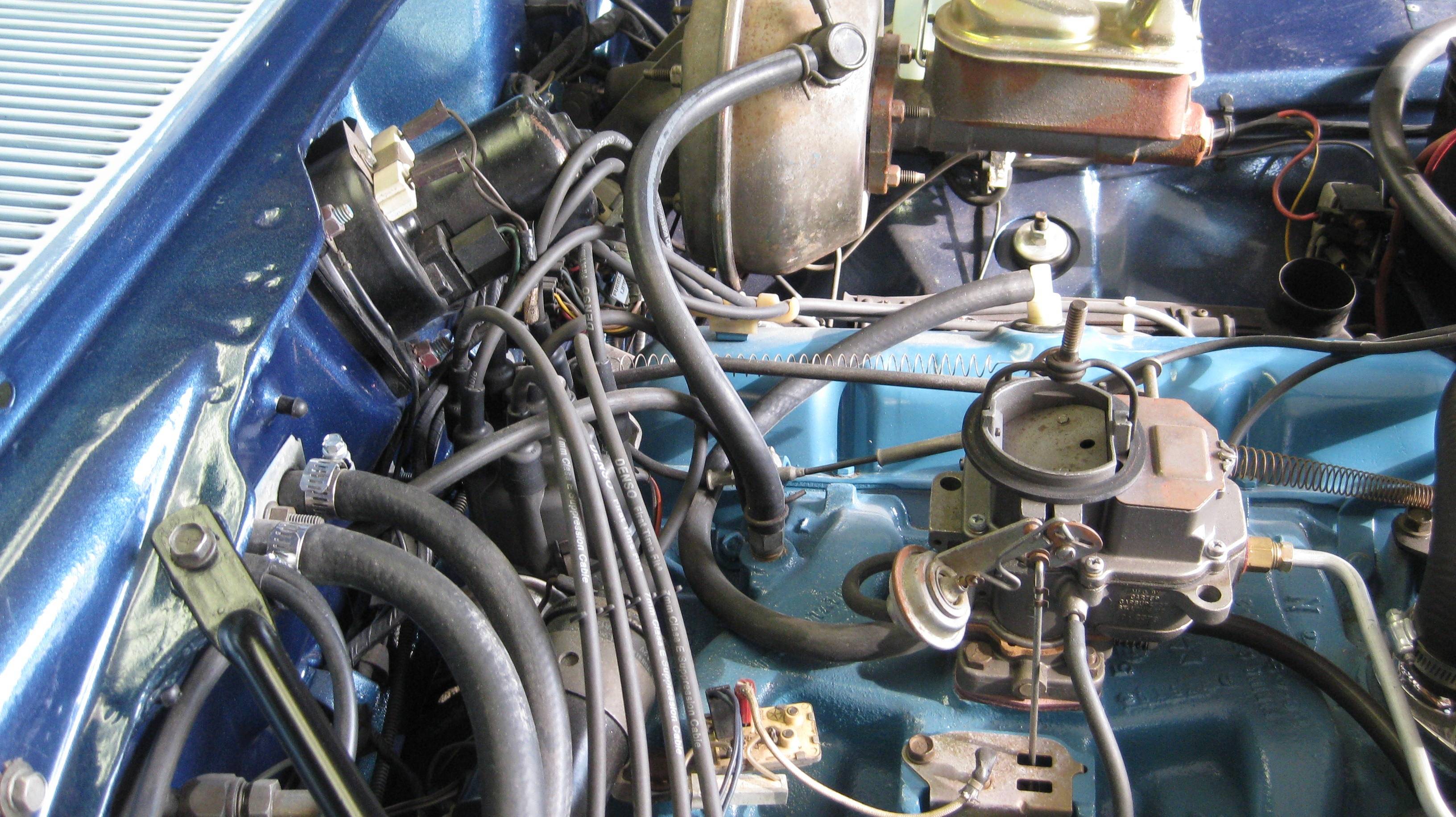

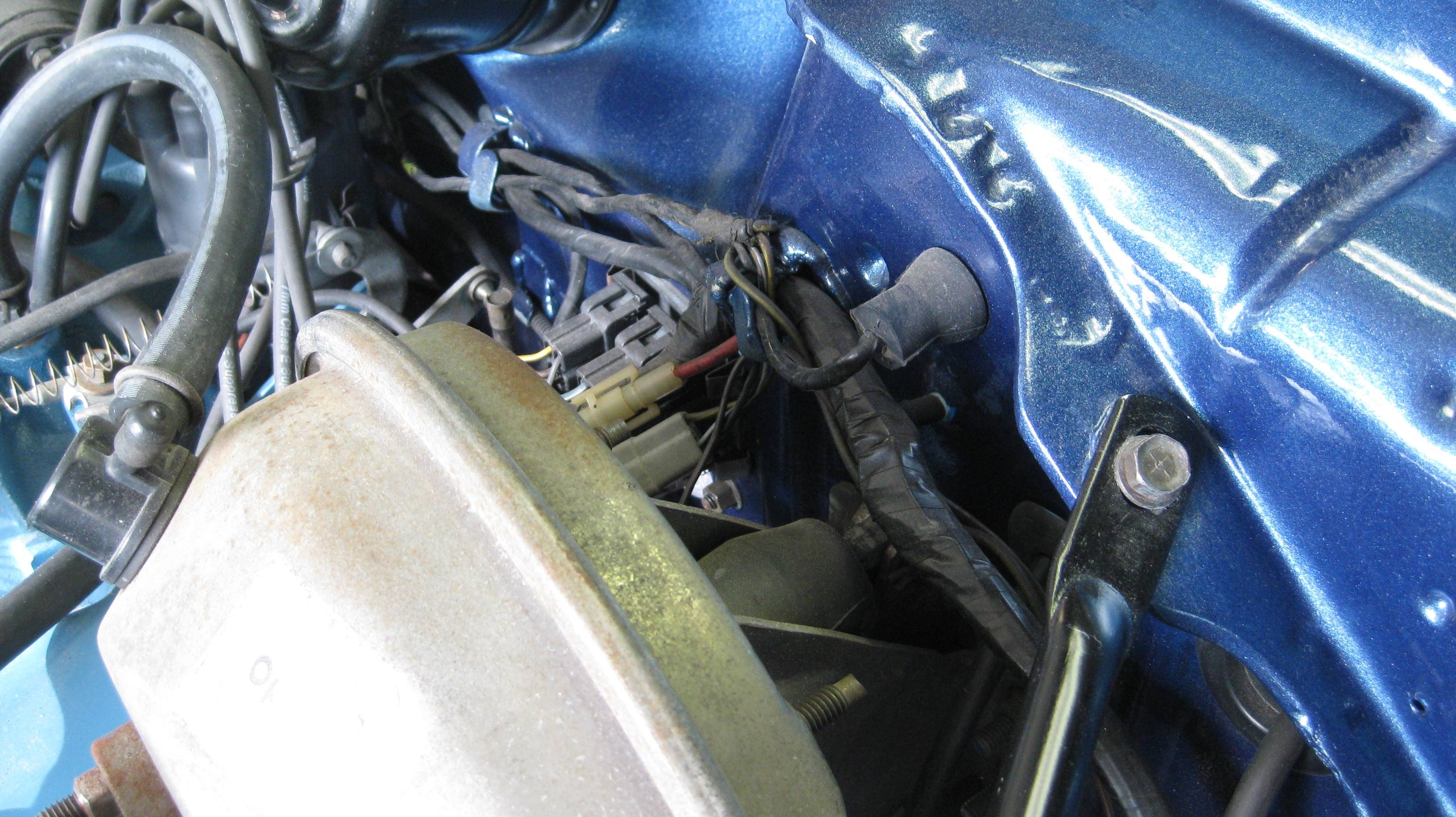

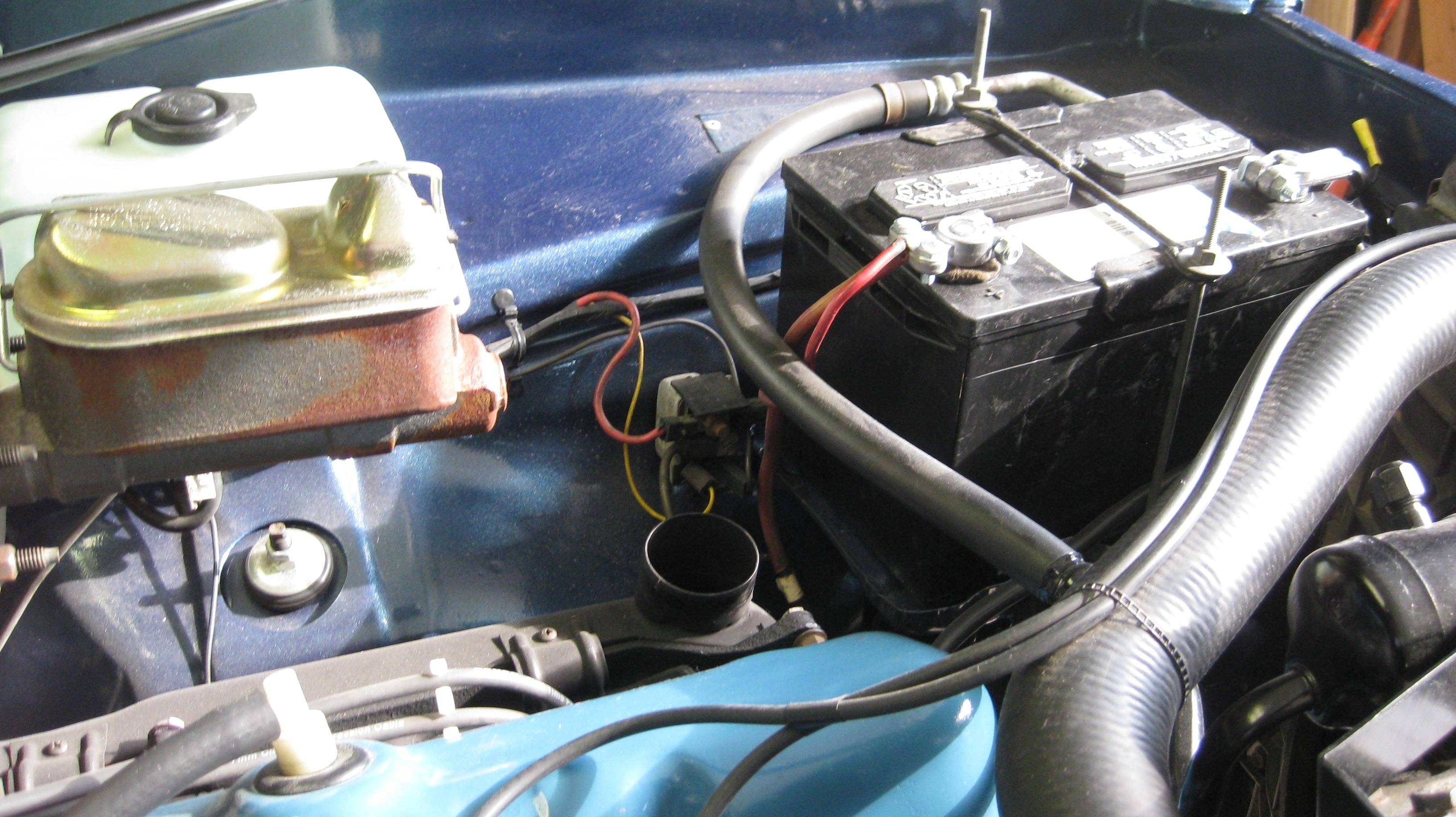

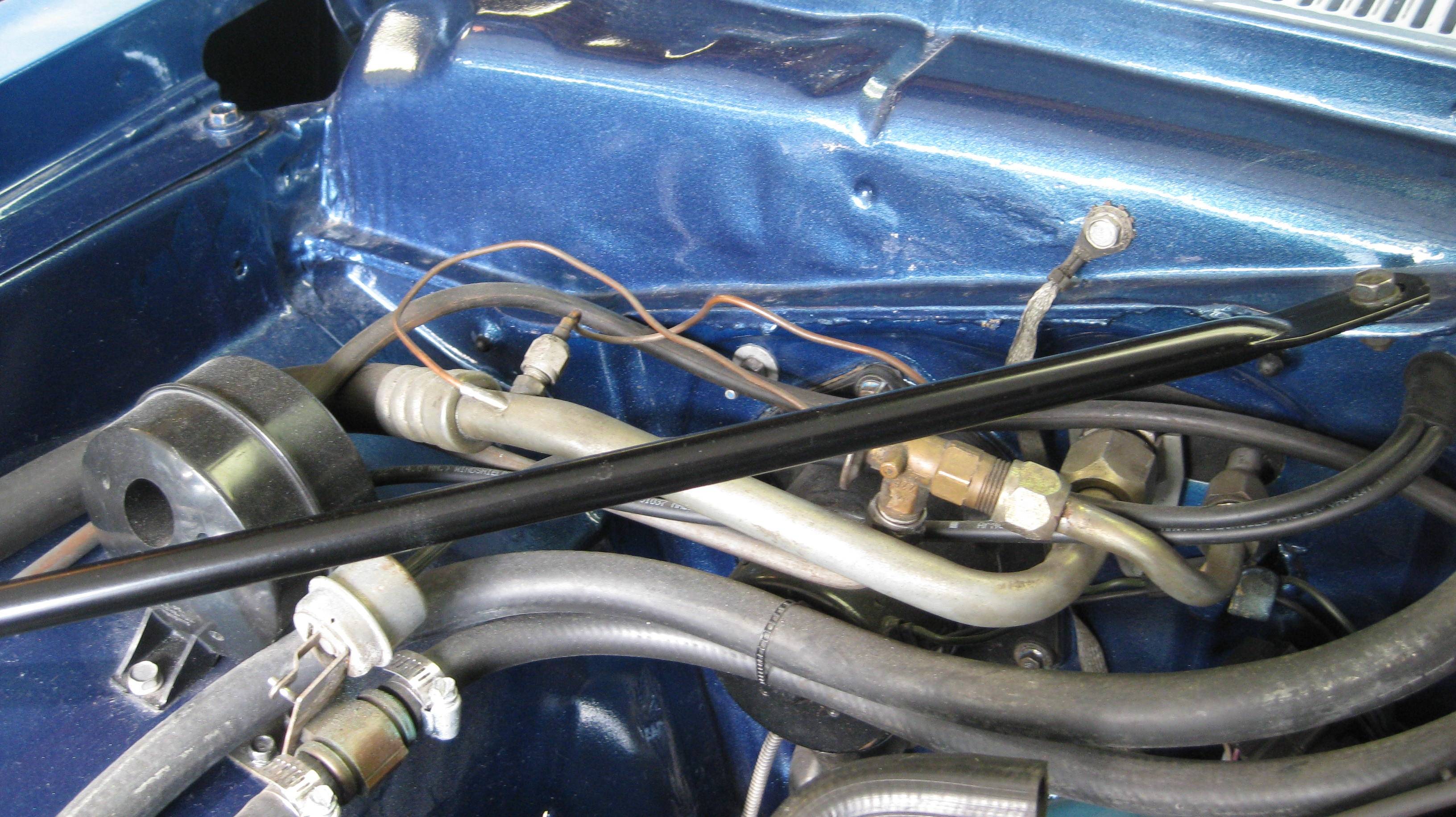

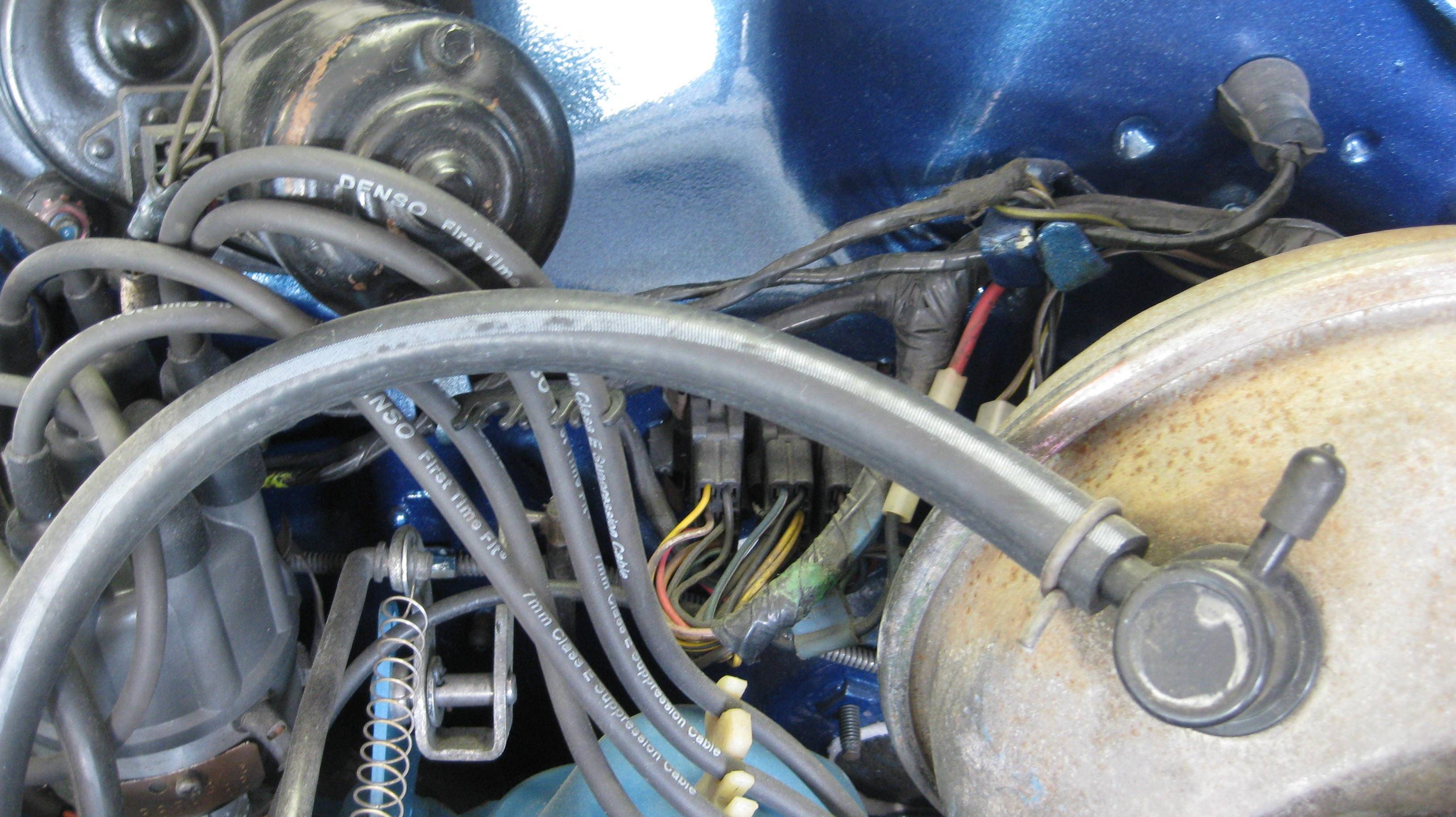

Here are a few pictures of my 1974 Scamp 318 with air hope they help. If you need some better ones or something specific let me know and I will get them for you.
Bob
Bob
68 CUDA FORMULA S
Well-Known Member

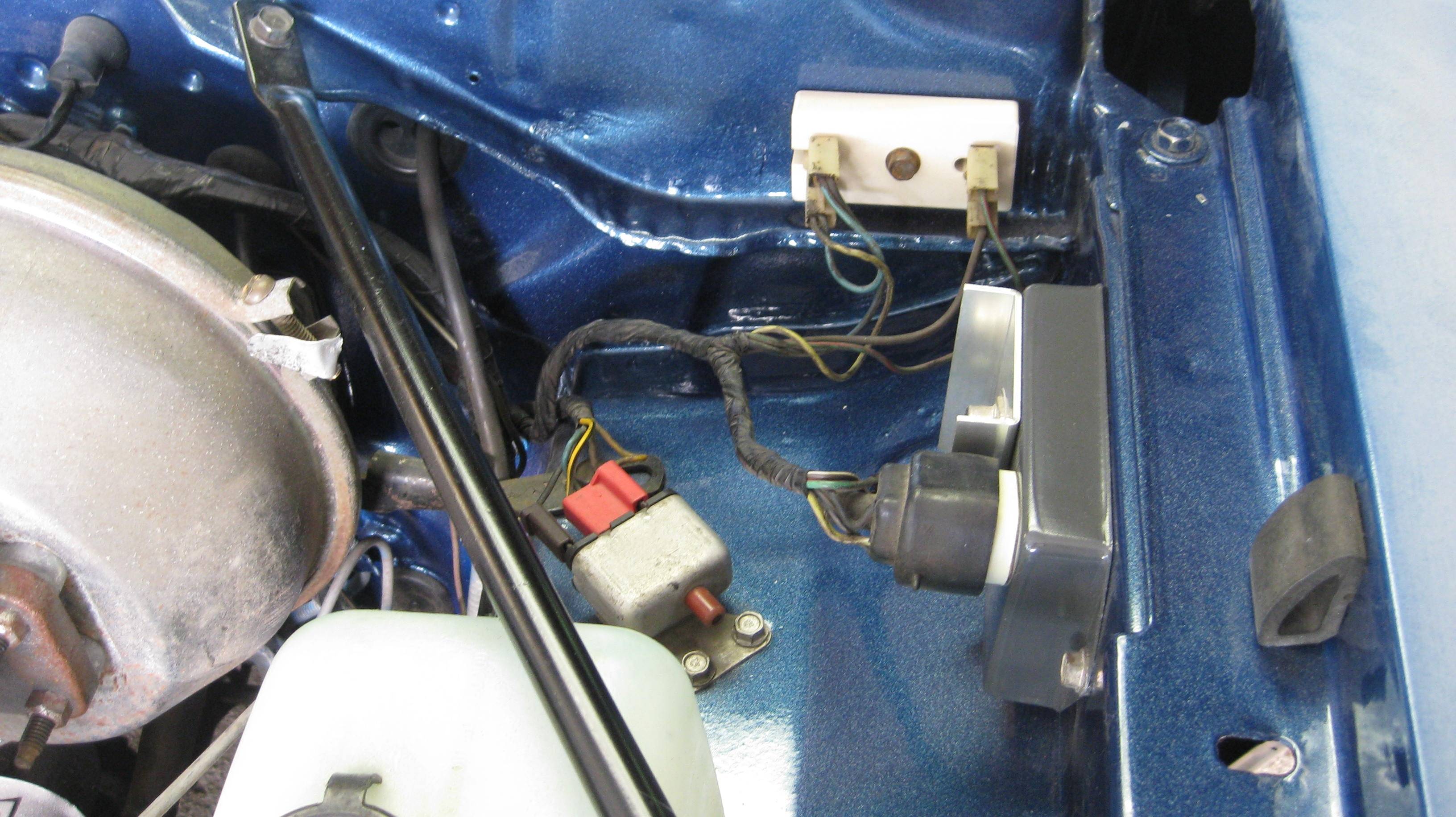

That is the horn relay.
340demon72
Well-Known Member
No, no, nothing to do with the horn! That is the seat belt interlock relay unique to 1974 Mopars. Here is a link to check out;
Seat Belt Interlock system - Moparchat - Home of MOPAR enthusiasts worldwide!
Most folks defeated them, Google to find out how....
-
