Photos of V8 power steering hose setup?

-
W

Woodsman341

Well-Known Member
Joined
Oct 28, 2022
Messages
376
Reaction score
122
Location
Columbia, SC
Hi guys and gals,

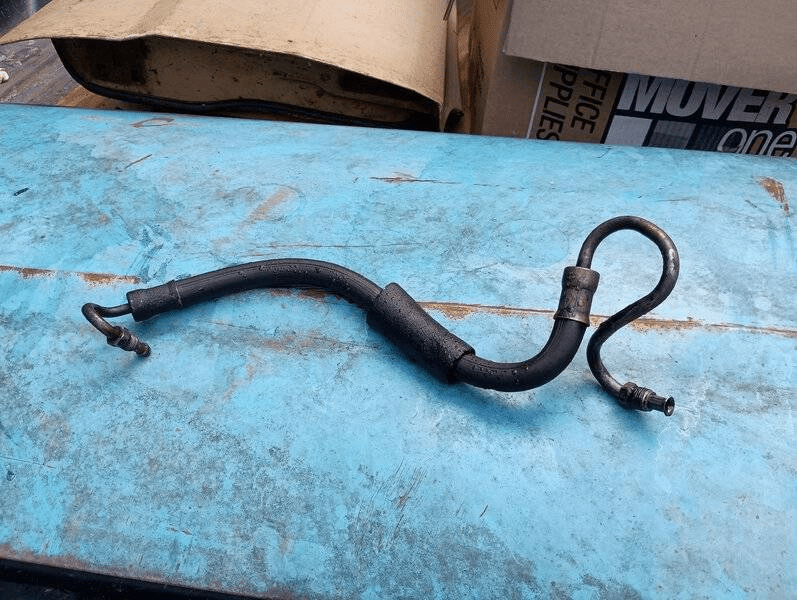

I'm trying to replace some bad power steering hoses on my wife's "new" 1975 Dart Sport. It was originally a slant 6 but was swapped to a 340 with a Saginaw pump. No matter which site I look at, I'm seeing hoses with a fairly straight section on the pump end, and hers is more serpentine. Pictures attached.

Can anyone show pics of their setup with a Saginaw pump? Maybe these newer hoses will work, but I can't visualize how that straight section would fit.

I've tried looking up earlier 340 hoses, slant 6 hoses, and nothing matches visually. There are places that sell Federal pump hoses that look similar, but the federal has an o-ring connection whereas the Saginaw has an inverted flare.

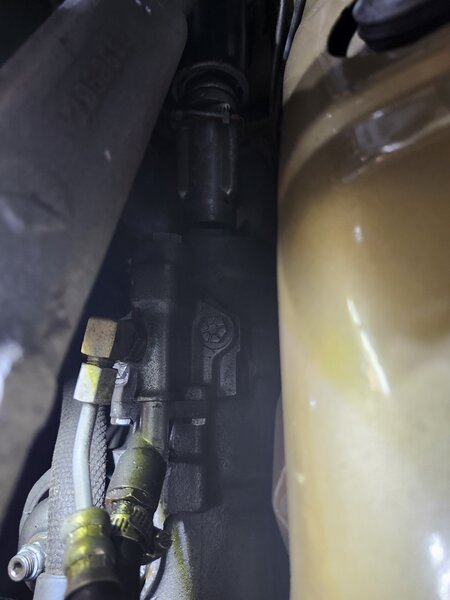

Editing to attach photos of the pump, which I was told is an early Saginaw.



Last edited:
4spdragtop said:
I have the TRW pump and it's an oddball looking one like in your pic. Actually loops under battery tray lol.
Click to expand...
Same here. I believed I used a slant hose if I recall. I just picked up a Saginaw pump I want to try so I'm curious how this plays out.

As I recall, your year with the spool motor mounts has a lot of room. Many different ones should work. Just get one and try it.

This one for a '74 Plymouth / Dart slant 6 on ebay looks very close although the bottom loop on yours was manipulated somewhat.

Mike69cuda said:
As I recall, your year with the spool motor mounts has a lot of room. Many different ones should work. Just get one and try it.
Click to expand...

Thanks, Mike, I think I'll have to. Yeah, there
A56 said:
This one for a '74 Plymouth / Dart slant 6 on ebay looks very close although the bottom loop on yours was manipulated somewhat.
View attachment 1716307690View attachment 1716307691
Click to expand...

I'll check. The funny thing is I thought, "Hey that one picture looks JUST like the one I have!" It took a second to realize that yeah, that's my house in a spare door. :D

Woodsman341 said:
Thanks, Mike, I think I'll have to. Yeah, there


I'll check. The funny thing is I thought, "Hey that one picture looks JUST like the one I have!" It took a second to realize that yeah, that's my house in a spare door. :D
Click to expand...
lol, I just wanted to have a better side by side.

Seems close after a 3rd and 4th look maybe not unless you could safely reshape both ends

Last edited:
