The Dreaded Tranny Pan Leak

Transmission and Drivetrain Tech

  1. 512Stroker

    512Stroker We are all here because we are not all there.

    Messages:
    2,336
    Likes Received:
    1706
    Joined:
    May 30, 2016
    Location:
    Freedom, MO
    Local Time:
    3:54 AM
    SBM 727, Hughes 3000 stall, steel stamped plus 2 quart pan.
    This will be the thrid pan gasket I have tried, I cant keep it from seeping between the pan and the gasket. First gasket was cork, second gasket is stiff rubber like with ridges in it, still leaks. All gaskets were installed clean and dry, no sealant used.
    What trick am I missing here? Sealant?

  2. plumkrazee70

    plumkrazee70 Well-Known Member

    Messages:
    2,901
    Likes Received:
    862
    Joined:
    May 5, 2013
    Location:
    Medford, Oregon
    Local Time:
    3:54 AM
    I was wondering this also. I know the modern tranny pans uses mopar atf rtv.

    • Like Like x 1
    • Yunick13

      Yunick13 Well-Known Member

      Messages:
      2,320
      Likes Received:
      5601
      Joined:
      Sep 7, 2019
      Location:
      No longer here.
      Local Time:
      3:54 AM
      Have you checked to make sure the flange on the pan is flat?

      • Agree Agree x 3
      • dartfreak75

        dartfreak75 Restore it, Dont part it! FABO Gold Member

        Messages:
        9,973
        Likes Received:
        7603
        Joined:
        Aug 10, 2011
        Location:
        Virginia
        Local Time:
        4:54 AM
        I just rebuilt a 999(904) and used a good gasket that came from b&m and its leaking almost instantly i was hoping once it heated up it would seal but so far no luck still leaking like a seave.

      • brian6pac

        brian6pac Well-Known Member

        Messages:
        5,230
        Likes Received:
        3651
        Joined:
        Nov 15, 2016
        Location:
        N.E.Ohio
        Local Time:
        4:54 AM
        Spray copper on the pan side, nothing on the trans side.

        • Like Like x 1
        • bcschief

          bcschief Well-Known Member

          Messages:
          874
          Likes Received:
          456
          Joined:
          Feb 23, 2010
          Location:
          Crescent City Florida
          Local Time:
          4:54 AM
          Maybe it's the shift shaft seals. Is it leaking on the drivers side at about the middle point of the pan or possibly fluid is running to the back corner of the pan ?

          • Agree Agree x 3
          • Like Like x 1
          • 512Stroker

            512Stroker We are all here because we are not all there.

            Messages:
            2,336
            Likes Received:
            1706
            Joined:
            May 30, 2016
            Location:
            Freedom, MO
            Local Time:
            3:54 AM
            Pan was new when I installed it and it is flat.
            Do you know what the torque is on the pan bolts?

          • 512Stroker

            512Stroker We are all here because we are not all there.

            Messages:
            2,336
            Likes Received:
            1706
            Joined:
            May 30, 2016
            Location:
            Freedom, MO
            Local Time:
            3:54 AM
            I have already checked for leaks above the pan several times. It appears to be the dam gasket.

          • George Jets

            George Jets 1967 Dart 2 Door FABO Gold Member

            Messages:
            4,533
            Likes Received:
            6198
            Joined:
            Jan 18, 2019
            Location:
            Farmington MN
            Local Time:
            3:54 AM
            Here is same what I do for valve covers as well as the tranny pans.

            Clean pan surface and tranny surface, bolt thread holes and bolts and threads with Brake Parts Cleaner to remove any trace of oil or oily solvents.

            Then apply thin layer if black RTV Gasket Maker to both tranny and pan gasket surfaces and a thin layer to both sides of new cork pan gasket.

            Then coat bolt theads with Aviation Sealer (like Hi Tack) to seal threads to the case.

            Assemble the pan onto the tranny with light but snug torque to the pan bolts, tightening them evenly as you go around 3 times.

            Let sit overnight to let RTV cure. Put in your tranny fluid, check when warned up and leave a pint low on the 727s so that you are not overfilling it.

            Check when idling in neutral. Leaving the tranny 1 pint low leaves room for torque converter drain back so the fluid level does not go above the shift shaft seals and forces the fluid out.

            Can seal the nut and band adjustment bolt threads with Aviation Sealer too as fluid will seep from there also if unsealed.

            Never leaks as long as your shift shaft seals are good. Same for 904s too.

            If your front seal at the torque converter is leaking, well that is another story . . .


            • Like Like x 4
            • jdsduster

              jdsduster Well-Known Member

              Messages:
              1,199
              Likes Received:
              191
              Joined:
              Aug 5, 2011
              Location:
              indiana
              Local Time:
              4:54 AM
              no better gasket than the crush proof.last gasket you will ever put on.period.put it on dry.

              • Agree Agree x 2
              • Thanks! Thanks! x 1
              • Dana67Dart

                Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

                Messages:
                6,348
                Likes Received:
                4164
                Joined:
                Jul 16, 2017
                Location:
                Northern Colorado
                Local Time:
                2:54 AM
                • Thanks! Thanks! x 1
                • rustycowll69

                  rustycowll69 Well-Known Member

                  Messages:
                  2,455
                  Likes Received:
                  1197
                  Joined:
                  Feb 19, 2016
                  Location:
                  Pacific northwest
                  Local Time:
                  1:54 AM
                  I DO NOT recommend silicone RTV. They make a MOPAR reusable gasket. It came with a factory deep pan on my 02 ram2500. Damn near fool proof!

                  • Agree Agree x 5
                  • Like Like x 1
                  • RustyRatRod

                    RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

                    Messages:
                    71,784
                    Likes Received:
                    46970
                    Joined:
                    Jun 7, 2010
                    Location:
                    Georgia
                    Local Time:
                    4:54 AM
                    Sealant doesn't go on transmission pans. Ever, ever, ever. Period. Make absolutely 100% SURE the pan rail is straight and the bolt holes are not distorted. Don't say "It's a new pan" just frikkin DO IT. How hard is that? Seriously? Next get the best gasket money can buy. That would be this. Rubber with a steel core. Put it on CLEAN CLEAN CLEAN and DRY.

                    Moroso 93110 Moroso Transmission Pan Gaskets | Summit Racing

                    Lastly torque to spec and DON'T over torque. Finally, come back after a few heat cycles and re-torque WHEN COLD. If it's the pan gasket that's leaking, that should solve it. But beware, like others have said, transmission leaks can be tricky. Sometimes a pan gasket leak ends up being a dipstick tube leak, of shaft seals, or something else, so inspect it very closely.

                    Last edited: Mar 17, 2021
                    • Like Like x 2
                    • Agree Agree x 2
                    • Disagree Disagree x 1
                    • rustycowll69

                      rustycowll69 Well-Known Member

                      Messages:
                      2,455
                      Likes Received:
                      1197
                      Joined:
                      Feb 19, 2016
                      Location:
                      Pacific northwest
                      Local Time:
                      1:54 AM
                      The part number is stamped right in the pan!
                      If you are trying to seal a chrome pan, good luck!



                      • Agree Agree x 2
                      • JoePole1

                        JoePole1 A dude in a B body FABO Gold Member

                        Messages:
                        646
                        Likes Received:
                        527
                        Joined:
                        Mar 3, 2018
                        Location:
                        Hudson Valley, NY. NOT NYC!!
                        Local Time:
                        4:54 AM
                        • Like Like x 2
                        • Agree Agree x 2
                        • 12many

                          12many Well-Known Member

                          Messages:
                          1,800
                          Likes Received:
                          2187
                          Joined:
                          Dec 14, 2016
                          Location:
                          South Carolina, Thank God
                          Local Time:
                          3:54 AM

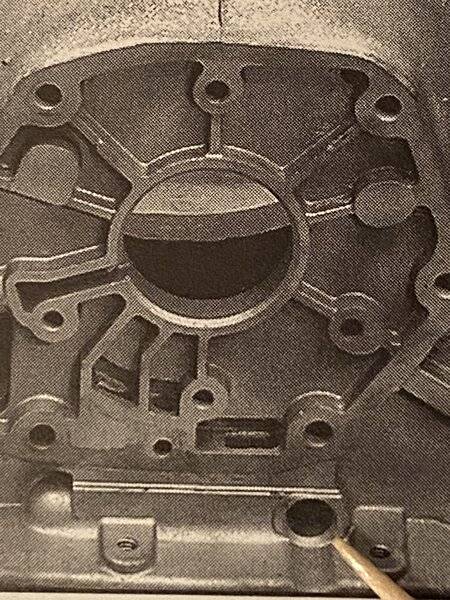

                          Don’t forget to check the low/reverse band lever pin/shaft bore on the back of the case for a possible leak. I’ve had leaks there, bad (O-ring) cleaned with degreaser and packed some ultra rtv in there to solve that after thinking maybe the shift shaft and gasket was the source only to have been that shaft and bore.


                          • Like Like x 1
                          • Agree Agree x 1
                          • fishmens67

                            fishmens67 Well-Known Member

                            Messages:
                            9,912
                            Likes Received:
                            8443
                            Joined:
                            Nov 10, 2012
                            Location:
                            idaho
                            Local Time:
                            3:54 AM
                            I went through 2 different new pans and several gaskets with sealant only to find the dipstick was seeping.
                            It was hard to see, but it wicked around the pan making it look like the pan gasket was leaking.
                            put a new O-ring on and it was fixed.

                          • 512Stroker

                            512Stroker We are all here because we are not all there.

                            Messages:
                            2,336
                            Likes Received:
                            1706
                            Joined:
                            May 30, 2016
                            Location:
                            Freedom, MO
                            Local Time:
                            3:54 AM
                            Listen Boozo (nice Picture) I did not think a step by step explanation was necessary so he ya go.
                            When I said that "its Flat" I should have said that after the first gasket I set the pan gasket surface down on a piece of polished marble and could not pass a .004 feller gauge between the pan and the stone. I figured that that straight for a stamped pan. I do not believe that I have over torqued the bolts as I have secured many pans that have not leaked, but rest assured that when I have the pan off I will check the bolt holes.
                            Thanks

                            • Disagree Disagree x 1
                            • 512Stroker

                              512Stroker We are all here because we are not all there.

                              Messages:
                              2,336
                              Likes Received:
                              1706
                              Joined:
                              May 30, 2016
                              Location:
                              Freedom, MO
                              Local Time:
                              3:54 AM
                              Pan is not chromed

                              • Like Like x 1
                              • fishmens67

                                fishmens67 Well-Known Member

                                Messages:
                                9,912
                                Likes Received:
                                8443
                                Joined:
                                Nov 10, 2012
                                Location:
                                idaho
                                Local Time:
                                3:54 AM
                                It can also wick through several of the pan bolts.

                                • Agree Agree x 1
                                • j par

                                  j par Well-hung Member

                                  Messages:
                                  27,764
                                  Likes Received:
                                  15187
                                  Joined:
                                  Jul 2, 2014
                                  Location:
                                  Portland Oregon
                                  Local Time:
                                  1:54 AM
                                  I wish somebody told me I wasn't supposed to use rtv!...
                                  I foolishly put a bunch of "the right stuff" on both sides of the cheap Court gasket that came with the rebuild kit and never had a leak...
                                  I'm not recommending that only because I don't want Rusty fat mod yelling at me...

                                  • Like Like x 3
                                  • Disagree Disagree x 1
                                  • fishmens67

                                    fishmens67 Well-Known Member

                                    Messages:
                                    9,912
                                    Likes Received:
                                    8443
                                    Joined:
                                    Nov 10, 2012
                                    Location:
                                    idaho
                                    Local Time:
                                    3:54 AM
                                    I tried the right stuff, only to find the tube was seeping.
                                    That stuff was hard to get off, so I didn't use it on the next new pan install. lol
                                    Even had the good Moroso gasket on there one time. Damn leaky dip stick tube. lol

                                    • Like Like x 2
                                    • brian6pac

                                      brian6pac Well-Known Member

                                      Messages:
                                      5,230
                                      Likes Received:
                                      3651
                                      Joined:
                                      Nov 15, 2016
                                      Location:
                                      N.E.Ohio
                                      Local Time:
                                      4:54 AM
                                      I pulled a piece of RTV out of a valve body once that wouldn't shift,
                                      Go figure.

                                      • Like Like x 4
                                      • Agree Agree x 1
                                      • rustycowll69

                                        rustycowll69 Well-Known Member

                                        Messages:
                                        2,455
                                        Likes Received:
                                        1197
                                        Joined:
                                        Feb 19, 2016
                                        Location:
                                        Pacific northwest
                                        Local Time:
                                        1:54 AM
                                        I've been watching these trans/transfer case breakdowns on youtube and it's amazing how many units' pickups are plugged up with fugitive silicone boogers.
                                        That being said, my Intrepid auto trans came with silicone from the factory, but the factory has a robot which deposits the PERFECT size bead of silicone for the factory assembly. It never leaked from the pan, BUT it was a real bitch to bust that pan loose without bending the pan, and another bitch to clean all that old silicone off.
                                        If there is a reusable pan gasket, I highly recommend it. IMO, it's worth the extra money.

                                        • Like Like x 1
                                        • Agree Agree x 1
                                        • George Jets

                                          George Jets 1967 Dart 2 Door FABO Gold Member

                                          Messages:
                                          4,533
                                          Likes Received:
                                          6198
                                          Joined:
                                          Jan 18, 2019
                                          Location:
                                          Farmington MN
                                          Local Time:
                                          3:54 AM
                                          Good trick for any sealed RTV surface is to loosen up the bolts then spray Brake Parts Cleaner on it a couple times over a 20 minute period to let it soak in, keeping it wet.

                                          It starts softening up the RTV and it comes apart easy. Makes it easy to clean the surfaces down clean to the metal too. Trick is to keep it wet and it softens right up.

                                          Weather it is valve covers, oil pans, intake manifolds, timing covers, etc. makes life easier for cleaning up the RTV.

                                          • Like Like x 1
                                          • Thanks! Thanks! x 1
