TTI 1 7/8 Headers hitting oil pan

Mopar Exhaust Systems

  1. Walker434

    Walker434 Well-Known Member

    Messages:
    938
    Likes Received:
    609
    Joined:
    Aug 29, 2012
    Location:
    Nashville, TN
    Local Time:
    6:01 AM
    I have TTI 1 7/8 race headers and just installed new engine in my 71 Dart. It has a milidon road race oil pan and one header tube is resting on the top of the kick out.

    Any tips on getting clearance without removing engine or headers? This is on the drivers side and this header was a nightmare to install. It's only touching on one small portion. Thought about a flat blade screwdriver and hammer but I'm afraid of damaging the oil pan. Thanks in advance for any helpful tips or tricks.

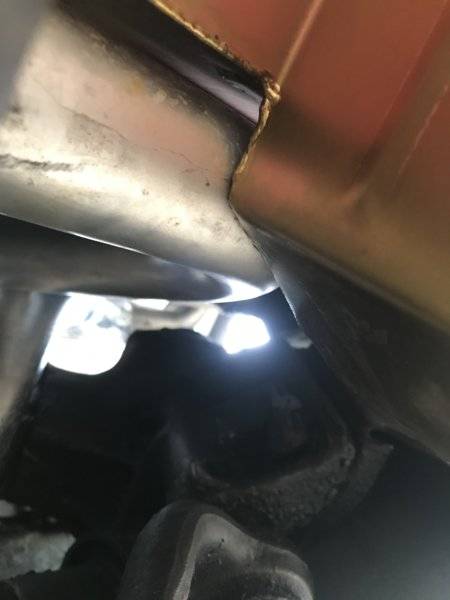

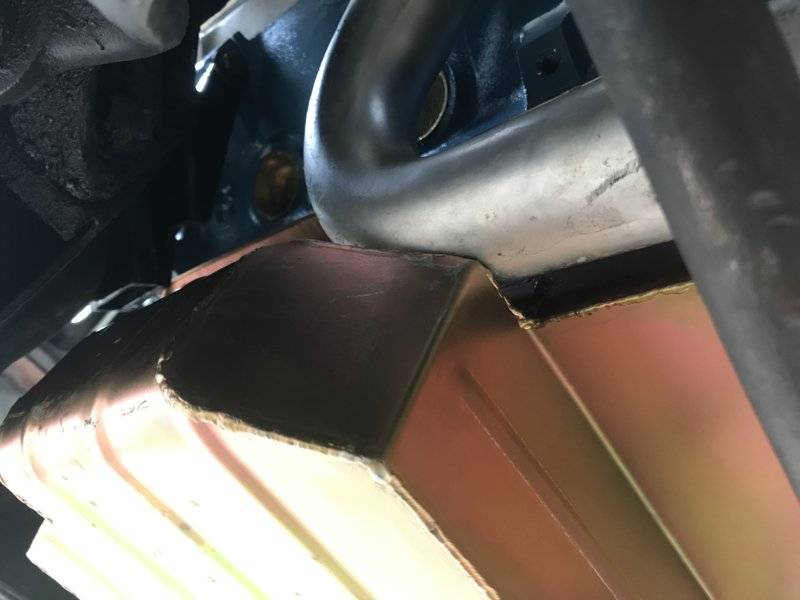

    Dart 23.jpg

    Dart 24.jpg

  2. jrcr_15

    jrcr_15 Well-Known Member

    Messages:
    108
    Likes Received:
    31
    Joined:
    Jan 3, 2006
    Local Time:
    6:01 AM
    You might have some luck with a C-clamp..? But taking them off might be the best option. I have tti's on my Duster and they were brutal to fit correctly

  3. yellow rose

    yellow rose Master Of Insanity

    Messages:
    23,867
    Likes Received:
    19879
    Joined:
    Jun 19, 2015
    Location:
    Walking a crooked mile
    Local Time:
    4:01 AM
    Any time the tubes get that big it's hard to make them fit. Double check engine placement. If you can move the engine a bit in the K frame you may find some room.

    Good, HP making headers are always a PITA. Cheap headers that fit nice usually lose power.

    • Disagree Disagree x 2
    • Like Like x 1
    • diymirage

      diymirage HP@idle > hondaHP@redline

      Messages:
      19,920
      Likes Received:
      14135
      Joined:
      Oct 12, 2012
      Location:
      michigan
      Local Time:
      7:01 AM
      if it were me, i would pull the pan, cut out the kickout and reweld it some

      almost seems like the only way to deal with it...unless you want to try to reshape the headers

      thats the problem with aftermarket parts, they might fit perfectly on their own, but when you put them together they dont always play nice

      • Agree Agree x 5
      • Like Like x 1
      • 72bluNblu

        72bluNblu FABO Gold Member FABO Gold Member

        Messages:
        10,996
        Likes Received:
        5442
        Joined:
        Nov 28, 2008
        Location:
        NorCal
        Local Time:
        4:01 AM
        You’re going to have to drop the pan or the header to fix that. I don’t think you’ll have any luck at all solving that without removing one or the other. You may try loosening the header up and seeing if you can move it a little on the studs, but that looks tight and you may not buy enough clearance that way. Shifting the engine in the mounts won’t help at all, both the pan and the header are bolted to the engine.

        I’d dimple the header before I messed with the oil pan too. There are dyno tests out there showing that dimpling the headers has pretty much no effect on horsepower output. If you section the pan you’ll have to make sure it doesn’t mess with any of the baffles or trap doors that pan has. Not to mention if there’s oil in it now you’ll have to do a lot of cleaning to pull off the weld you’ll need.

        I have a set of Doug’s headers on my 340 with a Milodon road race pan. The fit is definitely tight, but they cleared the pan ok. They’re 1 5/8” though.

      • 72Dart6pack

        72Dart6pack Harder Better Faster Stronger.

        Messages:
        3,693
        Likes Received:
        3464
        Joined:
        Feb 1, 2016
        Location:
        Roseville Michigan
        Local Time:
        7:01 AM
        Note to self: You're outta luck. Something is coming off to fix it.

        • Agree Agree x 1
        • famous bob

          famous bob mopar misfit

          Messages:
          17,256
          Likes Received:
          6787
          Joined:
          Aug 14, 2011
          Location:
          okla
          Local Time:
          6:01 AM
          My sentiments exactly^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
          I bought an old funny alum. funny car , 7 qt pan, and had to do the same thing , only to the front /to clear my aftermarket front end. Still a bitch to get off , but do able.

        • moparspares

          moparspares Well-Known Member

          Messages:
          580
          Likes Received:
          50
          Joined:
          Aug 10, 2010
          Location:
          Scarborough, Qld
          Local Time:
          6:01 AM
          I feel your Pain. 1 7/8 headers in an A body biggest mistake of my life. Never Ever Ever will I do that again. Had mine out a couple of times and they have flat spots all over them to make them fit. For TTI to say they fit out of the box is absoloute crap and I installed mine as per the letter of TTI instructions using all there suggested parts.

        • canyncarvr

          canyncarvr Well-Known Member

          Messages:
          129
          Likes Received:
          23
          Joined:
          Dec 31, 2011
          Location:
          State of Jefferson
          Local Time:
          4:01 AM
          Not applicable to your situation, BUT: My one-each Hedman header of the nominal size (1-5/8") didn't fit with my Milodon pan without some 'persuasion' to the header with a hammer.

          It is also true that my Milodon pan is not shaped like yours.

          It's maybe not JUST the 1-7/8" part of the equation that's a problem.

        • Walker434

          Walker434 Well-Known Member

          Messages:
          938
          Likes Received:
          609
          Joined:
          Aug 29, 2012
          Location:
          Nashville, TN
          Local Time:
          6:01 AM
          I've made a decision. I'm going to try to C clamp the header tube as close to the oil pan as possible. Hopefully this will give a little clearance so I can get a tire spoon (like the one shown) in there and beet the shit out of it with a hammer. If I damage the oil pan oh well, it was going to have to be modified anyway. If not, it might work and I win!

          Am I crazy or not?


        • yellow rose

          yellow rose Master Of Insanity

          Messages:
          23,867
          Likes Received:
          19879
          Joined:
          Jun 19, 2015
          Location:
          Walking a crooked mile
          Local Time:
          4:01 AM

          I've used multiple sets of Hooker 5303 headers (can't even buy them any more) and they all fit well. You can't have power steering. They are a PITA to install but they fit well, you can get to all the spark plugs and they make power.

        • diymirage

          diymirage HP@idle > hondaHP@redline

          Messages:
          19,920
          Likes Received:
          14135
          Joined:
          Oct 12, 2012
          Location:
          michigan
          Local Time:
          7:01 AM
          if you gonna bash on it, warm it up as much as you can to make the metal a bit more pliable

          • Agree Agree x 1
          • Walker434

            Walker434 Well-Known Member

            Messages:
            938
            Likes Received:
            609
            Joined:
            Aug 29, 2012
            Location:
            Nashville, TN
            Local Time:
            6:01 AM
            Yeah that's the plan. Heat it up with the torch first. Currently no oil in the pan so don't have to worry about that.

          • Divenut

            Divenut Well-Known Member

            Messages:
            3,131
            Likes Received:
            1449
            Joined:
            Sep 22, 2011
            Location:
            Naperville Illinois
            Local Time:
            6:01 AM
            It's amazing what one can fix, and/or make fit, with a bit of persuasion from a BFH.

          • 69FBCuda

            69FBCuda Life in the Fast Lane FABO Gold Member

            Messages:
            2,721
            Likes Received:
            1425
            Joined:
            Aug 28, 2014
            Location:
            Florida
            Local Time:
            7:01 AM
            Drop the pan and ball peen the header and pan

          • canyncarvr

            canyncarvr Well-Known Member

            Messages:
            129
            Likes Received:
            23
            Joined:
            Dec 31, 2011
            Location:
            State of Jefferson
            Local Time:
            4:01 AM
            But....there WAS oil in the pan? I would be less concerned with heating a pan full of oil than one empty and full of fumes. Liquid gasoline will quench a match.

            Have some extinguishers on hand! Stick a shop vac on a valve cover hole prior to lighting it up with a torch. Maybe just use a heat gun?

            If you get a bit of space between the two, how about gluing a piece of gasket material (something relatively hard and thick) to the pan at that point; kind of a heat shield.

            I did that. The 'effectiveness' may have only been in my head...but I did feel better about it.

            It's all about 'feelings', right?

          • diymirage

            diymirage HP@idle > hondaHP@redline

            Messages:
            19,920
            Likes Received:
            14135
            Joined:
            Oct 12, 2012
            Location:
            michigan
            Local Time:
            7:01 AM


            • Like Like x 1
            • mbaird

              mbaird mbaird

              Messages:
              6,129
              Likes Received:
              3002
              Joined:
              Dec 10, 2005
              Location:
              boise, Id
              Local Time:
              5:01 AM
              I have 1 7/8 race W2s and the Kevco 6qt pan... fits great.
              I would hammer a wedge in between the pan and pipe ... slow taper wedge.. Then heat up the pipe and use a heavy rubber mallet to whack the pipe against the wedge. Might work without anialating the pipe

            • mbaird

              mbaird mbaird

              Messages:
              6,129
              Likes Received:
              3002
              Joined:
              Dec 10, 2005
              Location:
              boise, Id
              Local Time:
              5:01 AM
              This is why I drop my car on the Motor/trany/ Kmember assembly. You can mock everything up out of the car and it takes about 15-20 minutes to get it bolted in.
              AND you dong scar up your paint. 20190120_172801.jpg 20190121_171426.jpg

            • jimjimjimmy

              jimjimjimmy lobsterman FABO Gold Member

              Messages:
              4,437
              Likes Received:
              1238
              Joined:
              Nov 2, 2010
              Location:
              p. e. i.
              Local Time:
              8:01 AM
              I would fix it right and not beat on anything but that's just me .

              • Agree Agree x 2
              • moparspares

                moparspares Well-Known Member

                Messages:
                580
                Likes Received:
                50
                Joined:
                Aug 10, 2010
                Location:
                Scarborough, Qld
                Local Time:
                6:01 AM
                Sometimes you just gotta beat on them. If you are using all the correct parts around them and they are still touching you have no other choice.

                • Agree Agree x 1
                • jimjimjimmy

                  jimjimjimmy lobsterman FABO Gold Member

                  Messages:
                  4,437
                  Likes Received:
                  1238
                  Joined:
                  Nov 2, 2010
                  Location:
                  p. e. i.
                  Local Time:
                  8:01 AM
                  take the pan off, cut out the interference, fit a new piece of metal, tig weld it . that's hot rodding .

                  • Agree Agree x 2
                  • canyncarvr

                    canyncarvr Well-Known Member

                    Messages:
                    129
                    Likes Received:
                    23
                    Joined:
                    Dec 31, 2011
                    Location:
                    State of Jefferson
                    Local Time:
                    4:01 AM
                    My Weller doesn't go up to 'tig'.

                  • 72bluNblu

                    72bluNblu FABO Gold Member FABO Gold Member

                    Messages:
                    10,996
                    Likes Received:
                    5442
                    Joined:
                    Nov 28, 2008
                    Location:
                    NorCal
                    Local Time:
                    4:01 AM
                    You’re crazy.

                    Drop the pan and dimple the headers. Doing what you describe is gonna damage everything.

                    Chasing oil leaks from the pan damage is going to be an even bigger pain than the interference you have now.

                    • Agree Agree x 1
                    • mbaird

                      mbaird mbaird

                      Messages:
                      6,129
                      Likes Received:
                      3002
                      Joined:
                      Dec 10, 2005
                      Location:
                      boise, Id
                      Local Time:
                      5:01 AM
                      He will have to pull headers to get the pan off. And pull the engine to get the headers off.
                      For those that have never installed an engine assembly from below it really is the easiest way once you figure it out.

                      • Disagree Disagree x 1
