upgrading a 1971 Dart ignition to a 1974 electronic style

[out west bob]

Can anyone show a "simple" wiring diagram for changing a 1971 Dart point system to a 1974 electronic ign system? Basically where the 5 wires from the ignition go to and the ballast unit? Looking at several different diagrams that I have confusion remains, lol.



[Kendog 170]



[Kendog 170]

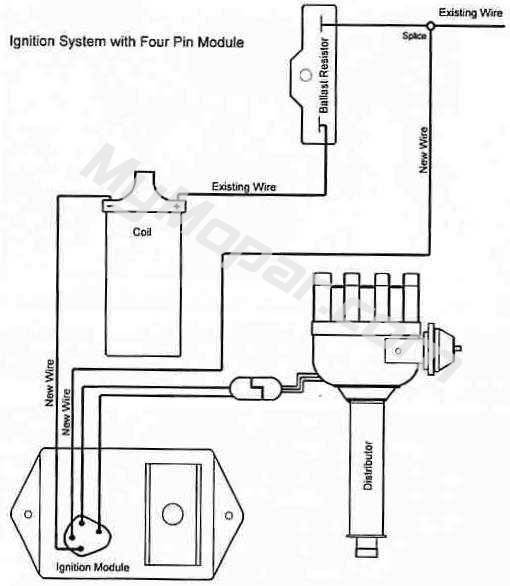

Here is the 5 pin version. 5 pin doesn't use the green wire.



[out west bob]

Thank you! I currently have the 5 pin job, but if it turns out to be no good, I'll use a 4 pin that I have.
