[SOLD] W2 heads, Cam, TTi headers Package deal

[darto]

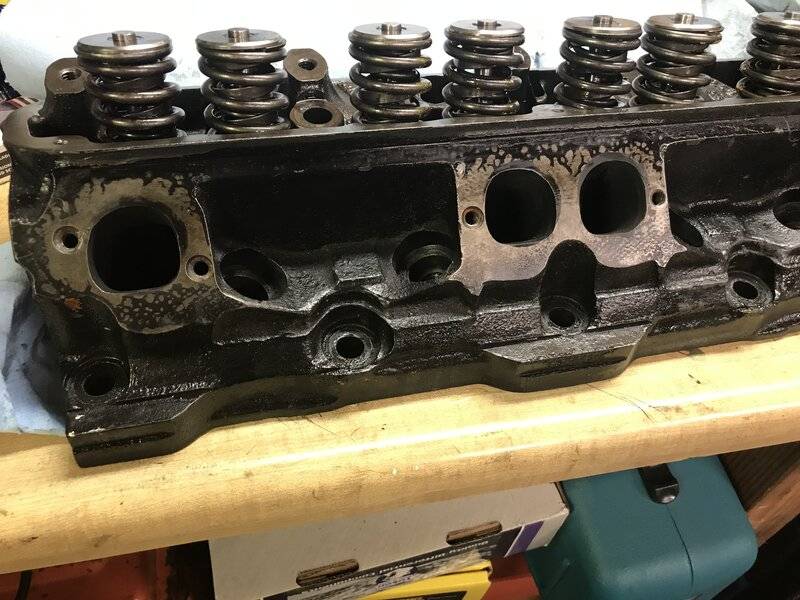

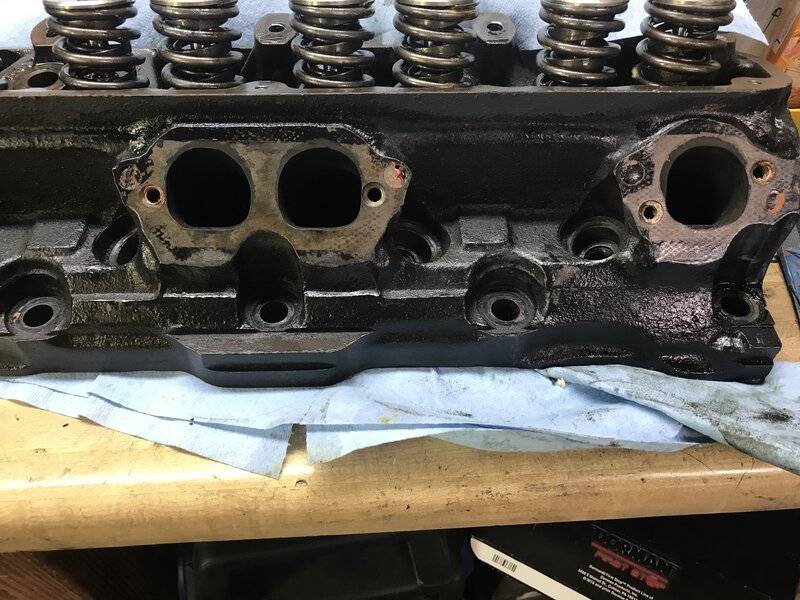

W2 heads 3870810 castings
One head has had a repair as shown in pictures. Didn’t hurt performance.
Has dual valve springs, bushed Roller Rockers.
In ok shape they do show some wear.
Removed from running car on 4/9/21

Package Includes

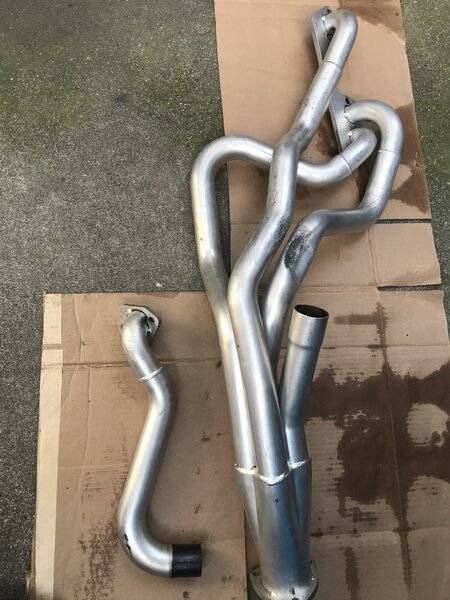

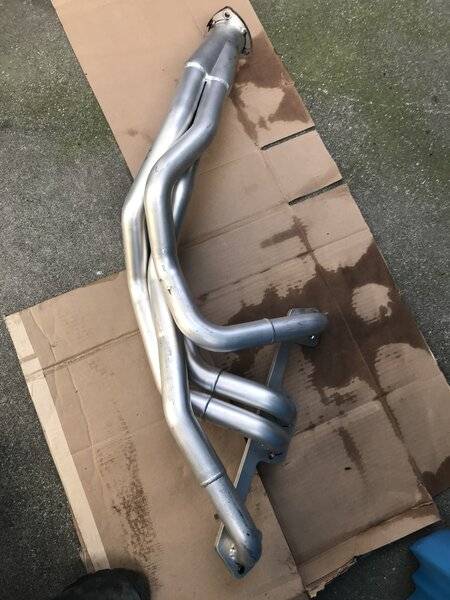

TTI ceramic coated headers with thermal coating for A body with W2 heads
They are scratched up and have a spot to gain clearance on the drivers side by the torsion bar.

Roller Solid lifters

ARP w2 head studs not pictured but included

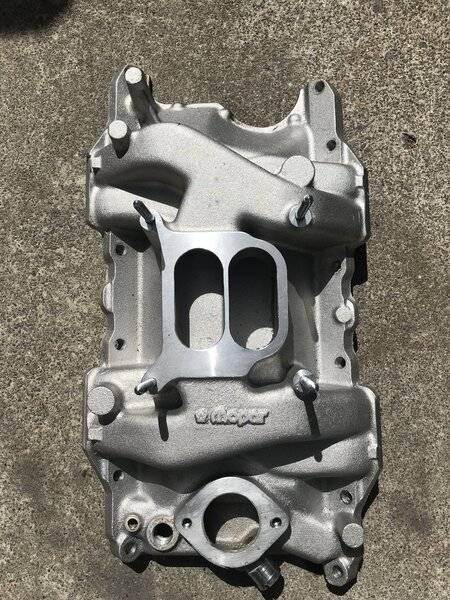

Mopar w2 dual plane manifold

Includes 2 solid roller cams and the oil pump distributor gears

Lunati Cam
.636/.636 lift
272/272 duration @.050
104 lobe separation

Hughes cam
.570/.585
261/ 264 duration @.050
110 lobe separation

All of it for $2100 obo. I’ll ship if you figure out the logistics.
Located in 95403.



[Demonic]

Who made the rocker arms?



[RustyRatRod]

@Bighead440



[LO23M8B]

Is the repair between the 2 cylinders? And what's the cc's on them? Thanks.



[RustyRatRod]

Who made the rocker arms?

Looks possibly like Norris.



[darto]

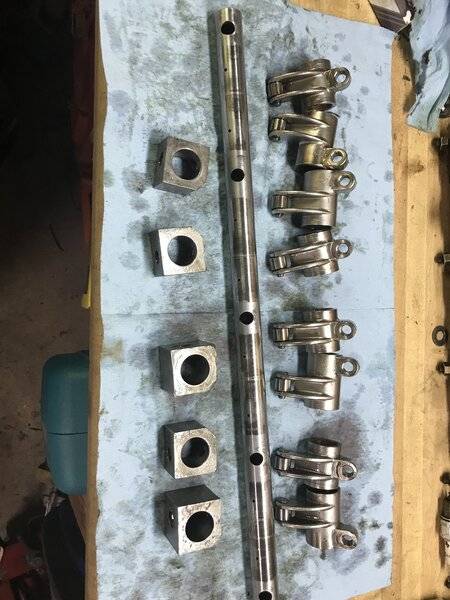

I think the rocker are Norris.

the repair is between the two middle cylinders as shown in picture #3.

I think they are 70 CC heads but not sure.



[RedB.]

Hello, have these heads been ported , also could you post a pic or two of the intake ports ? Thanks Red B.



[darto]

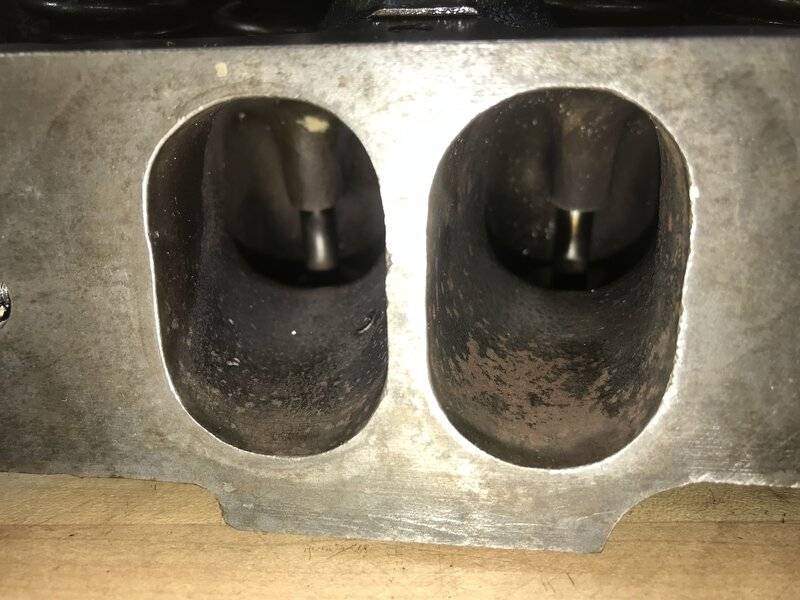

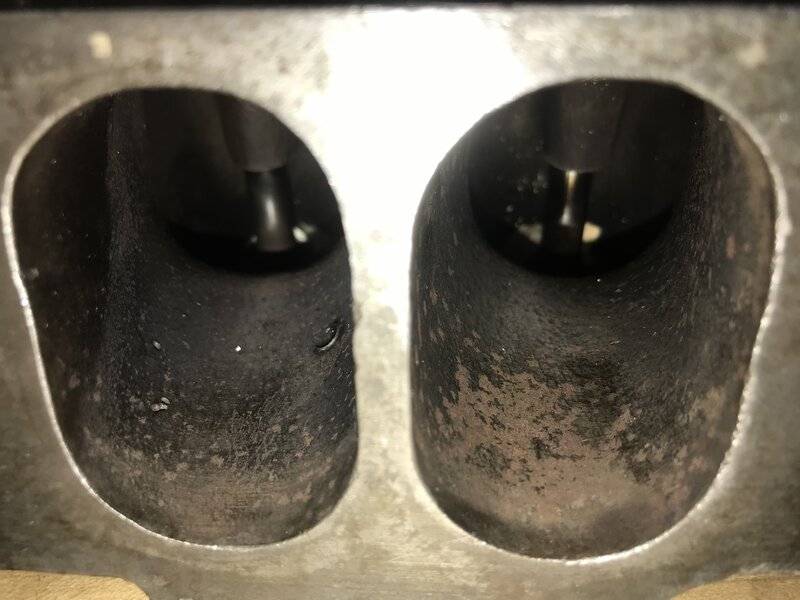

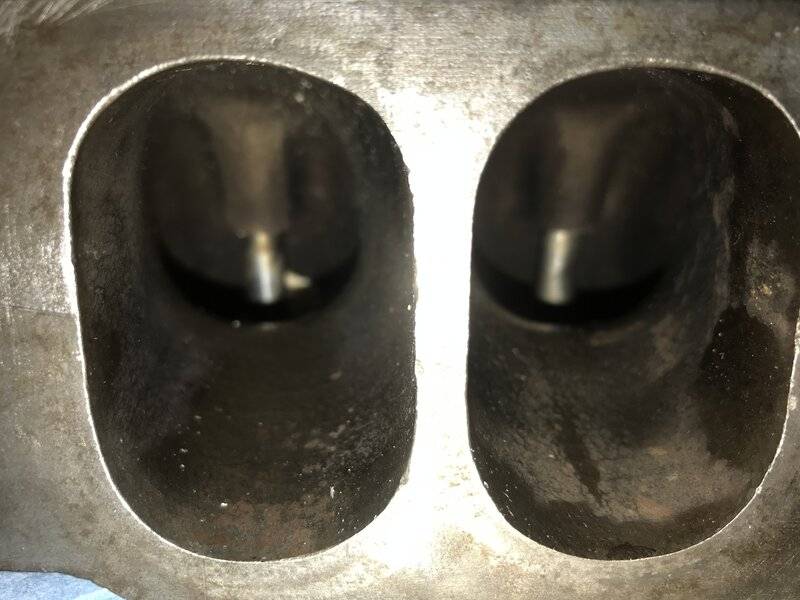

I don’t think they have been ported. The intakes measure out at 1.32 x2.0, within a few thousands of the intake manifold.



[rumblefish360]

I agree, those do not look ported.
IMO, this is a good deal, worth the price.



[darto]

Everything but the TTi headers have been sold or is pending sale with a deposit



[rumblefish360]

What is the bolt spacing of those W2 headers?
Price?



[yellow rose]

How much for the headers and what is the part number?



[darto]

Part number TTi-340AW2-C4
They are ceramic coated with a thermal barrier.

Bolt spacing is 3 15/16
1 5/8 to 1 3/4 tubes

price is $550



[yellow rose]

Too small for me. THANK YOU.

YR
