In the last chapter, we installed the timing chain cover and water pump... Now we are going to install the distributor gear, oil pump, and windage tray to get the engine ready to install the intake manifold in the next chapter... I prefer to finish the intake manifold before installing the oil pan because if you drop anything (like a nut, bolt, socket, tool, etc..) into the engine it will most likely end up in the oil pan... If you already have installed the oil pan, then you will have to remove it, clean off all of the gaskets, buy new gaskets (which are more expensive when purchased separately than when get get the whole engine teardown gasket kit),and re-install the oil pan after you found whatever you dropped into the engine...

You could install the oil pan now, but I like to play it safe... Since I am human and we all make mistakes, let's plan on making the mistake of dropping something in the engine and be ready for it when it happens so it's not as painful when it happens... This is why I do the oil pan last...

First I like to put the distributor drive gear in first... This is the gear that is driven off the cam and spins the oil pump... Since it's easier to access with the intake manifold off, I install it before the intake manifold... You will see what I mean when we get into it...

On the first engine that I built, I tried to put this gear in after the oil pump and intake manifold were installed and the hex at the bottom did not line up properly with the hex in the oil pump and destroyed the oil pump when I bolted the distributor down... The force of tightening the distributor hold down bolt destroyed the mating part in the oil pump... So I like to install the distributor gear first, then put the oil pump on next, so I can make sure the hex on the gear is properly lined up and engaged in the hex that drives the oil pump... Another lesson that I learned from my mistakes...


Mopar Performance offers a stronger gear that is recommended for high volume oil pumps... It has a thicker shaft that can handle more load... I use it in all of my builds and recommend you use it also...

Here it is in the Mopar Performance packaging...

DSC00223 B.JPG



Here's a close-up of the label with the part number...

DSC00225 B.JPG



Here's what it looks like... Also note that there is a pin on the Mopar Performance one for more strength to keep it from spinning on the gear under load...

DSC00230 B.JPG



Here I put both versions side-by-side on a shop towel to show the difference, the Mopar Performance one is on the top, and the factory gear is on the bottom... The difference in them is that the part of the shaft below the taper is thicker/stronger on the improved Mopar Performance one which gives it more strength... If the shaft fails, you loose the function of the oil pump, so you want this to be as strong as you can get because the engine needs oil pumping through it to run...

Dist Gear A01.JPG



Here I show the differences with the arrows...

Dist Gear A01 B2.jpg



A little closer view in the next two pictures...

Dist Gear A03.JPG



Dist Gear A03 B2.jpg



I did the same thing here with the new one from the package, the shiny one is the new Mopar Performance one and the black darker one is a stock factory original one... The lighting is not as good so it's a little harder to see, but you can see that the shaft is thicker on the bottom part of the Mopar Performance one than the stock one... The hex on the bottom of the shaft that drives the oil pump is the same size on both parts...


DSC00232 B.JPG



Here's a close-up...

DSC00234 B.JPG



The distributor drive gear goes in the distributor hole in the back of the engine... That's the big hole in on the driver's side on top of the block... There is a brass bushing in the hole at the back of the lifter valley below the distributor hole... Verify that the bushing is in there, or have one installed if it's missing...

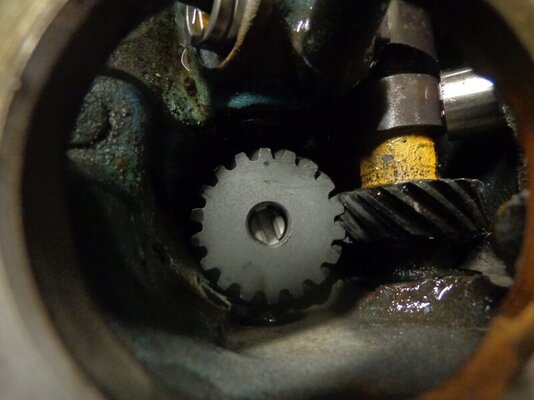

Here's the hole that the distributor gear goes into... The picture is a little blurry, but this is a good angle and I want to show it for clarity...

First make sure that the engine is at TDC, if not put it at TDC because the orientation of the slot in the top of the gear is what sets the #1 spark plug position on the distributor... The camshaft drives/spins this gear which turns both the oil pump and distributor... Two birds with one stone...

Start the gear in the bushing and gently press it down until it just contacts the gear on the back of the camshaft... When you install the gear, you want the slot to point to the #2 cylinder (the one on the front of the right bank/passenger side... This is because the gear is a helical gear (curved teeth on the gear) and turns when engaging with the gear on the camshaft... So by pointing the slot toward #2 cylinder when it just contacts the top of the cam gear, it will spin as it engages the cam gear and end up pointing to the #1 cylinder (the one in the front of the block on the driver's side)... It's a little tricky and you may not have it oriented correctly on the first try, just gently pry it up and try again until you get it... It even takes me more than one try and I've done it many times... That is why I do this with the intake manifold off - it's easier to pry it back up to retry when you have the manifold off...


Here is the gear when you first start to install it...


DSC00236 B.JPG



Here it is from a different angle... You can see the top of the gear is just below the top of the block...

DSC00238 B.JPG



Now here we are where the gear is just contacting the camshaft gear... You want the slot pointing like this toward the #2 cylinder so it's in the correct position when both gears are fully engaged...

DSC00246 B.JPG



Here it is with the slot pointing to #1 cylinder when both gears are fully engaged and the distributor gear is bottomed out... This try is a keeper...

DSC00247 B.JPG



Once again, close up... Here the gears start to engage...

DSC00255 B.JPG



Here they are fully engaged... Woo-hoo, you did it!!!

DSC00257 B.JPG



Now before we turn the engine upside-down, take a distributor - any Mopar SB distributor that you have laying around and put in the distributor hole and put the distributor hold down bracket and bolt in to keep the distributor in place... This keeps the distributor drive gear that we just installed from falling out when we turn the engine over to work on the bottom...

DSC00422 B.JPG



*************************************************************************

Now the engine is upside down...


DSC00449 B.JPG

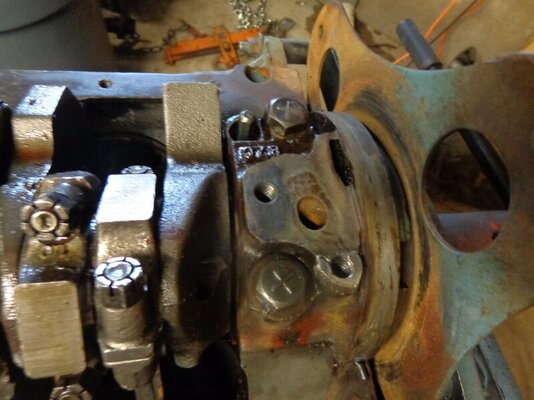

Here is a picture showing the distributor drive shaft sticking out of the rear main bearing... Ignore the windage tray for this picture as we haven't installed that yet...

DSC00458 B.JPG



Here it is with the green arrow and circle around it...

DSC00458 BK.jpg



Get out the taps and dies and clean the threads on the main bearing cap for the oil pump... Use the 3/8" x 16 coarse thread tap to chase the threads in the rear main bearing cap... If you not using new bolts, chase the threads on the used bolts with a 3/8" x 16 die...

DSC09045 B.JPG




DSC09048 B.JPG


DSC09051 B.JPG



DSC09053 B.JPG



DSC09058 B.JPG





Now get out the Gaskacinch...




Place the oil pump gasket and place it on the rear main to see what side goes toward the rear main... Then place the oil pump gasket with that side up and apply a coat of Gaskacinch and give it 15 - 20 minutes to set up... Then swab another layer of Gaskacinch on it and let it set for 10 - 15 minutes until it gets sticky/tacky...

DSC00475 B.JPG



When the gasket gets tacky, then place it on the rear main and use the two oil pump bolts to hold it in place until the gasket sticks to the rear main...

DSC00477 B.JPG



Only Gaskacinch the side that goes to the rear main and leave the side that goes toward the oil pump dry...
DSC00481 B.JPG



I recommend using a new oil pickup tube because it may be hard to clean all of the crud and debris out of an old used one... Screw the new pickup tube into the oil pump... Do not use any thread sealer, just screw it in dry... Don't worry about getting the pickup tube in the proper position, just estimate it for now, we'll adjust it later...


Then place the oil pump on the rear main and start the mounting bolts...

DSC00483 B.JPG



Here is the engine bolt torque page from the 68 Plymouth service manual...




The oil pump is 3/8" x 16 thread and takes 30 foot pounds of torque...




Torque both oil pump bolts to 30 foot pounds...




*************************************************************************
Now we move onto the windage tray... The 273 and 318, did not come from the factory with a windage tray, I haven't torn down a factory 360 to know about them... However you can use one if you wish... The windage tray keeps the wind from the crankshaft spinning and splashing oil from the oil pan as it spins, especially at higher RPM's... You can add a windage tray to any small block, they do sell windage trays you will have to find the bolts...

The #2 and #4 main bearing caps have special bolts with longer tops to attach a windage tray to... The windage tray uses a 1/4" x 20 thread to attach it to the main bearing bolts... If you are using a used set of main bearing cap bolts for a windage tray chase the threads with a 1/4" x 20 coarse tap... Then chase the windage tray attaching bolts with a 1/4" x 20 coarse thread die...



Mancini Racing Oil Windage Tray


You can see the special main bearing cap bolts on the #2 and #4 main bearing caps in the next two pictures here...







Place the windage tray on the engine... The factory service manuals do not call out a torque for the windage tray attaching bolts, but looking at the 68 Plymouth service manual for a similar 1/4" x 20 coarse thread, it calls out 100 inch pounds...




The factory service manuals do not call out a torque for the windage tray attaching bolts, but looking at the 68 Plymouth service manual for a similar 1/4" x 20 coarse thread, it calls out 100 inch pounds...




*************************************************************************

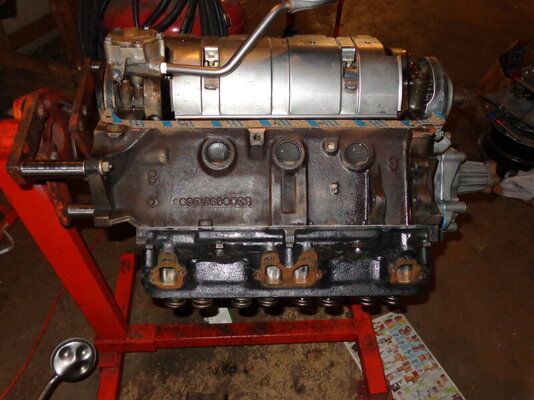

Now the distributor drive gear, oil pump, and windage tray are installed....

The next step is to install the intake manifold...
