1969 Dodge Dart Swinger clean up

-

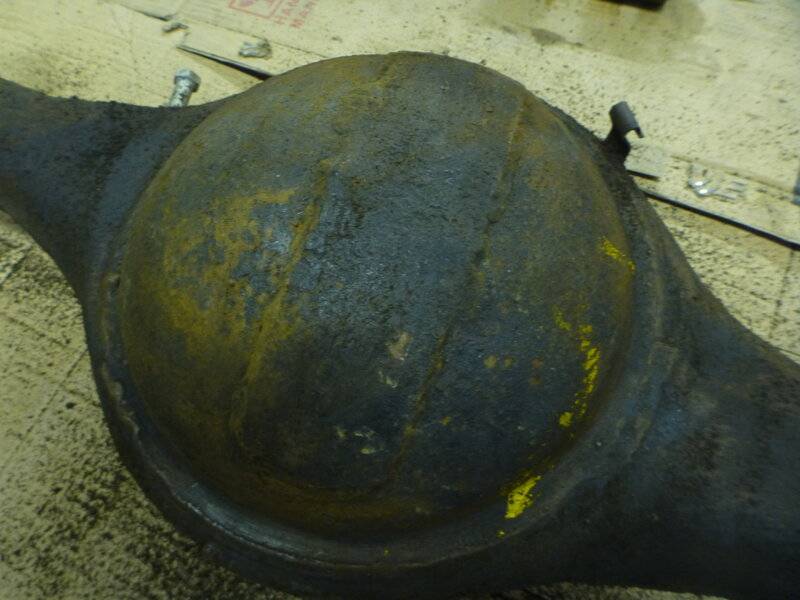

Wire brushed some crud off for a better look at the battle scar repair. Can't decide to go with it for history or fix it. Still signs of assembly line markings in Yellow.
1969dartcleanupweek11 014.JPG

Amazing what you can see when you put new peel offs on the glass and clean the lights !
1969dartcleanupweek11 022.JPG

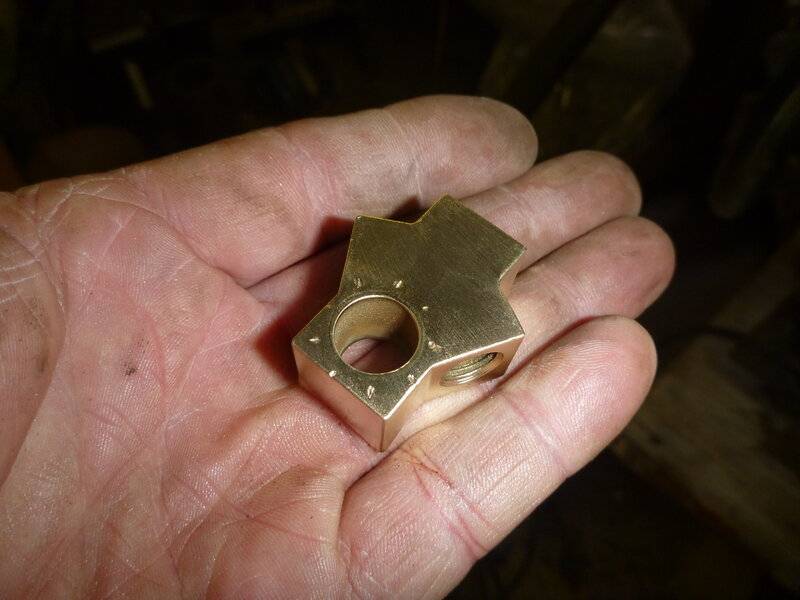

Rear axle brake line splitter cleaned up.
1969dartcleanupweek11 025.JPG

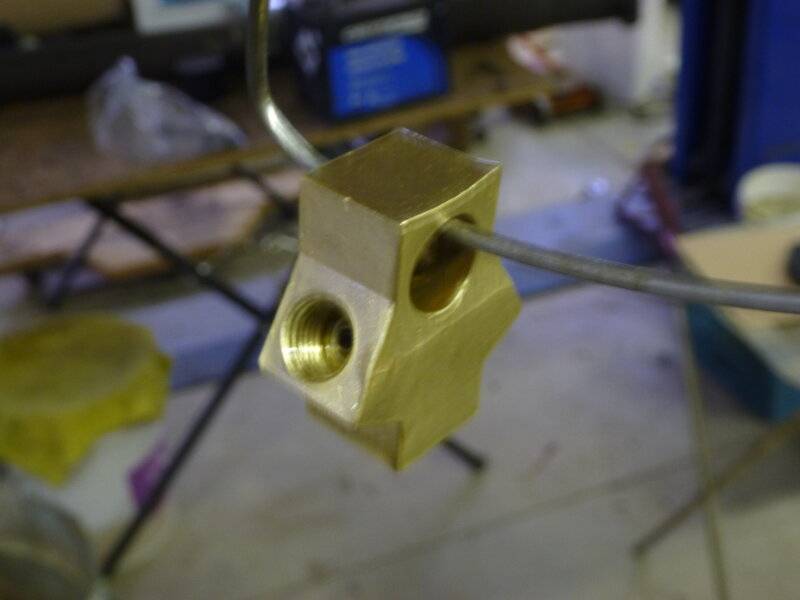

...and clear coated with Tremclad anti-tarnish.
1969dartcleanupweek11 032.JPG

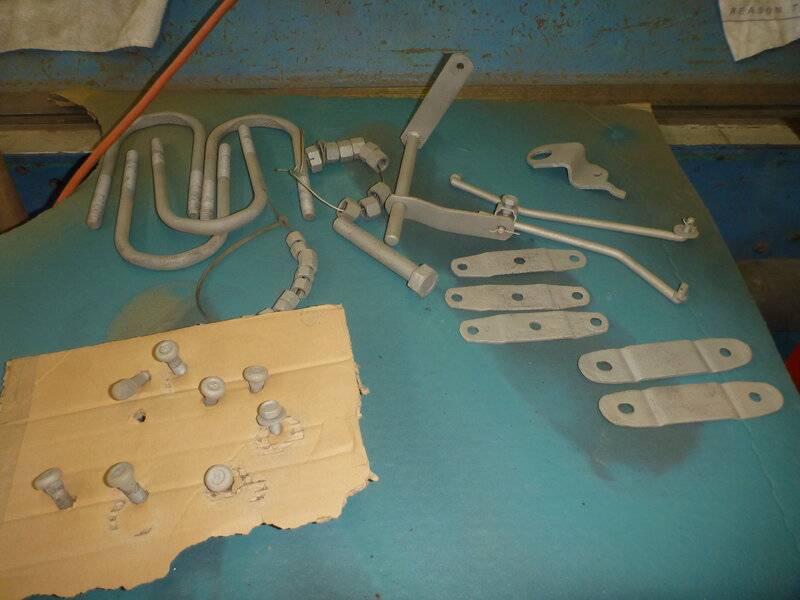

A couple hours of blasting in the morning.
1969dartcleanupweek11 027.JPG

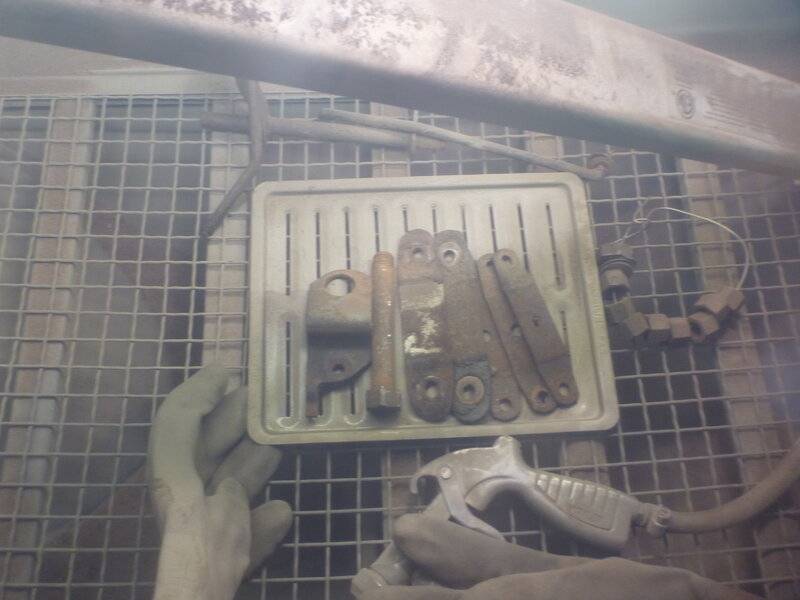

..and a few more hours of blasting in the afternoon.
1969dartcleanupweek11 030.JPG

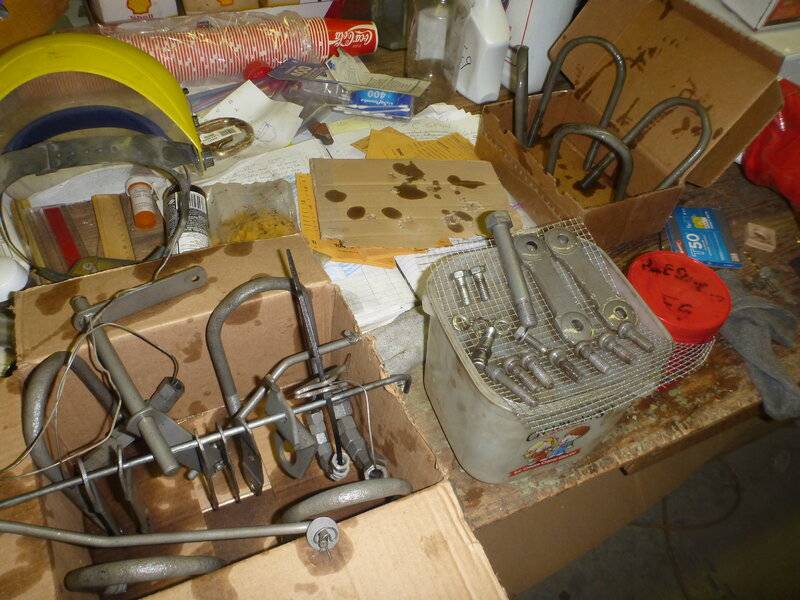

Out of the blasting cabinet and into the T-9 Boeshield. 8 rear axle U bolts and 16 nuts to choose 4 nice sets from.
1969dartcleanupweek11 038.JPG

New studs and nuts for the leaf spring front hangers. Out of the package and through the T-9 dunker.
1969dartcleanupweek11 039.JPG

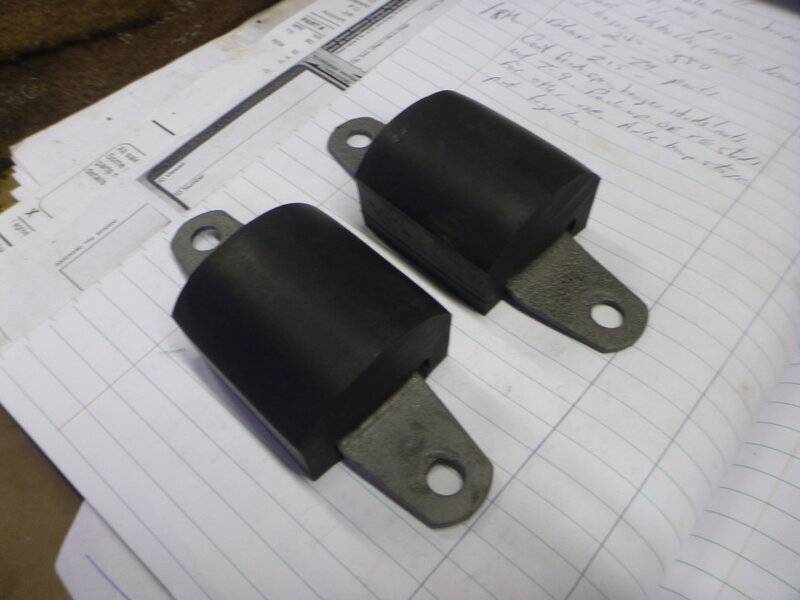

Refurbished axle bump stops. Mounting plates media blasted then coated in T-9. The rubbers were soaked in 100LL for a night which stripped them of all undercoating and gooo, making them look like new.
1969dartcleanupweek11 041.JPG

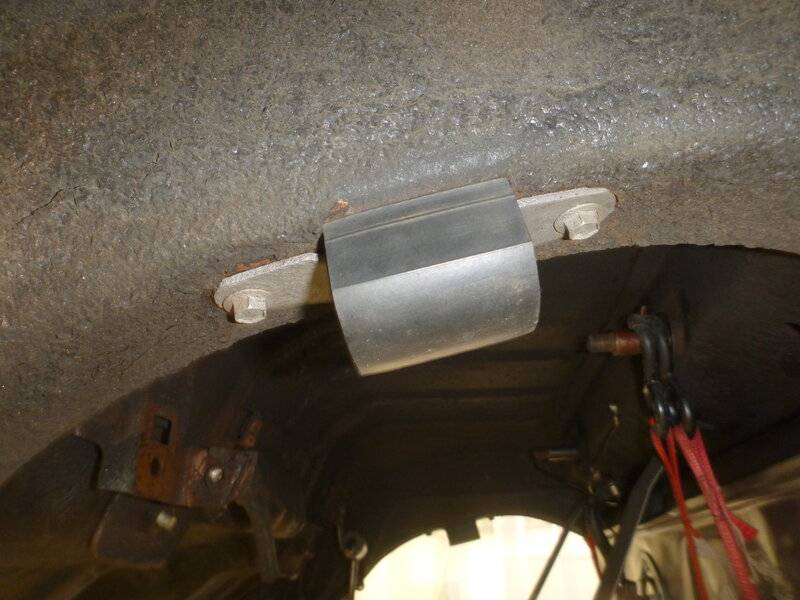

Back in place on the car. A quick shot of undercoating around the brackets will blend them right back in.
1969dartcleanupweek11 044.JPG

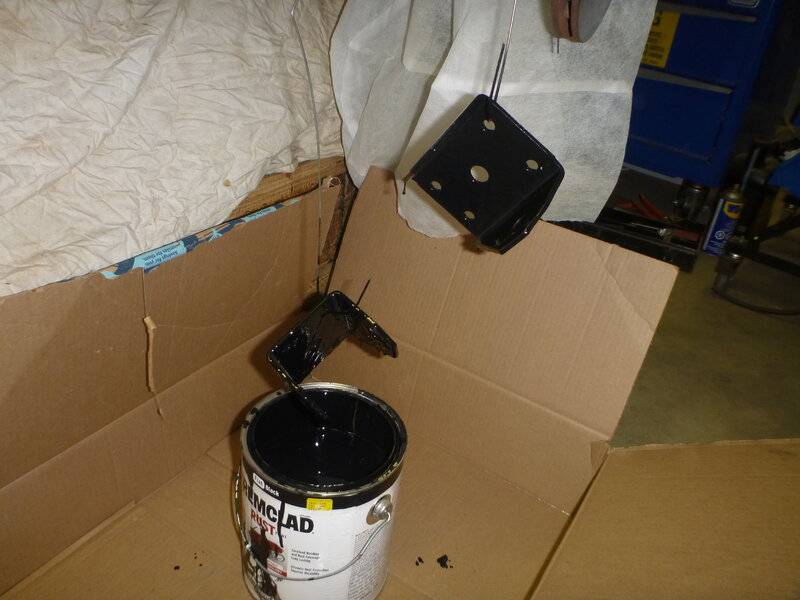

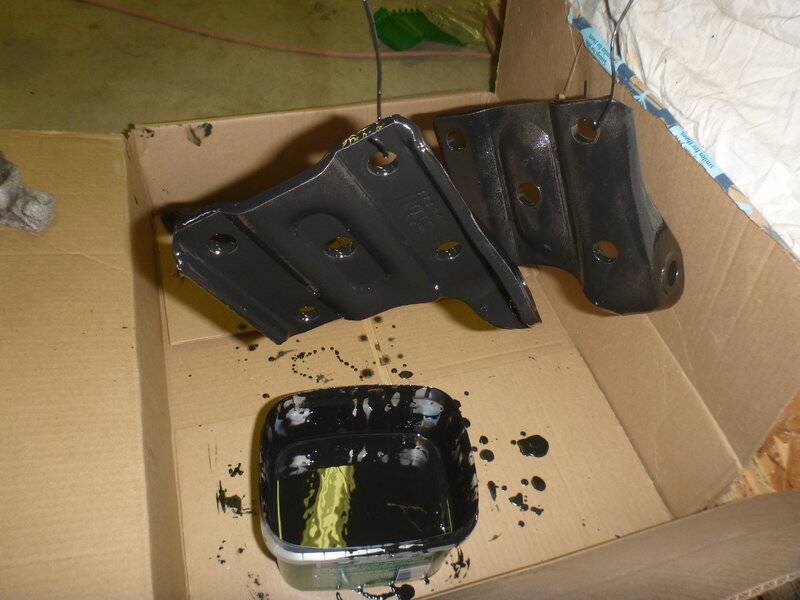

Dipped the front leaf spring hangers in Flat Black.
1969dartcleanupweek11 052.JPG

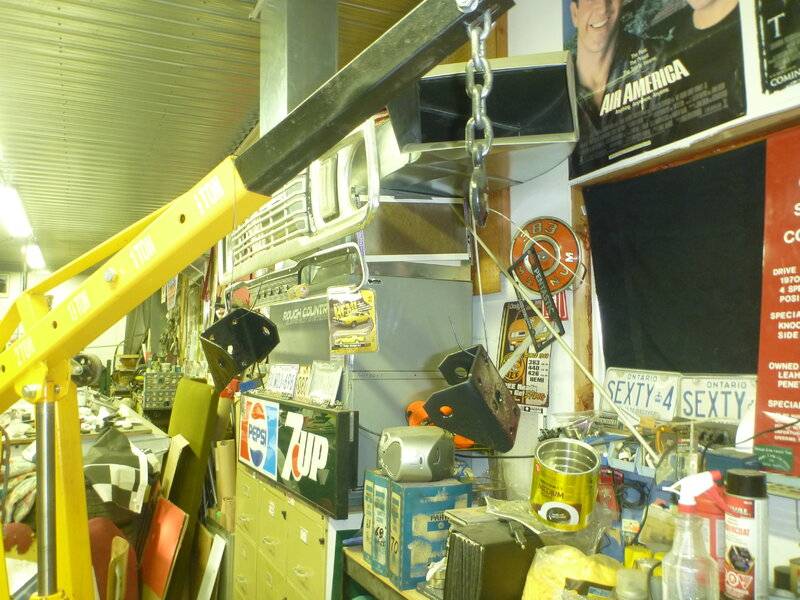

Leaf spring hangers hung in front of the baker.
1969dartcleanupweek11 071.JPG

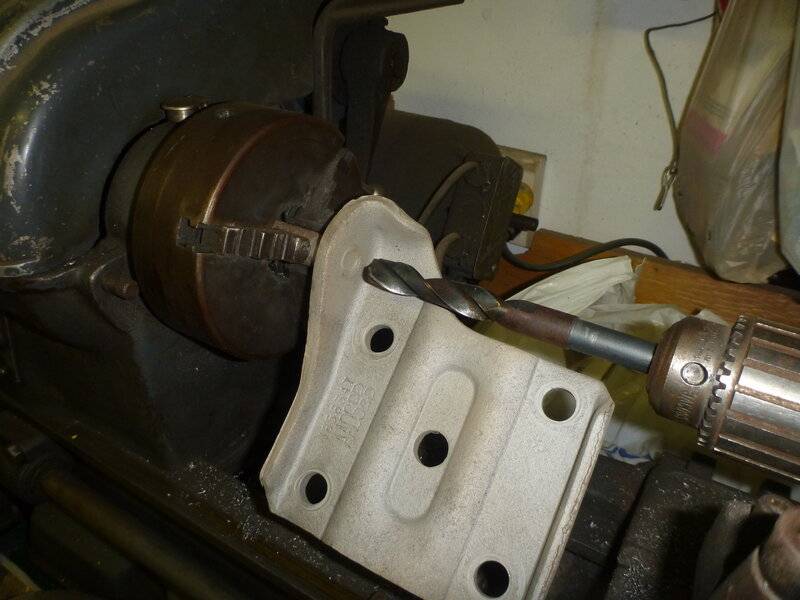

No guessing center this way. Broken shock stud in the chuck and marking the back side for center to drill it out to 5/8" for new studs. NO I didn't turn on the lathe, turned the chuck by hand...
1969dartcleanupweek11 058.JPG

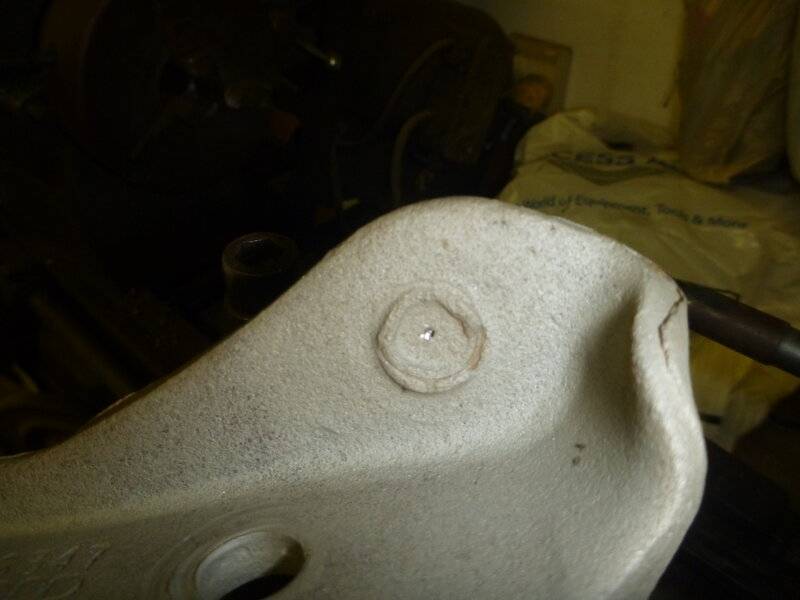

True center marked.
1969dartcleanupweek11 062.JPG

Replacement shock mount studs to bolt on.
1969dartcleanupweek11 075.JPG

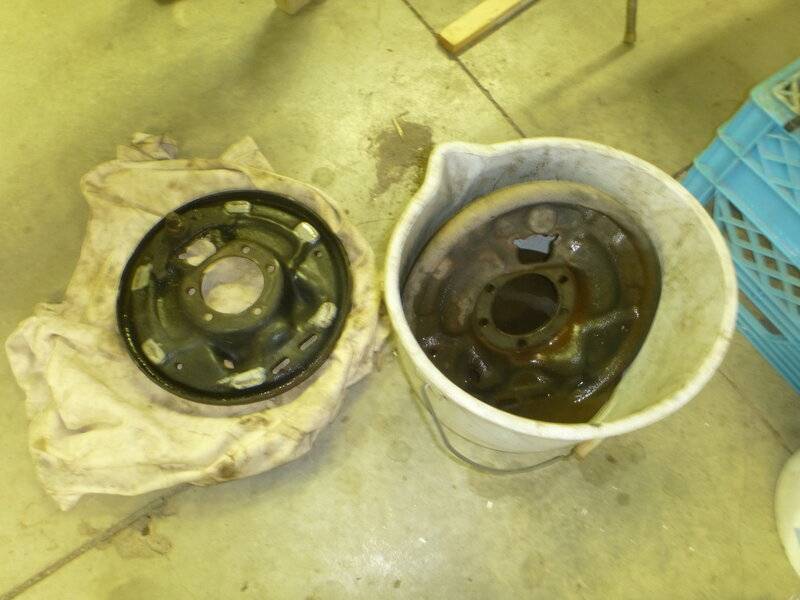

Brake backing plates degreased.
1969dartcleanupweek11 063.JPG

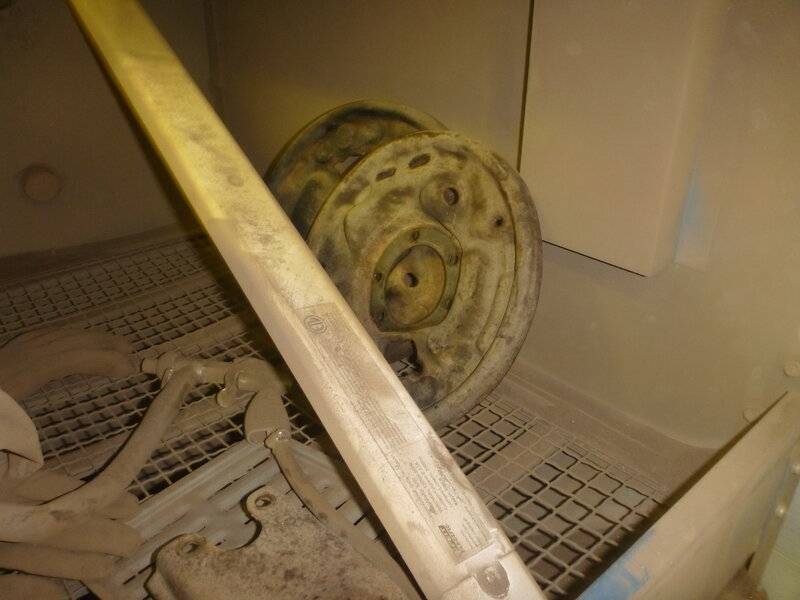

..and more stuff in the cabinet. It never seems to end..
1969dartcleanupweek11 065.JPG

Surprised you didn't drill and tap shock plate. Then cut shock stud so a little sticks out and weld stud in.:D Saw that shock plate in the lathe on fbbo. Came here to see what's up.

If I had a 5/8 fine thread tap I just might. Haven't cut the old stud off yet, just marked for drilling. Bolted them on on the Bee, no sign of them coming loose and if your crawl under the car to see the retaining nut I may just drive over you! :lol:

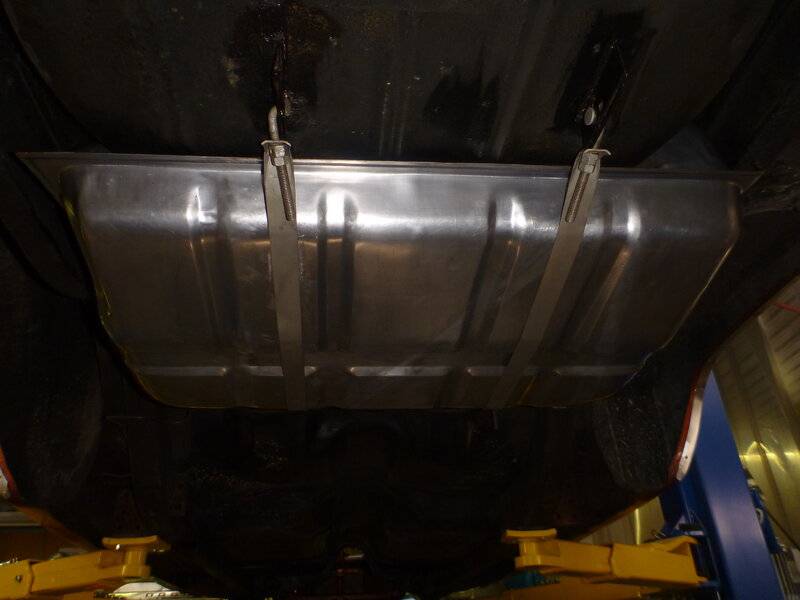

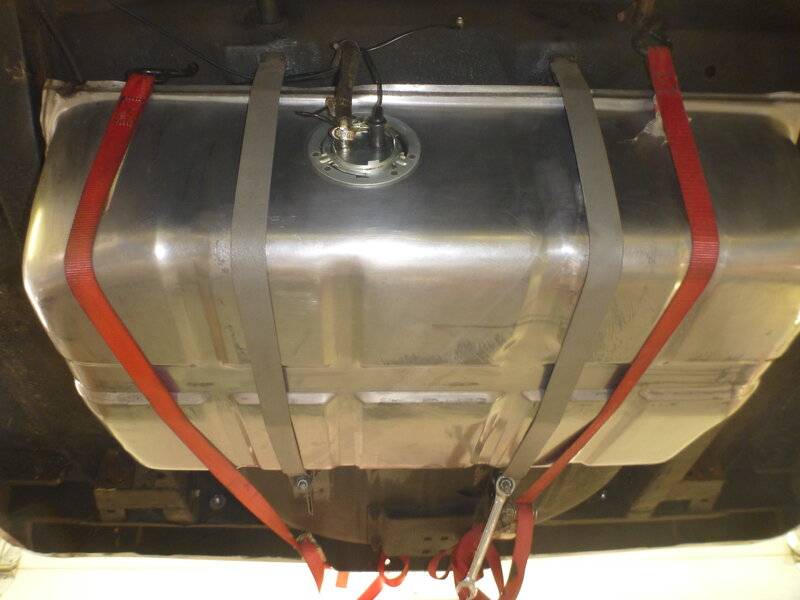

Fuel tank straps going back on, trying to get an afternoon of work in without leaning over the blasting cabinet.
1969dartcleanupweek11 077.JPG

Weird how the A body is done opposite direction to a B body, but what ever holds it on I guess!
1969dartcleanupweek11 082.JPG

Centering holes, that I marked yesterday, drilled part way into the shock mount stud from the back side and then the broken stud cut off
1969dartcleanupweek11 084.JPG

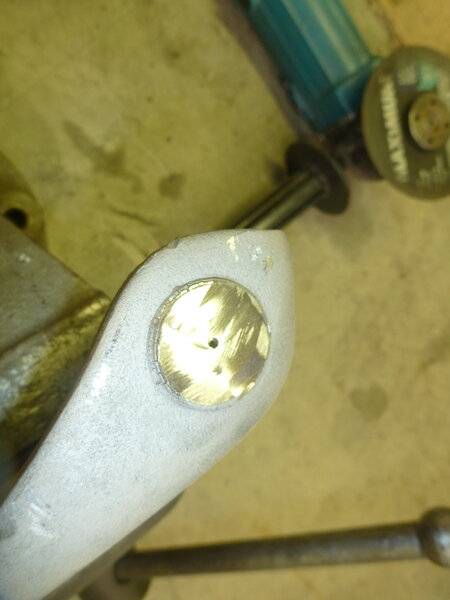

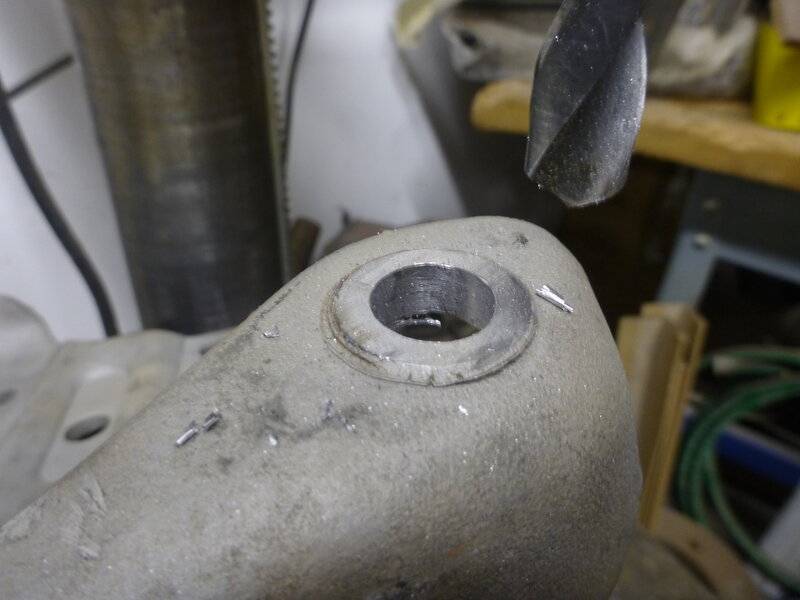

Step drilled, with final size 5/8". I purposely cut off the broken studs leaving a proud boss, to give a nice flat surface for the replacement studs to sit on.
1969dartcleanupweek11 090.JPG

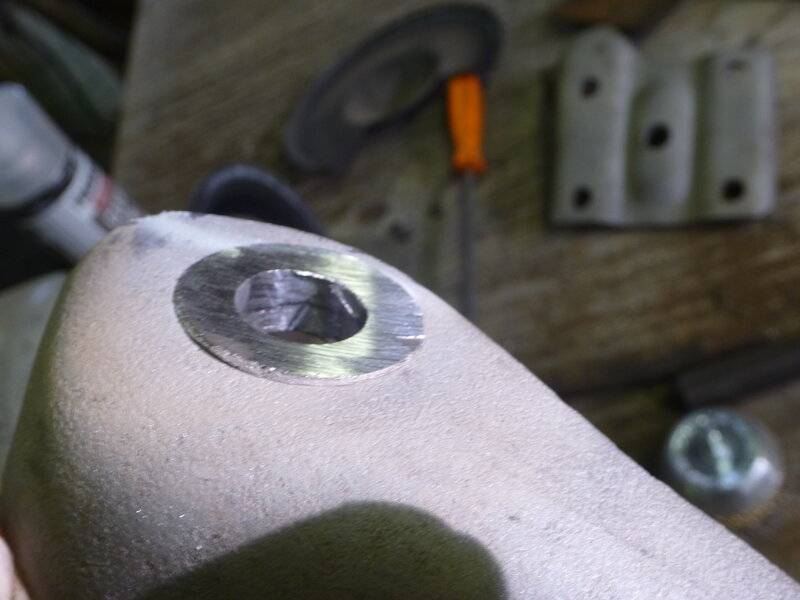

"Boss" ground smooth with just enough to act as a flat washer.
1969dartcleanupweek11 093.JPG

Test fit of the replacement studs after clean up.
1969dartcleanupweek11 094.JPG

A quick blast again in the cabinet to clean up scuffs and grinding marks, and then dunked in my Semi-Gloss paint mix left over from when I painted the K frame.
1969dartcleanupweek11 100.JPG

Pinion snubber plate blasted and then T-9'd.
1969dartcleanupweek11 104.JPG

Pressing in the new front hanger studs.
1969dartcleanupweek11 106.JPG

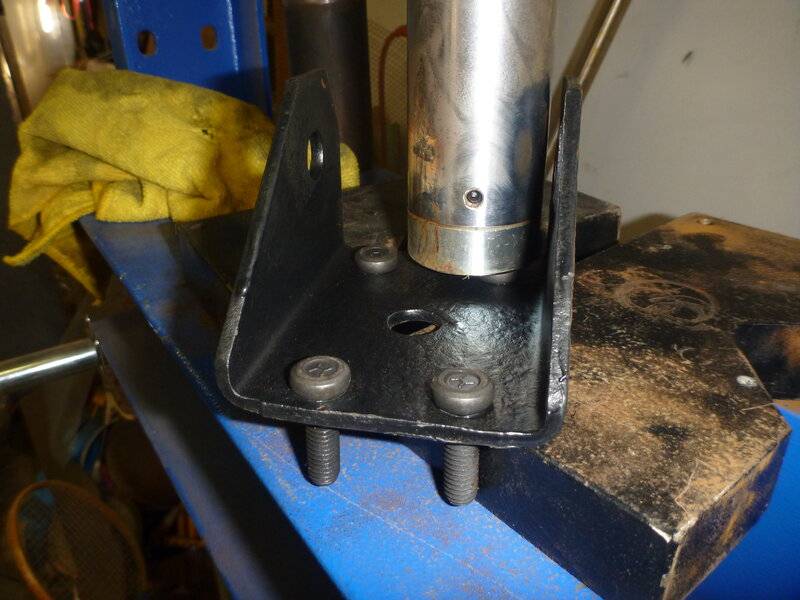

Last one in, repeat for the other hanger.
1969dartcleanupweek11 111.JPG

Amazing what pops out in the blasting cabinet.
1969dartcleanupweek11 117.JPG

Figured I'd wire wheel the housing to get the main crud and then, hopefully, just give it a quick blast before paint.
1969dartcleanupweek11 118.JPG

My shop safety note. This is after about 25 seconds of wire wheeling even with my window exhaust fan running. Fresh air hood on before I continue.
1969dartcleanupweek11 119.JPG

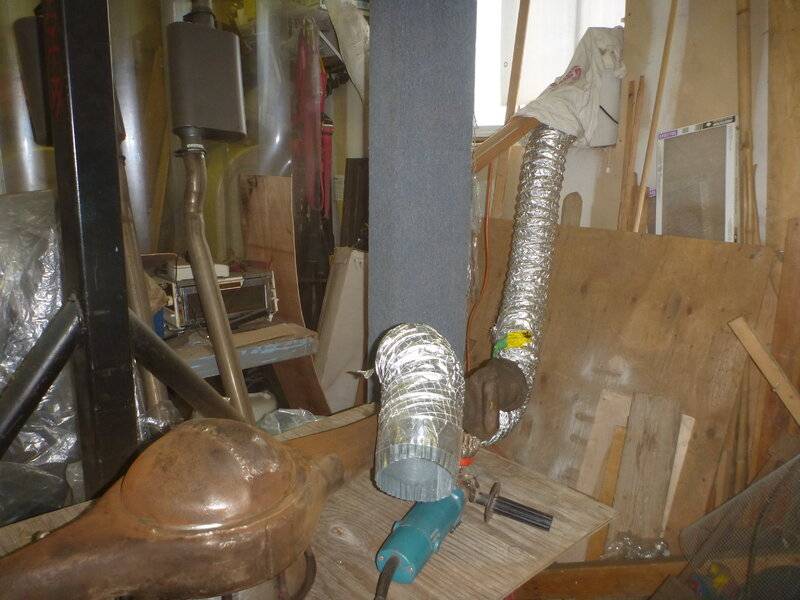

My redneck dust extractor ready to go for tomorrow...
1969dartcleanupweek12 008.JPG

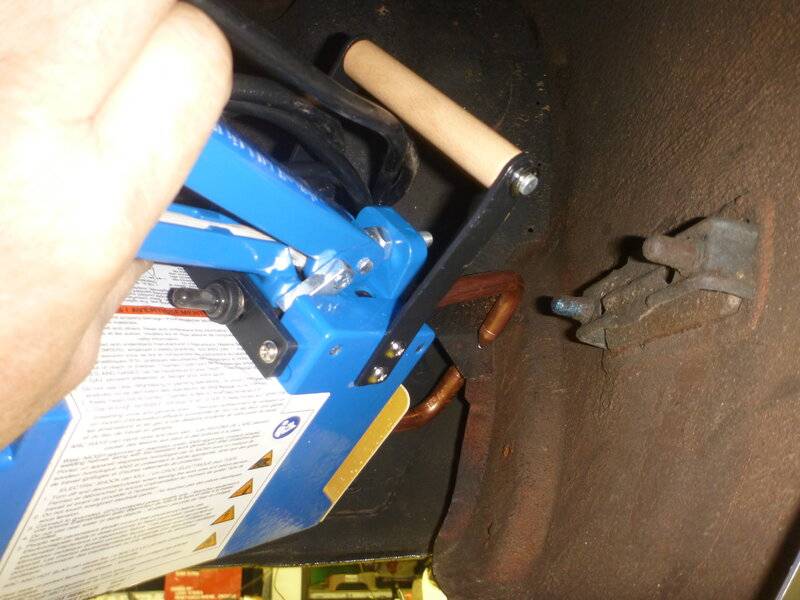

..and neat that my cheap spot welder arrived on Purolator about 10 minutes after I noticed that the right fender to headlight bucket's spot weld had let go. Can just get the unit up in there to weld it.
1969dartcleanupweek12 013.JPG

A pleasure to read your posts - hats off! Maybe the temperatures get better and you can clean the axle housing outside.

Cheers Wolfgang

Was on sale for $189.99 vs $259.99 and free shipping to boot. My Purolator freight shipping was $100.64... PA covered the first 100 bucks!
princessautotoys 003.JPG

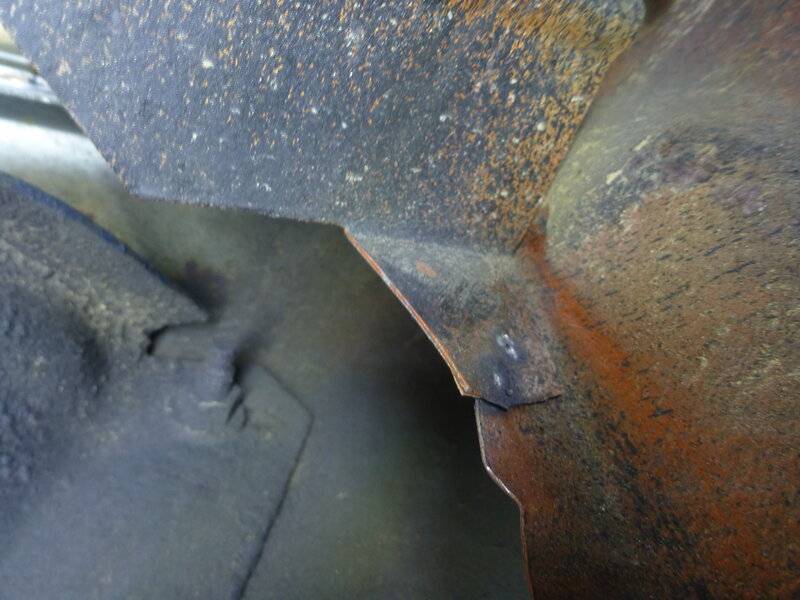

A couple short zaps and they're one again.
1969dartcleanupweek12 018.JPG

Worked pretty good, even with the paint and grime.
1969dartcleanupweek12 020.JPG

Leaf spring lower shock brackets came out nice, dipped in Semi Gloss and heat baked. Installed the new shock studs for the last time.
1969dartcleanupweek12 022.JPG


That's it for today, got too many projects in the oven at once..

Just in from Florida, more parts. Easier than fixing the bastardized lid that's on the car.
1969dartcleanupweek12 026.JPG

An original untouched OE wrinkle finish unsilenced air cleaner assembly and a pair of dent free '69 rocker covers.... that someone left in a sink it appears. More stuff to blast.
1969dartcleanupweek12 027.JPG

If only Black came in one shade.
1969dartcleanupweek12 035.JPG

Lid given a quick coat of paint to cover up a few bare spots but not lose the texture.
1969dartcleanupweek13 004.JPG

Rust Check Flat was the "shade" winner.
1969dartcleanupweek13 009.JPG

Nice refreshed factory finish without any work.
1969dartcleanupweek13 008.JPG

1969 breather scuffed and painted Semi Gloss.
1969dartcleanupweek13 011.JPG

Vacuumed out the frame rails today.
1969dartcleanupweek13 012.JPG

Finished up the wire wheel job on the axle housing, ready for media blast.
1969dartcleanupweek13 023.JPG

Figure I may as well do all the spring leafs that won't fit the blast cabinet and I can then just give a quick blast when doing the axle housing in a "tent"..
1969dartcleanupweek13 030.JPG

Having a blast again today. Rear axle brake backing plates loaded into the cabinet.
1969dartcleanupweek13 033.JPG

All cleaned up, as well as some wheel adapters I picked up to go from 4" to 4.5" bolt pattern and some misc items.
1969dartcleanupweek13 047.JPG

Was wondering why I was starting to eat more dirt, and then it became clear...
1969dartcleanupweek13 053.JPG

Fortunately I was proactive for once in my life and have spares!
1969dartcleanupweek13 054.JPG

It's BBQ season again...
1969dartcleanupweek13 055.JPG

Fakes the factory Black Phosphorous finish pretty darn close once it cures.
1969dartcleanupweek13 058.JPG

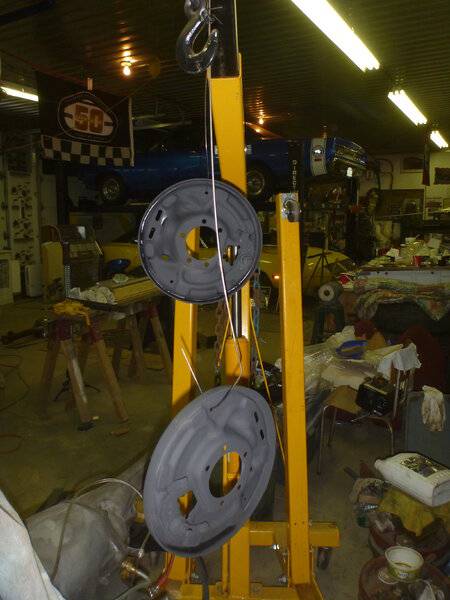

Hung to bake..
1969dartcleanupweek13 071.JPG

Back to those wheel adapters above, that I bought from a member here. Just want to show the importance of cleaning used items before putting them into use. I have a set of mint 4.5" bolt pattern Road Wheels, with fairly fresh rubber, that I was considering rotating onto the car to be more "year" correct so I bought this pair of adapters for the back and my fronts I can move the studs from 4.0 to 4.5 on the aftermarket hubs.

As received, looking good.
1969dartcleanupweek13 035.JPG

After blasting the crud off... not so good.
1969dartcleanupweek13 050.JPG
1969dartcleanupweek13 051.JPG

A better true colour shot of how the BBQ paint simulates Black Phosphate fairly well.
1969dartcleanupweek13 073.JPG

6 leafs done in the cabinet, 6 left to do outside when it warms up a tad.
1969dartcleanupweek13 075.JPG

Deja vu. Time to see if these rusty looking '69 covers will clean up.
1969dartcleanupweek13 077.JPG

Never judge a book by it's cover...
1969dartcleanupweek13 078.JPG

From ugly to the nicest pair of rockers covers I've probably ever had in my hands. Not a single dent.
1969dartcleanupweek13 080.JPG

They, like the last set, need new wiring tabs though. Getting good at this..
1969dartcleanupweek13 084.JPG

Tab off, note the hint of factory Turquoise paint remaining. 1969 only on the 340 engine.
1969dartcleanupweek13 095.JPG

Spot welds ground smooth, spot blasted to clean up, ready for new wiring tabs and paint.
1969dartcleanupweek13 098.JPG

Rocker cover wiring clip deja vu !
1969dartcleanupweek13 099.JPG

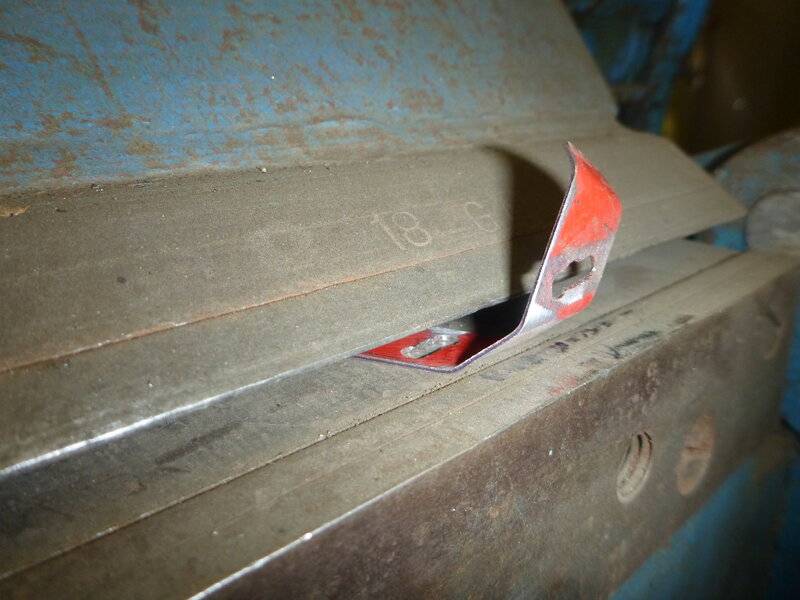

Three new clips ready to dip and weld into place.
1969dartcleanupweek13 100.JPG

Original dip coating cracked off, but I know exactly what it looked like for coverage.
1969dartcleanupweek13 109.JPG

An organizer tray is the perfect size for a dip tray.
1969dartcleanupweek13 113.JPG

That worked nice..
1969dartcleanupweek13 115.JPG

Should have bought one of these a long, long, time ago!
1969dartcleanupweek13 138.JPG

Wiring clip in place with two spot welds. (OE is one big one, about 1/4" in diameter)
1969dartcleanupweek13 140.JPG

Inside the cover showing spot welds. Just a quick trigger hold and makes a perfect weld.
1969dartcleanupweek13 149.JPG

Three new clips welded on and the big clip dipped. Paint tomorrow for this one.
1969dartcleanupweek13 146.JPG

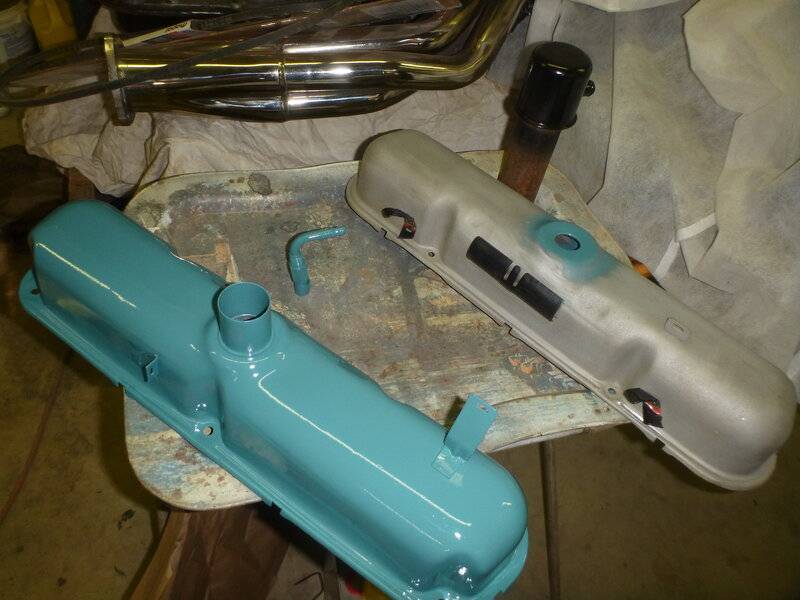

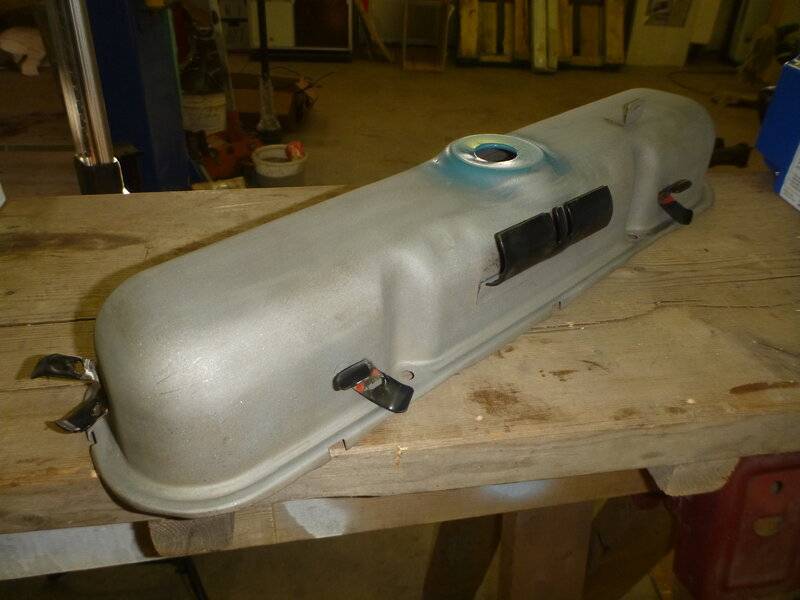

One cover painted, PCV valve as well. Under the furnace heat outlet for the night.
1969dartcleanupweek13 150.JPG

Time to make some new leaf spring "interleafs".
1969dartcleanupweek13 130.JPG

26 gauge galvanized sheet. You can buy a LOT of these at Lowes for the price of one rebuild kit from a supplier. And I haven't had much luck with rebuild kits matching OE interleaf lengths.
1969dartcleanupweek13 129.JPG

10 interleafs cut out and drilled with a unibit for the bolt hole.
1969dartcleanupweek13 133.JPG

New vs old interleafs.
1969dartcleanupweek13 134.JPG

Glad to hear the positive feedback on the Princess Auto Spot Welder.

I think I’ll buy one next time it’s on sale.

Any thoughts on manufacturing those valve cover wire tabs and selling on FABO...?

I read somewhere it was to protect the wiring harness from the exhaust crossover and choke well on the passenger side.

I might be mistaken....

Seems weird to take the wires up from the small clip and then back down, let alone that long tray that would retain more heat, but I guess it makes sense. Oh well, at least I have the correct covers now! LOL

Seems weird to take the wires up from the small clip and then back down, let alone that long tray that would retain more heat, but I guess it makes sense. Oh well, at least I have the correct covers now! LOL


I remember researching at one time what that long clip was for since my valve covers didn’t have it. I think it’s a ‘69 340 only feature. My valve covers must be off a ‘69 318.

-
