1971 Duster 727A Transmission is Missing Dust Shield

[Duster256]

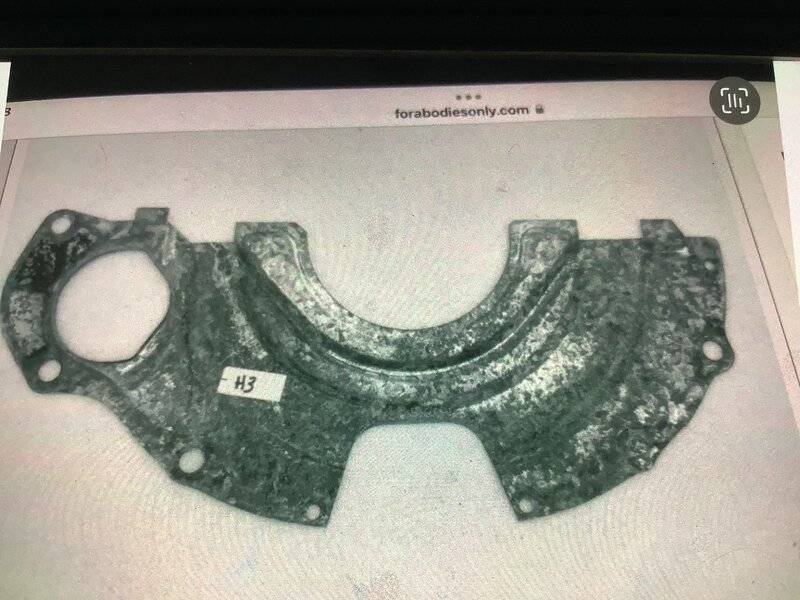

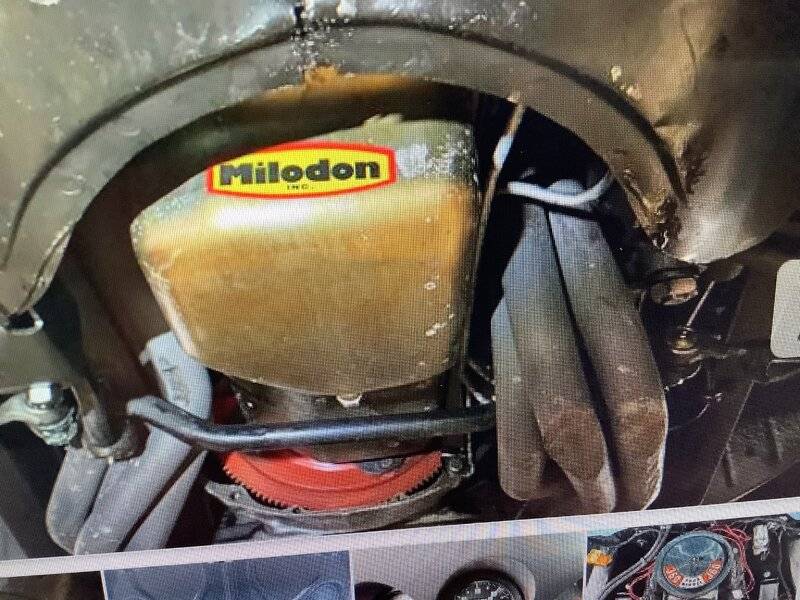

My car was formerly a race car, which I suspect is the reason why there is no dust shield on the lower half of the bellhousing - see attached pix of under my car and of an example dust shield.

My car is strictly for street use now, and my concern is road debris getting into the bellhousing, ring gear, etc. Is my concern justified and should I install a dust shield? Opinions welcome - thanks FABO nation. Dave



[remytherat]

Can’t hurt. Though I wouldn’t worry about it too much depending on how much you drive and in what conditions.



[Oldmanmopar]

The dust shield pictured is for a big block, Looks like your trans is a small block



[Icetech]

I have never ran one, BUT... wouldn't hurt.. and stupid **** can happen



[Plymouth 65]

Yes, especially if it's a street car. 65



[DartGT55]

My car was formerly a race car, which I suspect is the reason why there is no dust shield on the lower half of the bellhousing - see attached pix of under my car and of an example dust shield.

My car is strictly for street use now, and my concern is road debris getting into the bellhousing, ring gear, etc. Is my concern justified and should I install a dust shield? Opinions welcome - thanks FABO nation. Dave

View attachment 1716324558

View attachment 1716324559

Ya mine was the same way still looking for one to fit



[remytherat]

I had to cut parts off the top to make mine clear my magnum flexplate. Watch out as clearances can be tight



[DartGT55]

I had to cut parts off the top to make mine clear my magnum flexplate. Watch out as clearances can be tight

Tell me about it every thing so close but for now it’s off winter comlng very soon and the car will be sleeping for the winter but until then it’s off



[Duster256]

The dust shield pictured is for a big block, Looks like your trans is a small block

Right OMM - just an example. Ebay has some small block shields for 727s, with a big cutout at the bottom to access the torque converter drain plug . . . which to me defeats the purpose of a shield?



[Duster256]

Might end up fabricating one out of galvanized sheet metal, just enough to cover that exposed area, with a couple of notches along the bottom edge for drainage (you never know when you run into wet roads).



[remytherat]

Right OMM - just an example. Ebay has some small block shields for 727s, with a big cutout at the bottom to access the torque converter drain plug . . . which to me defeats the purpose of a shield?

View attachment 1716324740

The bottom is supposed to have another little cover. Though it is often missing.
