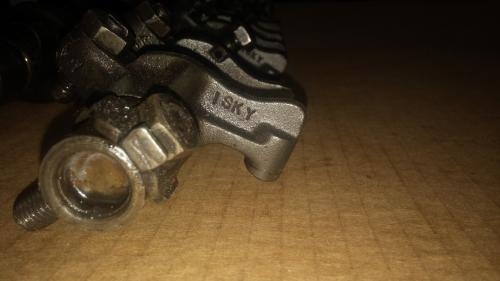

Forsale is a crane cam Zip510, Isky adjustable rockers, push rods and lifters pulled from my 383..going with a different setup. Everything looks in good condition
Cam Specs:
ZIP-510 for the B/RB was a dual pattern camshaft .340" intake lobe lift, .3455" exhaust lobe lift, providing a gross valve lift of .510" intake, .518" exhaust with the standard 1.5:1 rockers. Valve lash is .028" intake, .032" exhaust at operating temperature. The duration at .050" tappet lift is 254 degrees intake, 264 degrees exhaust. Cam timing at .050" is: intake opens 19 degrees BTDC, intake closes 55 degrees ABDC, exhaust opens 68 degrees BBDC, exhaust closes 16 degrees ATDC. Lobe separation is 112 degrees. There was also a ZIP-510A-C that was a single pattern camshaft, 254 degrees on both intake and exhaust, 112 degrees lobe separation, .510" gross valve lift.
Located in Racine,Wi 53402
Sold
Cam Specs:
ZIP-510 for the B/RB was a dual pattern camshaft .340" intake lobe lift, .3455" exhaust lobe lift, providing a gross valve lift of .510" intake, .518" exhaust with the standard 1.5:1 rockers. Valve lash is .028" intake, .032" exhaust at operating temperature. The duration at .050" tappet lift is 254 degrees intake, 264 degrees exhaust. Cam timing at .050" is: intake opens 19 degrees BTDC, intake closes 55 degrees ABDC, exhaust opens 68 degrees BBDC, exhaust closes 16 degrees ATDC. Lobe separation is 112 degrees. There was also a ZIP-510A-C that was a single pattern camshaft, 254 degrees on both intake and exhaust, 112 degrees lobe separation, .510" gross valve lift.
Located in Racine,Wi 53402
Sold
