Chrome 1970 340 Valve Covers....Hustle Stuff Direct Connection or Factory?

-
Oldmanmopar said:
I had a lot of 340 covers over the years including Direct connection. I have never see them with the 340 wire loom brackets. I would say they are Hustle Stuff. Or someone had 340 covers chromed. Also the Direct Connections were the tall style in the center of the cover.

View attachment 1716021450
Click to expand...
before



After

100_0033 (4).JPG


100_0034 (3).JPG

Last edited:
I thought the DC versions had part number stamps.

Found a pair at swap meet...thanks for the knowledgeable research...




Nice ! I have 2 sets . 1 on my W2 Swinger . Period correct and as good as stock as far as Im concerned .

I found these and quickly snapped them up. I needed a taller valve cover to clear the Jesel rockers on my W2 build.

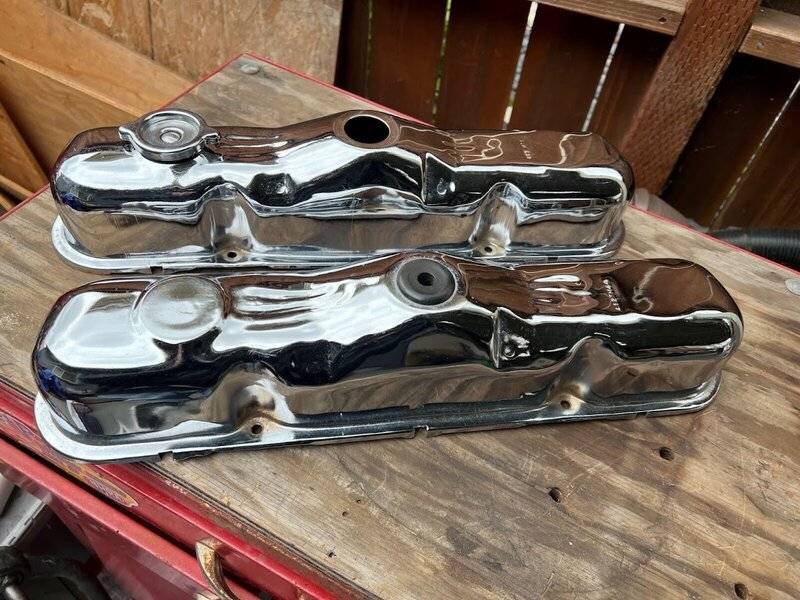

Here are pictures of some from years ago that I still have with the wire holders on. They were a purchase from Direct Connection in the late 70's The sets made in the 80's did not have the holders on them. I also had a set for early pre 70 in chrome but they had holders like a 273

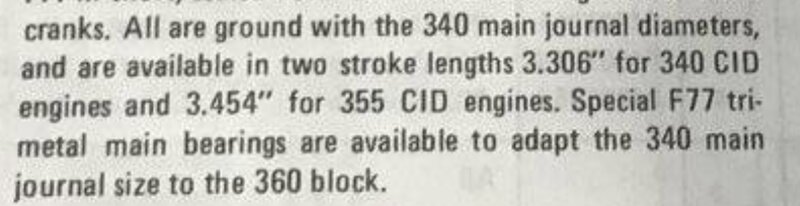

I find this crank information very interesting.
Also take note of the “Special Bearing” to allow a 340 crank into a 360 block.

I went by way of Bill Richardsons bearing spacers to get this done.


mbaird said:
For reference, what is the part number on them ?
Click to expand...
The driver's side is stamped 412FM44 and the other is 409FM29. There is a number on one of the baffles 385EM14

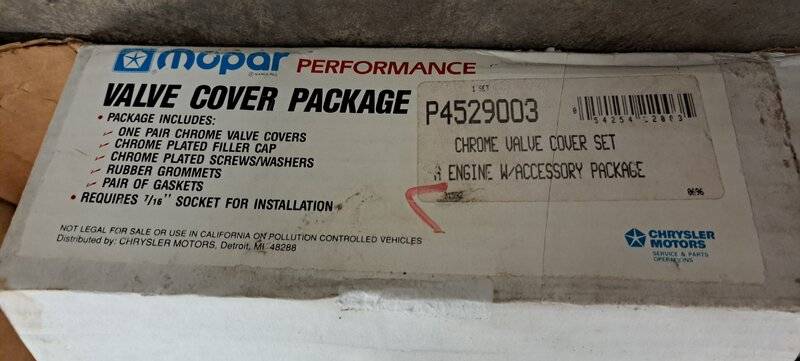

The original Direct Connection number for the kit is P4529003, which replaces P4120608 & P4349632
