Early A: Have plans/diagram/photos of Rear Shock Extension?

-
I used those many yrs ago before I restored my car and they worked fine

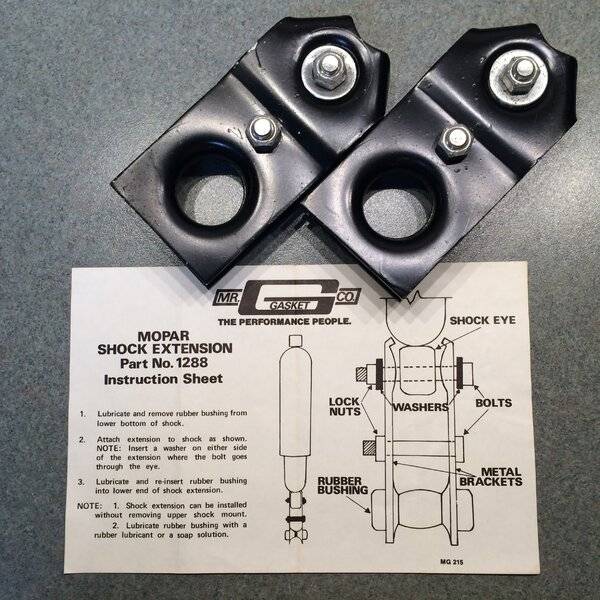

The instructions (photo #1) don't even show a bolt or nut in the original rubber bushing location on the bottom, looks like it just gets squished from another smaller bolt located in the middle/center of the extension itself. But the installed photo (#2) looks like I see a nut/washer installed down there.

View attachment 1715721113

View attachment 1715721114

You would need to contact a shock manufacturer or get into their technical charts for a longer shock. I looked up 66 Dart and 66 Chrysler Imperial. Same rear shock for both applications.

Check Rock Auto. Most of there listings have the dimensions.

-
