You are comparing apples to oranges. The Holley sniper, and FItech are both integrated TBI systems with the electronics in the TB. The Ed compares more say, to a Holley HP, or at least one that uses the HP computer
You are comparing apples to oranges. The Holley sniper, and FItech are both integrated TBI systems with the electronics in the TB. The Ed compares more say, to a Holley HP, or at least one that uses the HP computer
I know that there are pros and cons for each type of fuel injection but has anyone tried both ( Ideally on the same engine)?
What was your experience after the change?
Thanks!
I'm doing a Sniper XFlow install on a 700 hp big block right now. It takes a lot of work to get the wiring correct. Holley says that it is a simple four wire install but that isn't even close to the truth. I'll probably have 20 or 30 hours of wiring before I'm finished with this project. Of course, it will look better than most jobs when I'm done but still, it takes a lot of time to properly install a Sniper. So don't be suckered into the "four wires" thing.
View attachment 1715674629
It is a full Holley Hyperspark ignition system. Hyperspark distributor, coil and ignition box. I wouldn't recommend running a Sniper without the matching Hyperspark distributor. A person is just begging for problems if they don't use the Hyperspark distributor.What are you doing with the ignition on this one?
It is a full Holley Hyperspark ignition system. Hyperspark distributor, coil and ignition box. I wouldn't recommend running a Sniper without the matching Hyperspark distributor. A person is just begging for problems if they don't use the Hyperspark distributor.
Here is a picture of the coil bracket I made to hang the coil on the end of the cylinder head. Using a bracket like this keeps things nice and tidy. The alternator will hang off the bottom of the coil bracket.
View attachment 1715675026
I watched the video from Holly on the Hyperspark system, and am impressed. Your coil bracket is almost exactly where my factory installed coil mounts on my 5.9 Magnum. Very clean looking.
HyperSpark Ignition - Holley
If I step up to the more tuneable Holley Multiport systems using one of the Holley Terminator, HP or Dominator systems, it looks like I would use their Dual-Sync distributor and possibly even upgrade to a COP ignition, correct?
Their Dual-Sync system says it can supply a crank-trigger signal, but is that something you would use OR would you install an actual crank trigger set-up to eliminate the possible/potential inaccuracies of a distributor derived crank trigger signal. Does the potential minor variation between the two sources even amount to any discernible difference in signal accuracy?
The reason I ask is because my A/C compressor is mounted below my alternator right where a crank trigger set-up would go, so without your fabrication/machining skills I have been kind of stuck at this junction.
A dual sync should be fine for most engines. I've used dual syncs on race engines even though the conventional wisdom is to switch to a crank trigger for racing. I use a crank trigger on my Duster engine with coils but that is kind of overkill for a street engine. It looks cool and it works great but it isn't really needed.
View attachment 1715675341
I know that there are pros and cons for each type of fuel injection but has anyone tried both ( Ideally on the same engine)?
What was your experience after the change?
Thanks!
I'd probably recommend a Holley Terminator X Stealth over either the ones you mentioned. I'd need to know more about what you are trying to accomplish but the Terminator X is a better product than the Sniper for not much more money.
Terminator X and X Max Stealth 4150 - Holley
I watched the video from Holly on the Hyperspark system, and am impressed. Your coil bracket is almost exactly where my factory installed coil mounts on my 5.9 Magnum. Very clean looking.
HyperSpark Ignition - Holley
If I step up to the more tuneable Holley Multiport systems using one of the Holley Terminator, HP or Dominator systems, it looks like I would use their Dual-Sync distributor and possibly even upgrade to a COP ignition, correct?
Their Dual-Sync system says it can supply a crank-trigger signal, but is that something you would use OR would you install an actual crank trigger set-up to eliminate the possible/potential inaccuracies of a distributor derived crank trigger signal. Does the potential minor variation between the two sources even amount to any discernible difference in signal accuracy?
The reason I ask is because my A/C compressor is mounted below my alternator right where a crank trigger set-up would go, so without your fabrication/machining skills I have been kind of stuck at this junction.
I did the same thing on my 512. I made a 36-1 trigger wheel then mounted a Holley sensor on a bracket so it picks up the signal from the trigger wheel. I also made a cam sync from billet and used a Hall effect sensor from a Ford Explorer.
View attachment 1715675443
So you got this thing runnin yet? Can you even drive to the ice cream store?
Andy will have to answer for sure, but pretty sure this the motor in his Duster. So I would guess that the answer to both is yes.
I know it's in, I was just curious where he is with it.
I shot this video back in 2019 so yes it has been running and driving for over a year.
But has it gone to the ice cream shop? It's just not legit unless it has.

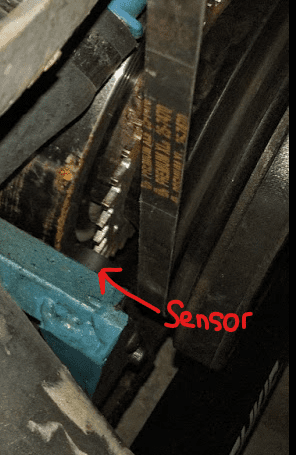

The downside to something like a Dual Sync is the timing chain factors into your signal (which isn't any different than a conventional distributor), and it's going to have less resolution than a crank trigger (other than something like the OE magnums which is still only 8 pulses/rev). Will you notice anything? I doubt it. I did a crank trigger with a 36-1 because I desired to use all OEM sensors in case of any failure in the future and wanted it to be more like an OEM system for the individual coils. Then you just use a 5.2/5.9 Mag distributor for the cam sensor. In my case with a Megasquirt and some fab work it was less expensive than a dual sync. This isn't a feature of a sniper or a terminator though.
View attachment 1715675439
I just made some square tubing with spacers inside of it that bolts to two bolts on the pan rail and bolted a $9 3.0L Ford ranger sensor to it. Then I had a 36-1 wheel made (there are several places that make standard diameters with custom IDs, I believe mine is 7" OD) for under $100 and simply tack welded it to the crank pulley. Set the air gap as required for the Ford sensor and it was good. But this is for only a more advanced system.
