I got a small block with one of the knock off air gap intakes and a edlebrock carb. Things are looking awful tight. Anyone know of an air cleaner that'll fit? I'm hoping normal drop base stuff will be fine.
Hood clearance with airgap intake
- Thread starter DumpsterFire
- Start date
-
What year and model are you putting it in?
DumpsterFire
Well-Known Member
64 dart. Figured all early A bodies would be about the same clearance wise
Plymouth 65
I'll be in the shop
Edelbrock Pro Flo 1203, works well on my 65 Formula S Barracuda w/AirGap and Edelbrock carb. 65

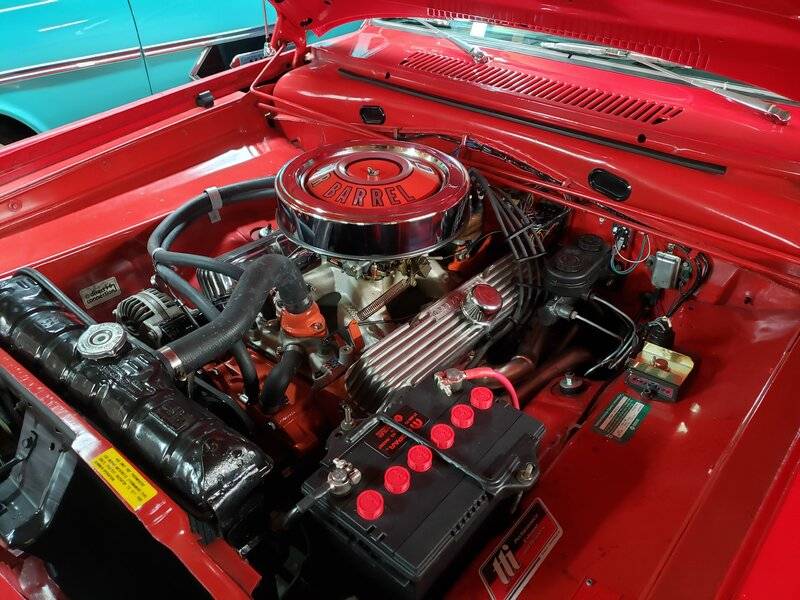

65 Barracuda, 340, Air Gap, 750 Holley, chrome version of the late sixties 340 semi-drop-base unsilenced air cleaner. Fits no problem.
AJ/FormS
68 Formua-S fastback clone 367/A833/GVod/3.55s
- Joined
- Jan 19, 2014
- Messages
- 25,657
- Reaction score
- 12,933
IDK about the Edelbrock but
I have 750DP on mine, and used to have a filter house from a 70 Dart , IIRC it's called Unsilenced. It was tight but did not rub. In the end I cut a hole in my hood, oh crap, I just noticed you have an early-A, and my car is a 68 Barracuda............. so, ......... IDK.
Best thing you can do for your engine is to rig it up so that atmosphere can ram straight in thu the top, cuz engines do not suck air. If the atmosphere has to hunt it's way to the carb thru the rad and over the hot engine parts, that's not good.
When I say I cut a hole in my hood, I wasn't kidding. I installed a nice oval aluminum aftermarket air-cleaner, and K&N, on top of the hood, and sealed the airhorn to the underside.
I saved the cut-out piece.
Last edited:
green72
Well-Known Member
I was determined to use my stock dual snorkel air cleaner on my build. I ended up ordering about every version that Summit had. Finally hit on one that cleared.
Returns to Summit are easy so you can try lots of options
Returns to Summit are easy so you can try lots of options
roger buetow
Well-Known Member
I have 66 valiant with a 360, speedway AG, holly 750 DP and I used a Performance Extra Flow 47623 14 3 in. available in different colors. Stock hood has good clearance.
roger buetow
Well-Known Member
Make that a speed master not speedway.
-
