Need a little bulb help please

[pearljam724]

Where and what’s best way to access lightbulb for dash heater control knobs on 72 Scamp ? Anyone also know bulb number ?



[Deltatech]

It connects on the back of the plastic Heater control housing top side.



[halifaxhops]

A-Body Light Bulb Part Number List

This list was taken from the Classic Industries catalog. It's a good one to save to your Mopar Docs folder :). Regards, Mr G.

www.forabodiesonly.com



[Deltatech]

Where and what’s best way to access lightbulb for dash heater control knobs on 72 Scamp ? Anyone also know bulb number ?

Mine was a 168 bulb 73 Duster



[pearljam724]

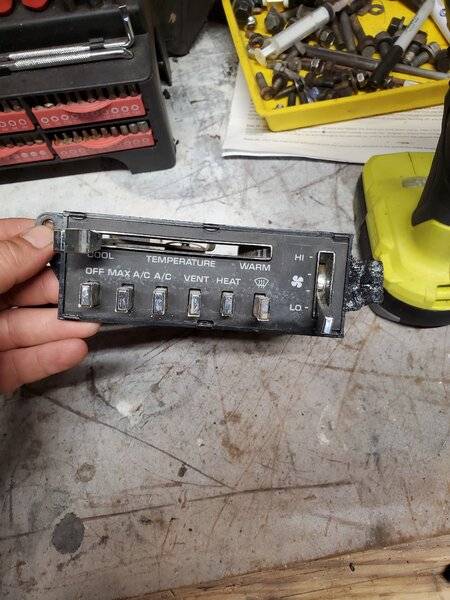

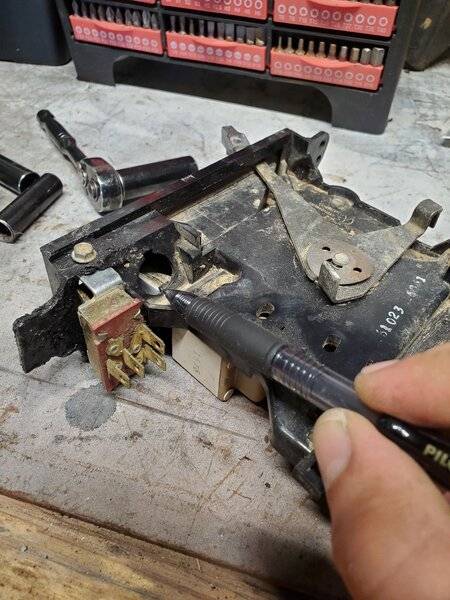

It connects on the back of the plastic Heater control housing top side.

View attachment 1716097786

View attachment 1716097787

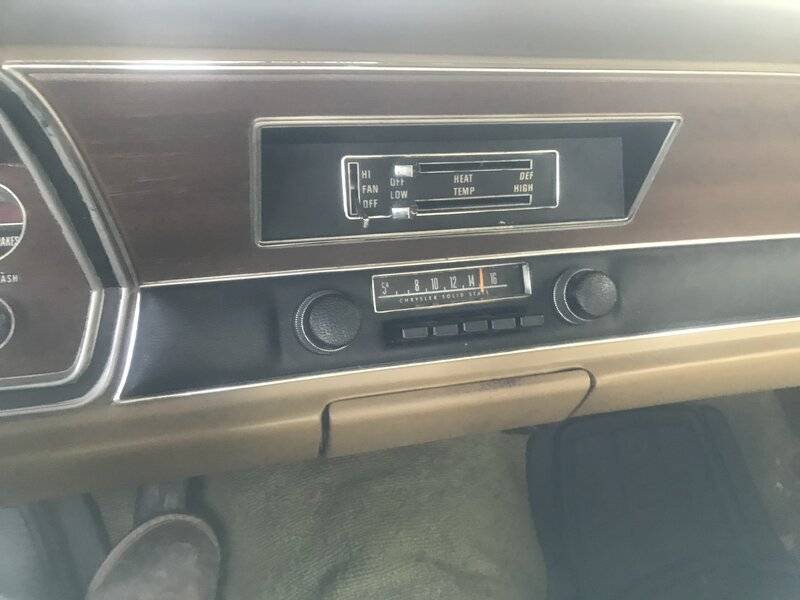

Deltatech. My heater control doesn’t look like that. My 72 Scamp heater control is identical to my 76 Dart heater control.



[RedFish]

Your 72 model heat only controller may not have had a backlight. You might pull it and find a provision for a light.
The a/c controllers were all backlighted.



[Deltatech]

Deltatech. My heater control doesn’t look like that. My 72 Scamp heater control is identical to my 76 Dart heater control.

View attachment 1716098082

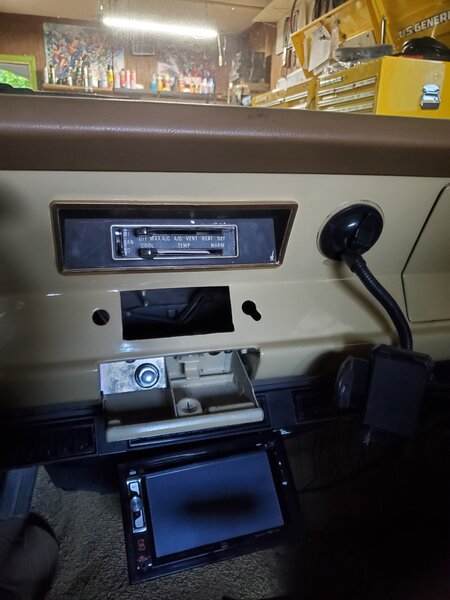

It's in the same location.That was just an example to take a picture of that I had laying around from a 91 D100. I've changed them out laying in the floorboard and reaching up through the back of the dash and around the back of the stereo.
I had a 72 scamp with Heat only and it had a bulb in it but I don't know if the heater control was an original part.
