Z BAR FRAME BRACKET LOCATION? photos?

[wolfhammer]

Wondering if anyone has a couple of photos of the weld location for a 69 A body z bar frame bracket. I have converted B bodies before but this is the first A body conversion for me. Is the frame rail marked or dimpled for it? Thanks for any help



[Sedanman]

It goes inside the wheel well with the wider part at the bottom. I can't locate a pic of mine.



[jack68gts]



[wolfhammer]

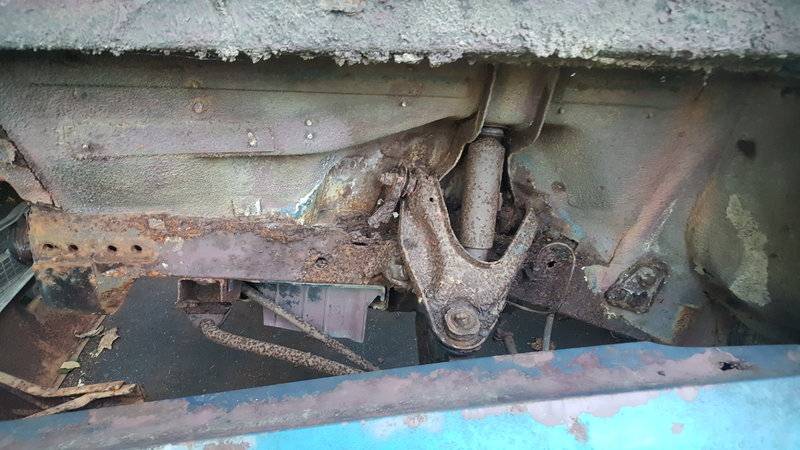

View attachment 1714995713

thanks jack, is the bottom bolted or are those 2 plug welds?



[wolfhammer]

It goes inside the wheel well with the wider part at the bottom. I can't locate a pic of mine.

Thanks sedanman I wasn't sure what way it went



[Sedanman]

It's welded in a few places,one is through the lower hole and a few on the sides and one on the outer top. The upper hole lines up with the hole in the inner fender



[wolfhammer]

It's welded in a few places,one is through the lower hole and a few on the sides and one on the outer top. The upper hole lines up with the hole in the inner fender

Got it, thank you



[norshorblufish]

Here check this thread some else posted.
Pretty good pic of location.
1968 A body Z bar frame Bracket



[jack68gts]

welded



[wolfhammer]

welded

thanks jack



[wolfhammer]

Here check this thread some else posted.
Pretty good pic of location.
1968 A body Z bar frame Bracket

Thanks norshorblufish, great photo



[DusTed74]

Here's a few shots of the one on my Demon. It's a factory 4 speed car so it should be in the correct location. I hope these help.

Ted



[wolfhammer]

Here's a few shots of the one on my Demon. It's a factory 4 speed car so it should be in the correct location. I hope these help.

Ted

View attachment 1714995772

View attachment 1714995773

View attachment 1714995774

thank you Ted



[Mopar92]

That's on a big angle compared to some.



[gtgto]

That's on a big angle compared to some.

My factory welds gave way and when my friend welded it back up in the same place and it is angled similarly to that picture.
