show off them turbo header/manifold pics

[CordobaDart]

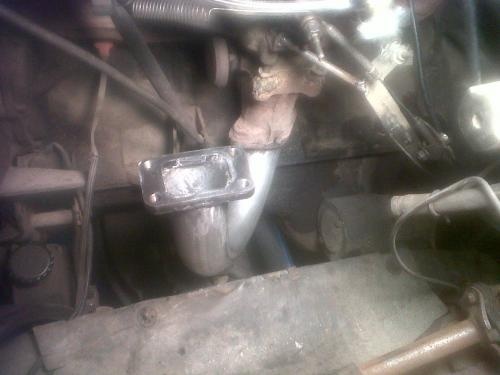

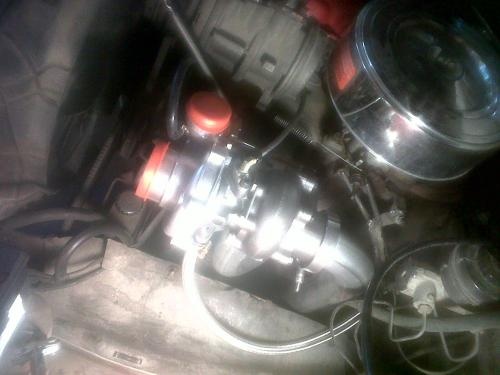

Simple and inexpensive manifold. Excited to get it finished!

View attachment 00%20turbo%20slant2.jpg

View attachment 00%20turbo%20slant3.jpg



[EARLYHEMIBILL]

thanks a lot!! small block a-body. here are a few more...

Love that yellow!



[RustyPlymouth]

cordobadart do you have a writeup on your build?



[70wayfarer]

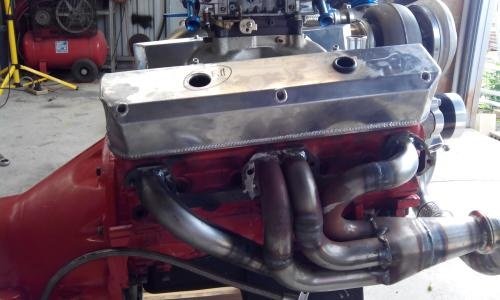

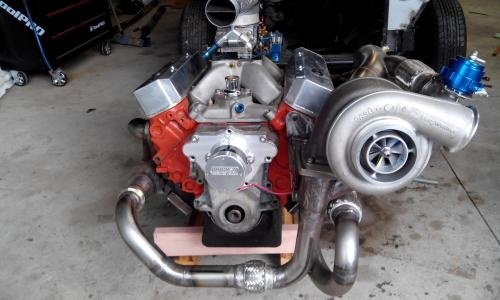

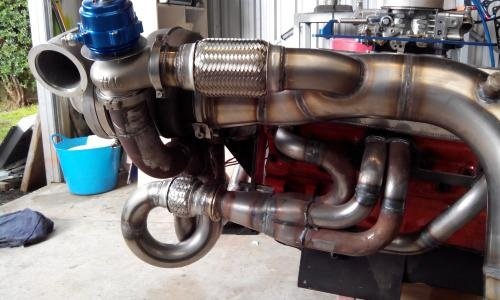

here is a couple of pics of my 360/410 turbo setup

View attachment IMG_20140510_113519.jpg

View attachment IMG_20140510_113507.jpg

View attachment IMG_20140510_113540.jpg



[Mad Dart]

here is a couple of pics of my 360/410 turbo setup

Looks good!



[CordobaDart]

cordobadart do you have a writeup on your build?

I do not have a writeup on my build yet, probably should, just to share and discuss. I have multiple ideas on how I will do ignition timing. Was thinking of checking timing difference between two pickups on an esc distributor I have and running around 18* total on one and using a dpdt switch to toggle between pickups for easier starting as this dist. has no advance. This would only work if there is a timing difference between the two pickups, I will move one of them to get a desired timing difference if need be.



[CordobaDart]

here is a couple of pics of my 360/410 turbo setup

DROOOL:tongue3:



[RustyPlymouth]

i though about doing that too. wound up just welding the slots shut on the mechanical advance in a normal electronic distibutor to limit it to 18* total without the vacuum advance.



[340demon71]

Heres mine. . . Not done yet but coming along.



[340demon71]



[67Dart273]

Heres mine. . . Not done yet but coming along.

? Nothing showed up?



[Landons65Dart]

Here's what we did before pulling the motor.



[Serj22]

That looks cool. It's like the illusion of the carb being in the right place.



[RustyPlymouth]

got any pics of the exhaust manifold by itself?



[draginmopars]

these were for a twin turbo build, but we changed direction
went No Power Adder
stroker 449 / E-85 carb

close up

wrapped the headers while on the stand> easier
1 3/4" into 1 7/8" into 3 1/2" collector



[Landons65Dart]

Sorry. This is the best picture I have for now. It's the Clifford dual exhaust coming up to a small homemade box with a T3/T4 flange.



[MrMoparMan]

Here's my setup.



[Mad Dart]

Here's my setup.

Looks good. How much of that set up is out of the hood area?



[MrMoparMan]

Looks good. How much of that set up is out of the hood area?

Thanks, it all fits between the inner fenders and under the hood.

Here's the turbo side:

Here's the intercooler side:



[Mad Dart]

Thanks, it all fits between the inner fenders and under the hood.

Here's the turbo side:

Here's the intercooler side:

Sweet! Is it running? What kind of power is it making? How much boost?



[MrMoparMan]

Sweet! Is it running? What kind of power is it making? How much boost?

It runs great, I have a dyno appointment on the 12th to dial it in. Started to tune it non-intercooled, it made around 400 at 6psi, but temps got too high.

All of your hard work is partially to blame for me getting into this, here is a link to my build with some more detail:

http://www.forabodiesonly.com/mopar/showthread.php?t=278468



[Mad Dart]

It runs great, I have a dyno appointment on the 12th to dial it in. Started to tune it non-intercooled, it made around 400 at 6psi, but temps got too high.

All of your hard work is partially to blame for me getting into this, here is a link to my build with some more detail:

http://www.forabodiesonly.com/mopar/showthread.php?t=278468

Lol... I figured you seen my TT Thread.

I will check yours out!



[EARLYHEMIBILL]

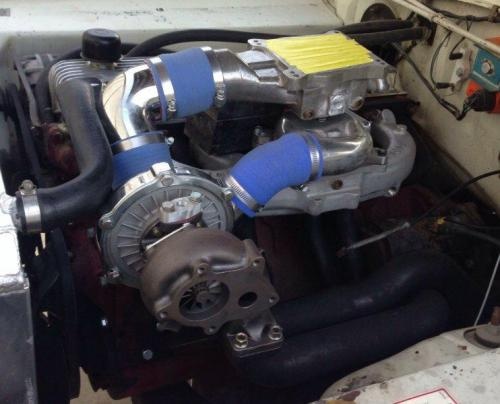

341 Desoto hemi into 67 Valiant.



[turbodart68]

This thread is really cool. Some real engineering going on out there!!!



[srixon4406]

This thread is really cool. Some real engineering going on out there!!!

Thanks this is also one of my favorite threads
