    As soon as I get some time (probably near the Holidays) I'll swap on my new oil pan and see how it all fits!

    • Thanks! Thanks! x 1
    • SwingerMan

      SwingerMan Well-Known Member

      Messages:
      331
      Likes Received:
      31
      Joined:
      Jan 3, 2006
      Location:
      Seabrook, TX
      Local Time:
      4:29 AM

      Great work, seems like a great solution to running AC vs having to go with an aftermarket front suspension!

      • Agree Agree x 1
      • Trojmn

        Trojmn Well-Known Member

        Messages:
        166
        Likes Received:
        31
        Joined:
        Jan 26, 2009
        Location:
        Springfield IL
        Local Time:
        4:29 AM
        now i need a good /6 frame....

        • Agree Agree x 1
        • Elwood blues

          Elwood blues Well-Known Member

          Messages:
          66
          Likes Received:
          5
          Joined:
          Aug 12, 2018
          Location:
          Wisconsin
          Local Time:
          4:29 AM
          So will the Schumacher mounts fit with the tti headers? I thought I saw that the TTi headers had to be used with the tti mounts? Also do the mount need to be modified it looks like some of them are.

        • SwingerMan

          SwingerMan Well-Known Member

          Messages:
          331
          Likes Received:
          31
          Joined:
          Jan 3, 2006
          Location:
          Seabrook, TX
          Local Time:
          4:29 AM
          So did everything end up fitting without issue? If the borgeson, power steering and AC all work with the /6 k frame it will be great news.

        • Cazbah362

          Cazbah362 Well-Known Member

          Messages:
          841
          Likes Received:
          71
          Joined:
          Nov 7, 2011
          Location:
          Nevada
          Local Time:
          4:29 AM
          I am working with a 71 /6 K frame and 5.7, does anyone have a set of Schumacher mounts they would like to sell? and did the what oil filter type did you go with in the A body K frames with these setups? any pictures

        • Ronald C.

          Ronald C. Well-Known Member

          Messages:
          485
          Likes Received:
          80
          Joined:
          Jul 18, 2018
          Location:
          Blanket, TX
          Local Time:
          4:29 AM
          So just to make sure I am following, you DID go with a /6 K member, not the original V8 K member?

          Is it common knowledge you can not have OEM power steering, or AC if doing this swap?

          I’m just starting to look into this, but I have a 74, V8 Dart Sport for this project. But my wish list is AC, power steering, power brakes. (In that order). Can I do this with my existing K member? Curious, what is a fair price for a new 5.7 Hemi?

          @70Sbird, what drove you to buy the AC expansion kit? You needed a compressor, or you needed a DIFFERENT compressor?

          Last edited: Jun 5, 2019
        • 70Sbird

          70Sbird Possessed by Demons

          Messages:
          38
          Likes Received:
          58
          Joined:
          Apr 6, 2017
          Location:
          Central Illinois
          Local Time:
          4:29 AM
          Well it's been over a year since I 've touched my 6.4 Demon project...I got sidetracked with another car rebuild that snowballed into a much larger project than intended, as they always seem to.
          :lol:
          However, I have been buying parts for the Demon swap and I thought I'd share another parts mockup. I've now purchased the Borgeson steering box, headers, and the Mopar ECU and install kit. I had to open the headers right when they got here since that was my greatest concern with fitment. These are TTI 61WPA designed for an A body with torsion bar suspension and the Borgeson box. I was thrilled to see that the header on the drivers side fits perfectly with my A/C compressor and Schumacher /6 to 3GHemi conversion mounts. With me spending a lot more time at home for a while I'll be digging out my K frame and mocking this whole thing up in the next few weeks, but so far it all looks like it's going to fit with just some tweaks!
          :thumbsup::thumbsup::thumbsup:


          • Like Like x 2
          • 70Sbird

            70Sbird Possessed by Demons

            Messages:
            38
            Likes Received:
            58
            Joined:
            Apr 6, 2017
            Location:
            Central Illinois
            Local Time:
            4:29 AM
            @Ronald C.
            I bought the Mopar Crate engine, so there was no compressor there to begin with. I did purchase a core compressor off of and older 5.7 but the mounting holes changed at some point so it wouldn't fit my 6.4. I then bought the Mopar A/C kit for my crate engine any the new compressor design (2017 Challenger) fit perfectly

          • Trojmn

            Trojmn Well-Known Member

            Messages:
            166
            Likes Received:
            31
            Joined:
            Jan 26, 2009
            Location:
            Springfield IL
            Local Time:
            4:29 AM
            Where you located @70Sbird ? if you have spare /6 K laying about lemme know. I have a couple v8 K's

          • 70Sbird

            70Sbird Possessed by Demons

            Messages:
            38
            Likes Received:
            58
            Joined:
            Apr 6, 2017
            Location:
            Central Illinois
            Local Time:
            4:29 AM
            I'm in Central Illinois, near Peoria. The only slant six K frame I had was the one that came out of my 71 Demon....I also have a couple of V8 K frames that I bought for this swap, both pad and spool mount that are now just taking space up in my basement!

          • 70Sbird

            70Sbird Possessed by Demons

            Messages:
            38
            Likes Received:
            58
            Joined:
            Apr 6, 2017
            Location:
            Central Illinois
            Local Time:
            4:29 AM
            Hi everyone, thought I'd post an update...(it's only been a year or so...) I finally pieced all of my components together on the slant six K frame and thought I'd share. For a refresher this is a Mopar crate 6.4 (2017 SRT LX body car configuration) and a slant six K frame from my 71 demon. In my post from last April above you can see the Schumacher mounts, the A/C compressor and the header all bolted to the engine. However.....when I actually tried to put it all together the Compressor and engine mount wanted to occupy the same space. Once I mocked it up a few times I found the opportunity of just under a 1/2" of room to move the engine forward in the K frame before the steering box hit one of the header tubes so I re-drilled the engine side of the mounting plates and moved everything forward by about 3/8". That doesn't sound like much but it helped with the A/C Compressor to motor mount relationship, it gave me more room between the SRV on the back of the intake and the firewall that I'll have to be adjusting, and less of my T-bar crossmember that I'll have to remove to fit in the transmission (Silver Sport A41 package - 4L60E). The first pic is of the redrilled motor mount plates, next is the hacksaw modification to the compressor, the K-frame butchery to clear the low mount compressor and then finally the mount, compressor and K frame all living together and sharing space.




            Last edited: Jan 28, 2021
          • 70Sbird

            70Sbird Possessed by Demons

            Messages:
            38
            Likes Received:
            58
            Joined:
            Apr 6, 2017
            Location:
            Central Illinois
            Local Time:
            4:29 AM
            Ok, one pic didn't go, here are the pics of the K frame "clearancing", and everything bolted in place including the Borgeson steering box



            • Like Like x 2
            • 70Sbird

              70Sbird Possessed by Demons

              Messages:
              38
              Likes Received:
              58
              Joined:
              Apr 6, 2017
              Location:
              Central Illinois
              Local Time:
              4:29 AM

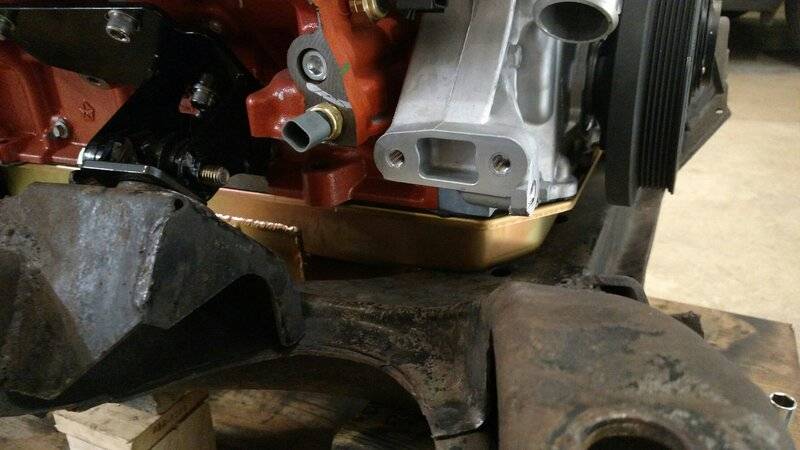

              Ok, now for the other side and the actual difference of the slant six K frame. There is some decent room under the area of the block where the oil filter goes with this combo of mounts and K-frame. I don't think that there is enough room to mount the regular sized filter directly to the block and be able to change it. There may be room for a 90 degree or 45 degree adapter but it will be very close either way. I'd like to find an example of one or both adapters and try it before ordering one only to find out that it doesn't fit. BTW, the Schumacher mounts have now been picked up and are being manufactured/sold through USCartool.


              Last edited: Jan 28, 2021
              • Like Like x 3
              • 408 swinger

                408 swinger FABO Gold Member FABO Gold Member

                Messages:
                2,403
                Likes Received:
                2231
                Joined:
                Nov 12, 2010
                Location:
                Iowa
                Local Time:
                4:29 AM
                Thanks for the update!

              • MonkeyMadness

                MonkeyMadness Well-Known Member

                Messages:
                1,052
                Likes Received:
                1204
                Joined:
                Jun 13, 2016
                Location:
                Yorba Linda California
                Local Time:
                2:29 AM
                Man Will this work with the early A slant 6 frame? :eek:
