Subframe connectors for a driver/cruiser, necessary to weld to floor?

-
Depends how there bolted in
Design right a bolted connection can be as strong as welded.
Sorry, I dont agree with that statement. You can never make a bolted in subframe connector as strong as welded in for any length of time. Get a Lincoln, Miller or Hobart MIG, and buzz em in. Call it a day.

Last edited:
What did you use there? 2" x 3"? you did a real nice job! Perhaps what the factory would have done. Certainly what they should have done!
Thanks for the kudos Rusty.

This is an old thread i replied to that seemed to pick up traction again. I used 2x3 box steel 1/8" thick. The lap plates against the torsion bar crossmember are 3/16". They allow a better load transition into the thinner crossmember since they are laying alongside it, and not as some people do by just butting the connector to the torsion bar cross member and welding. Dont forget the drain holes either lol. Mine are 3/4" it's as big as my unibit was.

Re routing the cable to inboard of the connector makes it really clean as well. I also did this same subframe connector method to the 69 cuda coupe as well. I have not been on here as much lately as the messiness known as lifes utter bullshit has most certainly gotten in the way of things.

I have a build thread on here called 67/68/69 cuda dilemma , that has a lot of weld and fab, including a super clean way of modding and installing a 42/46RH trans in an A body along with everything to make it work including stock using the console shifter and using the factory kick down cable, as well as how to make a bullet proof front lower radiator crossmember that looks factory made. I like modified stuff that appears stock

One day I will get back to all this and get further, but for now it sits and mocks me every time I go in my shop for a tool.

Thanks
Matt

I'm a believer that welding the connector to the floor is better than not. I went that route on both of my Darts. Since the '68 has a back seat, I ended up pushing the 2x2 tubing through the floor, marking it, slicing off the sides where it penetrated into the cab, and rewelding the top back on while welding it to the floor from the top. Now, the carpet lays flat. Lots of ways to skin a cat on subframe connectors.




Your stress is concentrated on the bolt attach points. This is where over time depending how you drive the car you will likely get cracking looseness and failure.

Sure cracking can start at a weld seam, but is less likely because the entire structure is more rigid.

As far as bolts go, case in point, bridges are bolted together and designed to flex so they dont fail. You are bolting together a frame connector to a car chassis with the intent to make it function as 1 solid structure (no flex, or minimum flex).

Will it work? Sure, it will stiffen it up. Will it work as well as a welded in set of connectors ? No over time it will not. It will still allow a bit of flex, and along with that the stress loading and unloading of the bolts.

Over time the clamping force of the bolts will become less as the oem structure deforms behind them, along with cracking from stress loading and unloading.

Here is something for you to think about. Bolts are made for things you want to be able to take apart to repair or replace if needed. Subframe connectors, are not one of those things.

Last edited:
Your stress is concentrated on the bolt attach points. This is where over time depending how you drive the car you will likely get cracking looseness and failure.

Sure cracking can start at a weld seam, but is less likely because the entire structure is more rigid.

As far as bokts go, case in point, bridges are bolted together and designed to flex so they dont fail. You are bolting together a frame connector to a car chassis with the intent to make it function as 1 solid structure (no flex, or minimum flex).

Will it work? Sure. It will stiffen it up. Will it work as well as a welded in set of connectors ? No over time it will not. It will still allow a bit of flex, and along with that the stress loading and unloading of the bolts.

Over time the clamping force of the bolts will become less as the oem structure deforms behind them, along with cracking from stress loading and unloading.
Depends how there designed, like I said if designed right they can be just as strong. Doesn't mean that there are ones available that are designed right.

The factory K frame seems to work fine with only 4 bolts lot of stress/force goes through it, steering, braking, engine etc..

Depends how there designed, like I said if designed right they can be just as strong. Doesn't mean that there are ones available that are designed right.

The factory K frame seems to work fine with only 4 bolts lot of stress/force goes through it, steering, braking, engine etc..

For them to be "designed right" would make them expensive and enough of a pain to install (read: drilling lots of holes and installing lots of bolts) that it wouldn't be worth it vs welding them in.

The k-frame doesn't experience the same kind of loading as the unibody between the front and rear subframes. That portion of the car was engineered from the beginning to utilize bolted joints so it's not a good example to use for "well they made it work there so it must be able to work elsewhere."

For them to be "designed right" would make them expensive and enough of a pain to install (read: drilling lots of holes and installing lots of bolts) that it wouldn't be worth it vs welding them in.
Possibly, you guy's take pointing out a fact as the same as an endorsement, never said it was generally better or the way to go.

I was talking about it's best to see what the factory might have done. Not necessarily what was strongest. I stand by what I said.

You're assuming the factory did what was best, and that's rarely true. They typically do the cheapest thing they can get away with, which is probably why the rails weren't continued for the entire length of the car to begin with. The roof structure being present in that location, along with a lack of suspension points in that area, meant the cabin area was strong enough to meet the factory standards without them.

Welding the floor along the entire length of the subframe connector with two dissimilar metal thicknesses like the US Cartool design does is also very different than having a spot welded flange like the factory frame rails do. It might look more factory when finished, but from a stress/load perspective it's very different. If you want it to look more factory, awesome, go for it. But don't mix that up with "what's best".

I have welded in 2 x 3 tubing for frame connectors for years in lots of Mopars and a few Fords. I have never tried to do the thru floors deal as I have to lay on my old back and do it all. I too have no idea what is the strongest way, but what I do sure makes it stout!!! Makes a REAL difference. But then I have heard some "arm chair engineers" say the car needs to flew some!
Don't know!!
:thumbsup: :BangHead:

There is a limit to how stiff you can make that section of chassis as well, especially using two frame rails in the locations where they get added. You could weld in a set of railroad tracks if you wanted, but the benefit to the chassis stiffness might not be significantly better than a 2x3" box tube. The weight, on the other hand, would be drastically different.

There is a level of improvement that benefits the performance of the chassis, and after that everything is diminishing returns. Personally my somewhat educated opinion is that regardless of which kind is stronger, the difference in chassis strength between the two basic types of frame connectors on these cars is small enough that the vast majority of people driving these cars won't be able to tell anyway.

Sorry, I dont agree with that statement. You can never make a bolted in subframe connector as strong as welded in for any length of time. Get a Lincoln, Miller or Hobart MIG, and buzz em in. Call it a day.

Yeah, that's not at all true. Certainly not in theory. There's a reason why bolted connections are used for most engineered structures outside of light duty automotive.

Now, that doesn't mean that the MP bolt in connectors are as strong. Their 2 lag bolts on each end of the connector are definitely not as strong as a welded joint, and definitely not over time. They would need larger landing pads, more hardware and captured nuts in the frame rails to have a chance to be as strong. So for the MP connectors I agree, bolting those in isn't as strong. But that doesn't mean they couldn't be with an improved design.

Your stress is concentrated on the bolt attach points. This is where over time depending how you drive the car you will likely get cracking looseness and failure.

Sure cracking can start at a weld seam, but is less likely because the entire structure is more rigid.

As far as bolts go, case in point, bridges are bolted together and designed to flex so they dont fail. You are bolting together a frame connector to a car chassis with the intent to make it function as 1 solid structure (no flex, or minimum flex).

Will it work? Sure, it will stiffen it up. Will it work as well as a welded in set of connectors ? No over time it will not. It will still allow a bit of flex, and along with that the stress loading and unloading of the bolts.

Over time the clamping force of the bolts will become less as the oem structure deforms behind them, along with cracking from stress loading and unloading.

Making the structure more rigid can actually increase the chances of cracking at the joints/seams. You have to look at how much the metal flexes over the length of the chassis under the loads it will experience. Too much flex can cause cracking from overwork, but too little flex can cause cracking by concentrating more load than the base metal can withstand. Two very different processes, but the result will still just look like a crack to the naked eye. The amount of flex and load has to be matched to the capability of the material used to build the structure.

Here is something for you to think about. Bolts are made for things you want to be able to take apart to repair or replace if needed. Subframe connectors, are not one of those things.

This is false reasoning. Bolts are used in structural engineering because of their load bearing properties, not because anyone is going to disassemble a bridge or skyscraper. That stuff gets taken apart by explosive demolition, so why isn't it welded? Because of the structural properties needed for the joints, that's why.

Yeah sure, in the automotive world stuff gets bolted together so it can be taken apart and serviced, but that is definitely not the only reason. The entire chassis on one of these unibody cars could be riveted together, and very likely with little to no difference in strength if done right. But they're not, and being able to take it apart has nothing to do with that decision. The factory does things for a lot of reasons besides what's best, what's strongest, etc. and that usually comes down to cost.

You're assuming the factory did what was best, and that's rarely true. They typically do the cheapest thing they can get away with, which is probably why the rails weren't continued for the entire length of the car to begin with. The roof structure being present in that location, along with a lack of suspension points in that area, meant the cabin area was strong enough to meet the factory standards without them.

Welding the floor along the entire length of the subframe connector with two dissimilar metal thicknesses like the US Cartool design does is also very different than having a spot welded flange like the factory frame rails do. It might look more factory when finished, but from a stress/load perspective it's very different. If you want it to look more factory, awesome, go for it. But don't mix that up with "what's best".



There is a limit to how stiff you can make that section of chassis as well, especially using two frame rails in the locations where they get added. You could weld in a set of railroad tracks if you wanted, but the benefit to the chassis stiffness might not be significantly better than a 2x3" box tube. The weight, on the other hand, would be drastically different.

There is a level of improvement that benefits the performance of the chassis, and after that everything is diminishing returns. Personally my somewhat educated opinion is that regardless of which kind is stronger, the difference in chassis strength between the two basic types of frame connectors on these cars is small enough that the vast majority of people driving these cars won't be able to tell anyway.



Yeah, that's not at all true. Certainly not in theory. There's a reason why bolted connections are used for most engineered structures outside of light duty automotive.

Now, that doesn't mean that the MP bolt in connectors are as strong. Their 2 lag bolts on each end of the connector are definitely not as strong as a welded joint, and definitely not over time. They would need larger landing pads, more hardware and captured nuts in the frame rails to have a chance to be as strong. So for the MP connectors I agree, bolting those in isn't as strong. But that doesn't mean they couldn't be with an improved design.



Making the structure more rigid can actually increase the chances of cracking at the joints/seams. You have to look at how much the metal flexes over the length of the chassis under the loads it will experience. Too much flex can cause cracking from overwork, but too little flex can cause cracking by concentrating more load than the base metal can withstand. Two very different processes, but the result will still just look like a crack to the naked eye. The amount of flex and load has to be matched to the capability of the material used to build the structure.



This is false reasoning. Bolts are used in structural engineering because of their load bearing properties, not because anyone is going to disassemble a bridge or skyscraper. That stuff gets taken apart by explosive demolition, so why isn't it welded? Because of the structural properties needed for the joints, that's why.

Yeah sure, in the automotive world stuff gets bolted together so it can be taken apart and serviced, but that is definitely not the only reason. The entire chassis on one of these unibody cars could be riveted together, and very likely with little to no difference in strength if done right. But they're not, and being able to take it apart has nothing to do with that decision. The factory does things for a lot of reasons besides what's best, what's strongest, etc. and that usually comes down to cost.
I most certainly am NOT. I simply commented on doing it as the factory did. You are inferring incorrectly, because you like to argue.

You're assuming the factory did what was best, and that's rarely true. They typically do the cheapest thing they can get away with, which is probably why the rails weren't continued for the entire length of the car to begin with. The roof structure being present in that location, along with a lack of suspension points in that area, meant the cabin area was strong enough to meet the factory standards without them.

Welding the floor along the entire length of the subframe connector with two dissimilar metal thicknesses like the US Cartool design does is also very different than having a spot welded flange like the factory frame rails do. It might look more factory when finished, but from a stress/load perspective it's very different. If you want it to look more factory, awesome, go for it. But don't mix that up with "what's best".



There is a limit to how stiff you can make that section of chassis as well, especially using two frame rails in the locations where they get added. You could weld in a set of railroad tracks if you wanted, but the benefit to the chassis stiffness might not be significantly better than a 2x3" box tube. The weight, on the other hand, would be drastically different.

There is a level of improvement that benefits the performance of the chassis, and after that everything is diminishing returns. Personally my somewhat educated opinion is that regardless of which kind is stronger, the difference in chassis strength between the two basic types of frame connectors on these cars is small enough that the vast majority of people driving these cars won't be able to tell anyway.



Yeah, that's not at all true. Certainly not in theory. There's a reason why bolted connections are used for most engineered structures outside of light duty automotive.

Now, that doesn't mean that the MP bolt in connectors are as strong. Their 2 lag bolts on each end of the connector are definitely not as strong as a welded joint, and definitely not over time. They would need larger landing pads, more hardware and captured nuts in the frame rails to have a chance to be as strong. So for the MP connectors I agree, bolting those in isn't as strong. But that doesn't mean they couldn't be with an improved design.



Making the structure more rigid can actually increase the chances of cracking at the joints/seams. You have to look at how much the metal flexes over the length of the chassis under the loads it will experience. Too much flex can cause cracking from overwork, but too little flex can cause cracking by concentrating more load than the base metal can withstand. Two very different processes, but the result will still just look like a crack to the naked eye. The amount of flex and load has to be matched to the capability of the material used to build the structure.



This is false reasoning. Bolts are used in structural engineering because of their load bearing properties, not because anyone is going to disassemble a bridge or skyscraper. That stuff gets taken apart by explosive demolition, so why isn't it welded? Because of the structural properties needed for the joints, that's why.

Yeah sure, in the automotive world stuff gets bolted together so it can be taken apart and serviced, but that is definitely not the only reason. The entire chassis on one of these unibody cars could be riveted together, and very likely with little to no difference in strength if done right. But they're not, and being able to take it apart has nothing to do with that decision. The factory does things for a lot of reasons besides what's best, what's strongest, etc. and that usually comes down to cost.
SO allow me to spell it out. When I said "best", I simply meant that the best way to add frame connectors IS to tie them into the floor system. I was not talking about which way of doing THAT was BEST. Are we clear now?

You're assuming the factory did what was best, and that's rarely true. They typically do the cheapest thing they can get away with, which is probably why the rails weren't continued for the entire length of the car to begin with. The roof structure being present in that location, along with a lack of suspension points in that area, meant the cabin area was strong enough to meet the factory standards without them.

Welding the floor along the entire length of the subframe connector with two dissimilar metal thicknesses like the US Cartool design does is also very different than having a spot welded flange like the factory frame rails do. It might look more factory when finished, but from a stress/load perspective it's very different. If you want it to look more factory, awesome, go for it. But don't mix that up with "what's best".



There is a limit to how stiff you can make that section of chassis as well, especially using two frame rails in the locations where they get added. You could weld in a set of railroad tracks if you wanted, but the benefit to the chassis stiffness might not be significantly better than a 2x3" box tube. The weight, on the other hand, would be drastically different.

There is a level of improvement that benefits the performance of the chassis, and after that everything is diminishing returns. Personally my somewhat educated opinion is that regardless of which kind is stronger, the difference in chassis strength between the two basic types of frame connectors on these cars is small enough that the vast majority of people driving these cars won't be able to tell anyway.



Yeah, that's not at all true. Certainly not in theory. There's a reason why bolted connections are used for most engineered structures outside of light duty automotive.

Now, that doesn't mean that the MP bolt in connectors are as strong. Their 2 lag bolts on each end of the connector are definitely not as strong as a welded joint, and definitely not over time. They would need larger landing pads, more hardware and captured nuts in the frame rails to have a chance to be as strong. So for the MP connectors I agree, bolting those in isn't as strong. But that doesn't mean they couldn't be with an improved design.



Making the structure more rigid can actually increase the chances of cracking at the joints/seams. You have to look at how much the metal flexes over the length of the chassis under the loads it will experience. Too much flex can cause cracking from overwork, but too little flex can cause cracking by concentrating more load than the base metal can withstand. Two very different processes, but the result will still just look like a crack to the naked eye. The amount of flex and load has to be matched to the capability of the material used to build the structure.



This is false reasoning. Bolts are used in structural engineering because of their load bearing properties, not because anyone is going to disassemble a bridge or skyscraper. That stuff gets taken apart by explosive demolition, so why isn't it welded? Because of the structural properties needed for the joints, that's why.

Yeah sure, in the automotive world stuff gets bolted together so it can be taken apart and serviced, but that is definitely not the only reason. The entire chassis on one of these unibody cars could be riveted together, and very likely with little to no difference in strength if done right. But they're not, and being able to take it apart has nothing to do with that decision. The factory does things for a lot of reasons besides what's best, what's strongest, etc. and that usually comes down to cost.
Fords fullsize pickups are aluminum bodied, and glued and riveted together, but that doesnt make them better either.

No one is arguing against welding them in, you took something I said a couple of years ago that was a reply to god knows who and disagreed, fine, then you had to do an even more elaborate disagreement so I replied with a fact, not an endorsement. Again no one is not saying to bolt them in instead of welding but if done right you could.

Last edited:
I’m not a welder or fabricator and I did my own 1 1/2 X 3 or was it 2 1/2 ; the width of rear frame. It turned out pretty good. Look at how I extended the square tube bottom on the front and back and welded that in for extra strength. I’m sure there is a lot better ones here from other members but this was easy and didn’t mess with interior.




SO allow me to spell it out. When I said "best", I simply meant that the best way to add frame connectors IS to tie them into the floor system. I was not talking about which way of doing THAT was BEST. Are we clear now?

How do you know? You have empirical evidence of how much the chassis is stiffened with either tubular subframe connectors tied to the rails and crossmember or the open sheet metal connectors welded to the floor? Because if you don't have data, you've got no clue which is "best".

Fords fullsize pickups are aluminum bodied, and glued and riveted together, but that doesnt make them better either.

Better than what? They're stiffer than these cars are, not a single doubt about that. Does that make them better trucks than the competition? Maybe not, but again, what exactly are we comparing? They have better payload capacities because they weigh less. They certainly dent more easily. Pros and cons, "better" is a very subjective term.

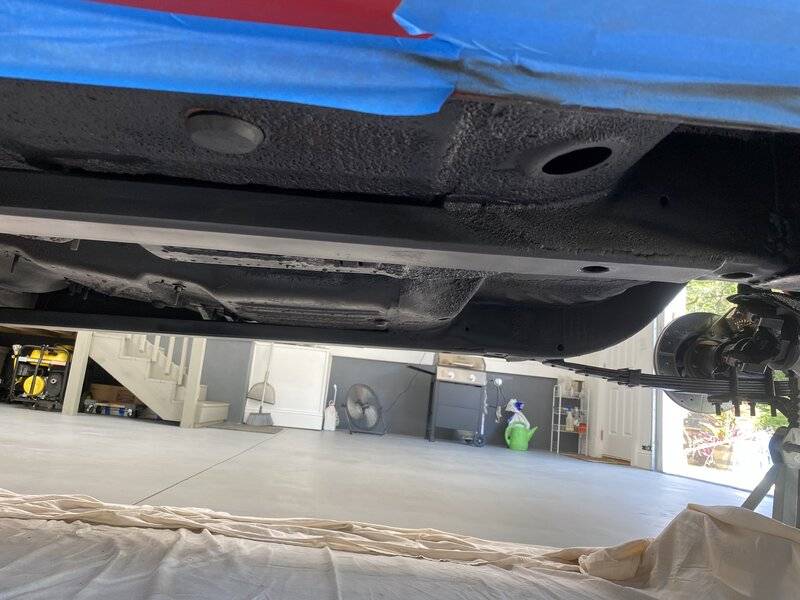

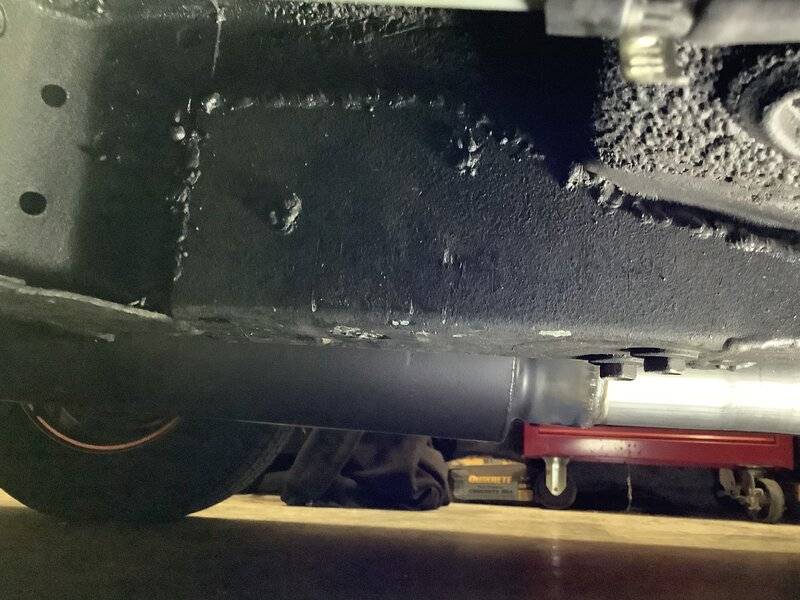

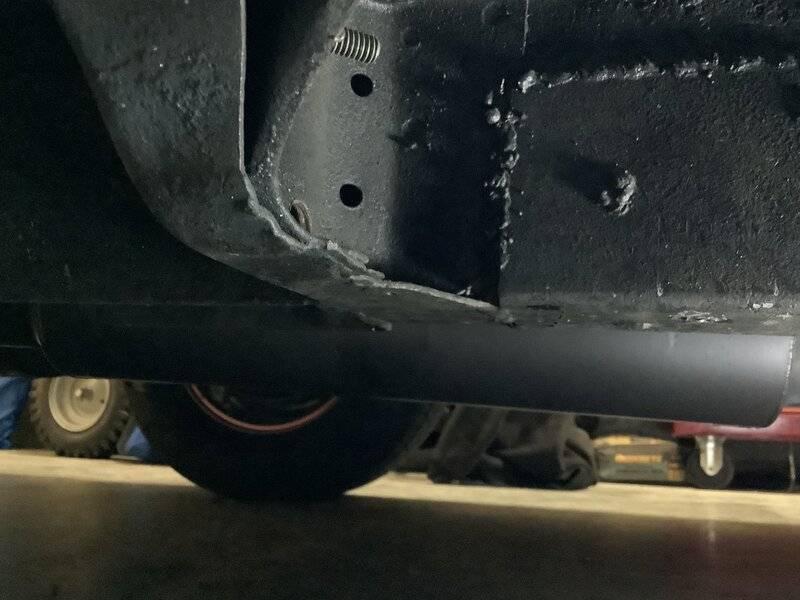

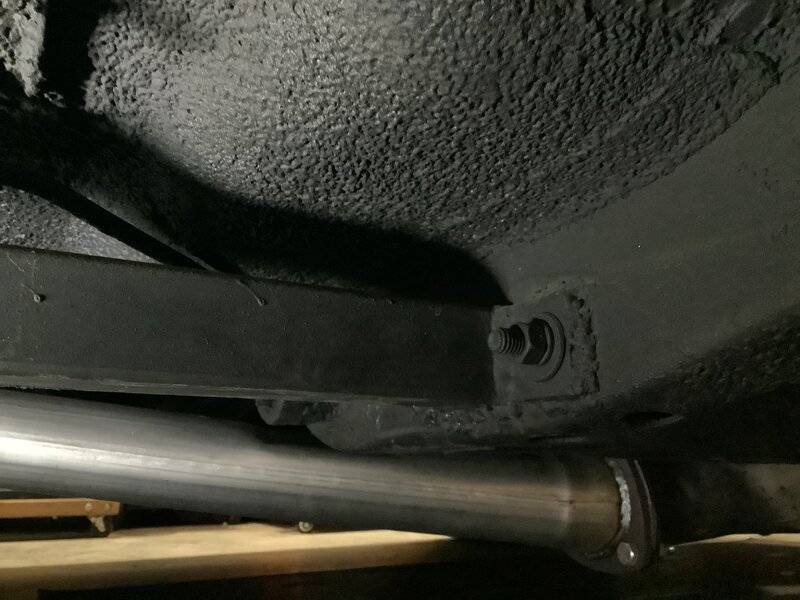

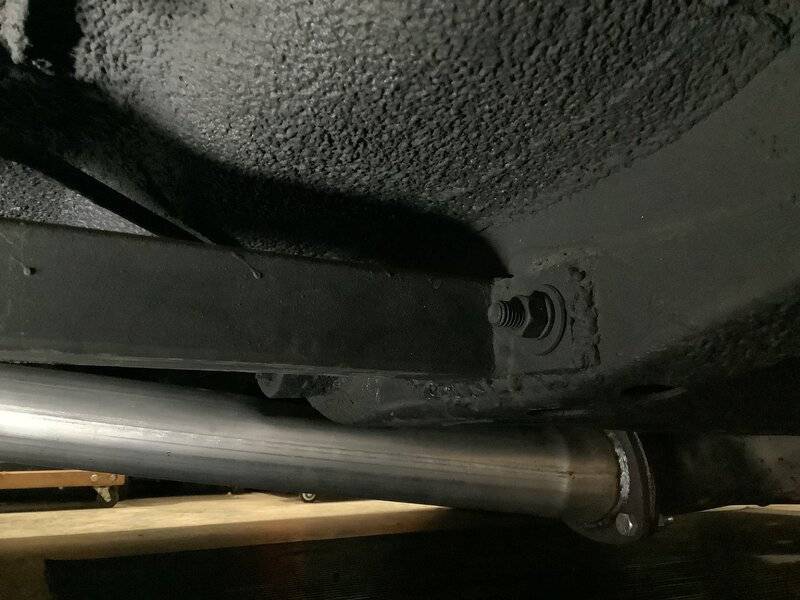

I’m not a welder or fabricator and I did my own 1 1/2 X 3 or was it 2 1/2 ; the width of rear frame. It turned out pretty good. Look at how I extended the square tube bottom on the front and back and welded that in for extra strength. I’m sure there is a lot better ones here from other members but this was easy and didn’t mess with interior.

View attachment 1716305800

View attachment 1716305801
Beautiful job. Will last a long time

I have the Hotchkis connectors, they can be welded in without pulling the interior, I did it that way. They have some angles cut in them so there is no offset from the front subframe to where the front point is welded in and they have brackets to spread out the load, a good design practice.

The car will rattle less with connectors. My opinion its one of the must haves for these cars. The USCT ones I wouldn't spend the time on at all. It's even more wild when you see how much people care about this vs that on that and will absolutely whack the torsion bar crossmember out for a transmission and put a piece of bar stock in there. I like beefy stuff, the Hotchkis are good for their purpose, very light also, but you won't be able to jack the car up in the middle of them due to the wall thickness.

The bolt connectors would be quite bad without spacers to hold the frame rail from crushing.

How do you know? You have empirical evidence of how much the chassis is stiffened with either tubular subframe connectors tied to the rails and crossmember or the open sheet metal connectors welded to the floor? Because if you don't have data, you've got no clue which is "best".



Better than what? They're stiffer than these cars are, not a single doubt about that. Does that make them better trucks than the competition? Maybe not, but again, what exactly are we comparing? They have better payload capacities because they weigh less. They certainly dent more easily. Pros and cons, "better" is a very subjective term.
Cause I said so. lol

I have seen where there were small "flex" indications
Yes, it was on a high HP car

Too late.

I just got done doing 2x3 tubing sub-frame connectors on my '73. Slotted the floor and welded them solid. Well, I slotted the floor but in the interest of time I had a buddy weld them solid. He did it all in about 4 hours (sub-frames connectors and front/rear torque boxes) while it would have taken me 24 hours to get it done.

I debated about how I wanted to do them for some time, but in the end I liked the idea of the diaphragm action the floor would give them so I decided to do it the hard way. With no definitive testing to say one way or the other, it was the way I felt best about doing them.

I basically copied @moparmat2000, except I didn't slot the rear sheet metal where there were multiple pieces coming together. I do have some work to do there to finish things on top, but that can come later.





Welding them to the floor is not necessary. And, unless someone shows me an actual structural analysis of the chassis I think that saying one style of connector is better than another is a total guess. I used 1.5"x3" tubing, the benefit to that vs 2x3" is that it stays flush to the floor and the frame rails. With 2x3" it either hangs down further than the frame rails or has to be cut into the floor.

I've installed both the US Cartool style that weld completely to the floor and I've made my own. Making your own out of rectangular tubing is MUCH easier than welding the US Cartool style to the floor, there's no way I'd do that again without putting the car on a rotisserie. And the tubular style do make a significant difference in chassis flex.

Here's my install of the tubular style
My "new" '74 Duster- or why I need a project like a hole in the head

View attachment 1715841260

View attachment 1715841261

View attachment 1715841262
Just a bookmark

Nice work

To answer the qu3stion posed..... no
My opinion only. Op specified CRUISER. I don't believe floor welding is necessary for a cruiser.
Mine are not welded to the floor, as such. They ARE welded to an outrigger to the rocker, and to the rollbar. A bit more serious than a cruiser however.

-
