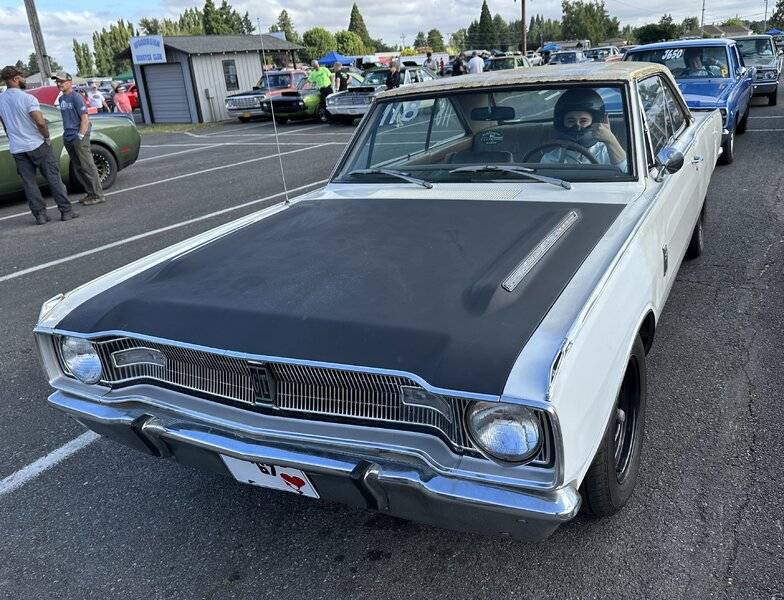

Junior is doing well. Not much different since last post.
This was at work the other day.
This was at work the other day.
Project`67 Dart GT 340 A500
- Thread starter Junior340
- Start date
-
Good to hear Junior is hanging in there.
This repair didn't last very long. HAHA I tried.
Did you add a small piece of wire across your gaps, or just a solder bridge?
Just solder, is that where I went wrong?
Can't really say its wrong, but I probably would have laid a small jumper wire in the solder puddle. Probably the biggest thing you are fighting is making sure the copper trace on the board is really clean.
Don't know or presume to know your soldering skills, but most people grasp the heat concept, but not necessarily the cleanliness. A good clean iron tip that is pre-tinned with fresh solder is just as important as clean connections. Having anything "dirty" makes it take longer before the solder "flows" properly thereby increasing the risk of heat damage to circuit traces, glue, or components.
Don't know or presume to know your soldering skills, but most people grasp the heat concept, but not necessarily the cleanliness. A good clean iron tip that is pre-tinned with fresh solder is just as important as clean connections. Having anything "dirty" makes it take longer before the solder "flows" properly thereby increasing the risk of heat damage to circuit traces, glue, or components.
moparmat2000
Well-Known Member
Add a small piece of wire as a jumper. Just a solder tracing is not strong enough
I did add wire to the repair (don't remember doing that). Tested all the circuits, all are good but some of the pins were loose so I carefully swedged them. Devin suggested a ground issue, I bet he is correct. I will check that out next when it isn't a billion degrees out.
I followed the manual and the original voltage limiter did not pass the bench test last night so I ordered a new one. But I think I have a NOS one stashed away still digging.
Try it out tomorrow. All test ok.
If you see a large mushroom cloud, it was Junior.
If you see a large mushroom cloud, it was Junior.
Devinism
Member
Hi Andy
By saying "grounding issue" I mean something is grounding on that electrical circuit that shouldn't. Wires rubbing through somewhere, bulkhead issues, fuse box issues etc. The circuit board 'ribbon' is probably just the weakest link.
Happy hunting, and please..... no mushroom clouds!!!
Thanks and I did understand that right from your tx. I'm double checking all of that with my power probe as I go before plugging instruments back in.
My next project is this rear seat, think it's due?
-
